SAF57R17DRS71M4Detailed Information
Keywords: 5. 5 kw power with what size of a recoiler_saf57r17drrs71m4_saf57r17dt63m4
SAF57R17DRS71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF57R17DRS71M4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SAF57R17DRS71M4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SAF57R17DRS71M4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SAF57R17DRS71M4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SAF57R17DRS71M4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SAF57R17DRS71M4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SAF57R17DRS71M4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SAF57R17DT63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF57R17DT63M4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SAF57R17DT63M4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SAF57R17DT63M4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SAF57R17DT63M4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SAF57R17DT63M4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SAF57R17DT63M4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SAF57R17DT63M4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SAF57R17DT63M4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
Saf57r17drs71m4 motor deceleratorType:
S57r17drs71m4 foot installation - slash gearServo motor reducer
Sa57r17drrs71m4 sky axis installation - tilt snail snail deviator
Saf57r17drrs71m4 is a b5 installation-slash snail snail decelerator
Saz57r17drs71m4 is thereducing machine for the b14 aerocentric axle snail
Sf57r17drs71m4 is a b5-slough snail deviator
Sh57r17drs71m4 is an empty axle lock-drive installation -- a snail-slasher
Shf57r17drrs71m4 is a b5 franium axle locker installation - a snail braker
Shz57r17drs71m4 is a b14 flannel axle locker installation - a sledge snail brake
Sa57/tr17drs71m4 rotation arm hollow axis installation -- scalding snails
Sh57/tr17drs71m4 is an axle lock-drive installation for a sledge snail
Sa57br17drrs71m4 foot hollow axis installation -- snail snail snail brake
Sh57br17drrs71m4 bottom foot hollow axle lock-board installation -- snail snail brakes
St57r17drrs71m4 solid axle output twirl arm installation -- slough snail brakes

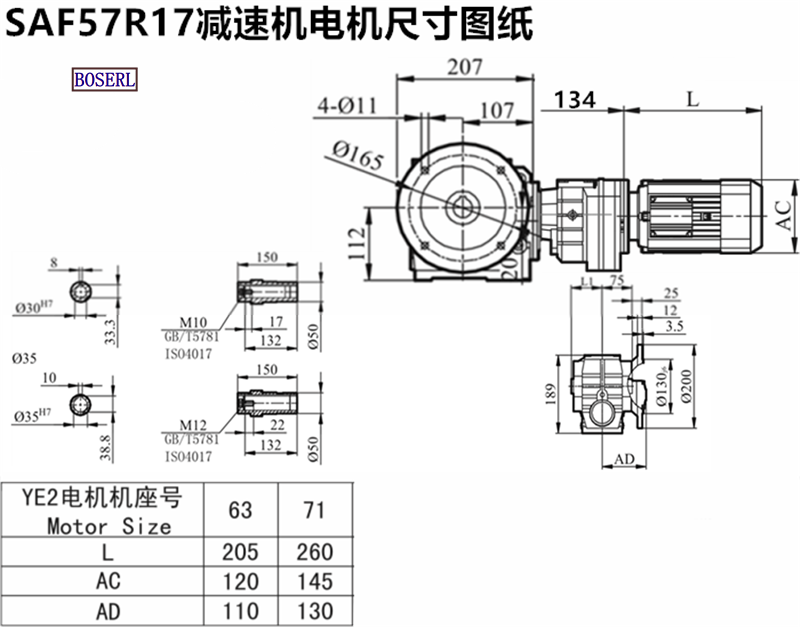

Saf57r17drs71m4 motor deceleratorInstall size drawings
Saf57r17drs71m4 motor deceleratorProduction plant display: three days' appointment for the factoryGearbox motor
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
