SAF57R17DT71D4Detailed Information
Keywords: 2. 2kw electric power to what size of a recoiler_saf57r17dt71d4_saf57r17dr63ms4
SAF57R17DT71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF57R17DT71D4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SAF57R17DT71D4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SAF57R17DT71D4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SAF57R17DT71D4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SAF57R17DT71D4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SAF57R17DT71D4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SAF57R17DT71D4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SAF57R17DR63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF57R17DR63MS4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SAF57R17DR63MS4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SAF57R17DR63MS4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SAF57R17DR63MS4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SAF57R17DR63MS4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SAF57R17DR63MS4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SAF57R17DR63MS4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SAF57R17DR63MS4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
Saf57r17dt71d4 deviatorsType:
S57r17dt71d4 foot installation - slash gearServo motor reducer
Sa57r17dt71d4 sky axis installation - tilt snail strawling
Saf57r17dt71d4 is a b5 installation-slash snail brake
Saz57r17dt71d4 is thereducing machine for the b14 aerocentric axle snail
Sf57r17dt71d4 is thereducing machine for the b5 solid core snail
Sh57r17dt71d4 is an empty axle lock-drive installation -- a snail-slasher
Shf57r17dt71d4 is a b5 franium axle locker installation - a snail braker
Shz57r17dt71d4 is a b14 flannel axle lock-drive installation - a snail brake
Sa57/tr17dt71d4 rotation arm hollow axis installation -- scalding snails
Sh57/tr17dt71d4 is an empty axle lock-drive installation for snail snail brakes
Sa57br17dt71d4 foot hollow axle installation -- snail snail brakes
Sh57br17dt71d4 foot hollow axle lock-drive installation -- snail snail brake
St57r17dt71d4 solid axis export twirl arm installation - tilt snail snail stifler

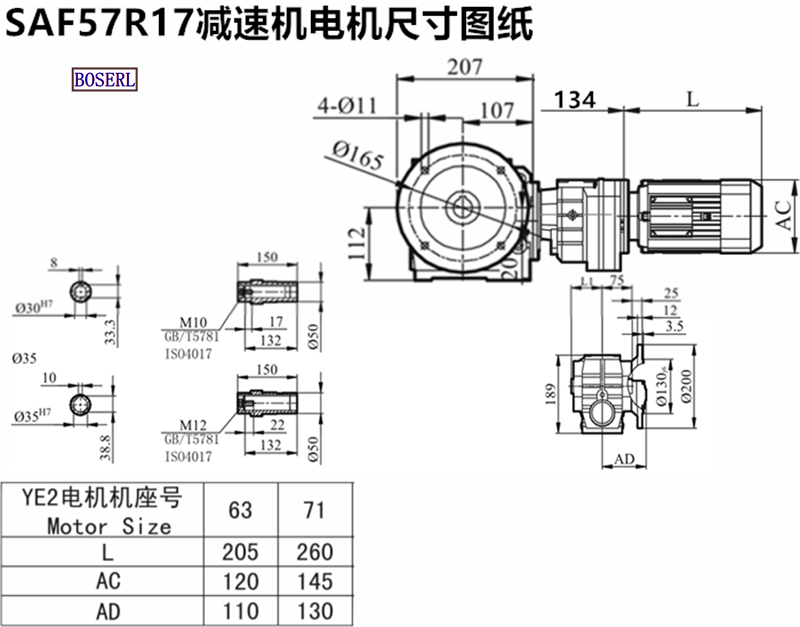

Saf57r17dt71d4 deviatorsInstall size drawings
Saf57r17dt71d4 deviatorsProduction plant display: three days' appointment for the factoryGearbox motor
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
