SAF57R17DT71MS4Detailed Information
Keywords: 110 kw power with what size of a recoiler_saf57r17dt71ms4_saf57r17dr63s4
SAF57R17DT71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF57R17DT71MS4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SAF57R17DT71MS4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SAF57R17DT71MS4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SAF57R17DT71MS4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SAF57R17DT71MS4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SAF57R17DT71MS4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SAF57R17DT71MS4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SAF57R17DR63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF57R17DR63S4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SAF57R17DR63S4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SAF57R17DR63S4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SAF57R17DR63S4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SAF57R17DR63S4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SAF57R17DR63S4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SAF57R17DR63S4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SAF57R17DR63S4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
Saf57r17dt71ms4 deviatorsType:
S57r17dt71ms4 foot installation -- slash gearServo motor reducer
Sa57r17dt71ms4 sky axis installation - tilt snail snail deviator
Saf57r17dt71ms4 is a flange b5 installation-slash snail brake
Saz57r17dt71ms4 is thereducing machine for the b14 aerocentric axle snail
Sf57r17dt71ms4 is thereducing machine for the b5 snails
Sh57r17dt71ms4 is an empty axle lock-drive installation - a snail-slasher
Shf57r17dt71ms4 is a flang axle lock-drive installation of b5-slash snail snail brakes
Shz57r17dt71ms4 is a b14 flannel axle locker installation - a sledge snail brake
Sa57/tr17dt71ms4 rotating arm hollow axis installation -- scalding snails
Sh57/tr17dt71ms4 is an empty axle lock-drive installation for snail snails with tilt gear
Sa57br17dt71ms4 foot hollow axle installation -- snail snail brakes
Sh57br17dt71ms4 foot hollow axle lock-drive installation - snail brakes
St57r17dt71ms4 solid axis output twirl arm installation - scal snail brakes

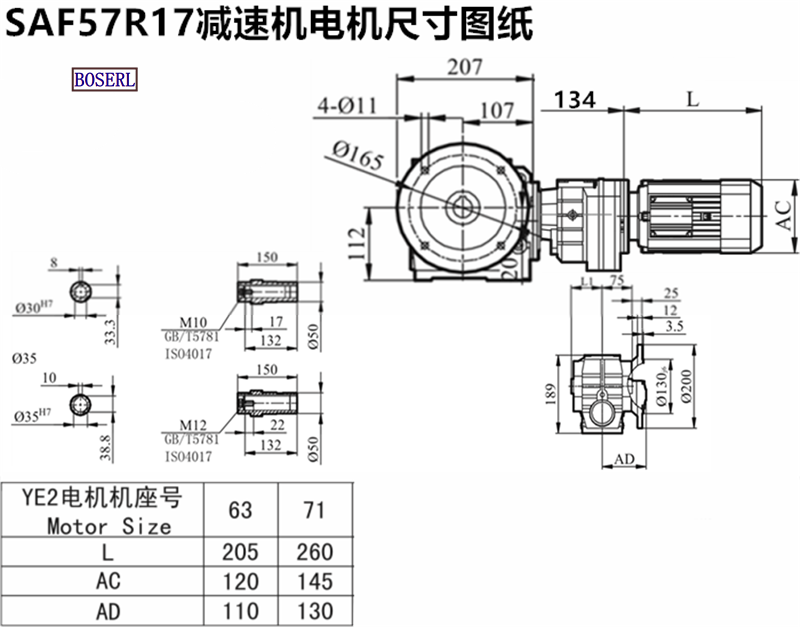

Saf57r17dt71ms4 deviatorsInstall size drawings
Saf57r17dt71ms4 deviatorsProduction plant display: three days' appointment for the factoryGearbox motor
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
