SAF67DT100L4Detailed Information

prevnext

SAF67DT100L4

TEL：Email:[email protected]

详细信息

Keywords: 7. 5 kilowatt brake-retarder unit _saf67dt100l4_saf67dv100ls4

SAF67DT100L4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SAF67DT100L4	34.80	3KW	42.0rpm	570N.m	61kg	6350N	0.85
SAF67DT100L4	29.63	3KW	49.0rpm	490N.m	61kg	6340N	1.00
SAF67DT100L4	26.93	3KW	54.0rpm	445N.m	61kg	6320N	1.05
SAF67DT100L4	23.33	3KW	62.0rpm	390N.m	61kg	6250N	1.25
SAF67DT100L4	20.37	3KW	71.0rpm	360N.m	61kg	5240N	0.95
SAF67DT100L4	17.28	3KW	84.0rpm	305N.m	61kg	5250N	1.10
SAF67DT100L4	15.60	3KW	93.0rpm	275N.m	61kg	5230N	1.20
SAF67DT100L4	13.73	3KW	106rpm	245N.m	61kg	5190N	1.40
SAF67DT100L4	12.96	3KW	112rpm	230N.m	61kg	5170N	1.45
SAF67DT100L4	11.03	3KW	132rpm	199N.m	61kg	5080N	1.70
SAF67DT100L4	10.03	3KW	145rpm	181N.m	61kg	5020N	1.90
SAF67DT100L4	8.69	3KW	167rpm	157N.m	61kg	4910N	2.10
SAF67DT100L4	7.56	3KW	192rpm	137N.m	61kg	4800N	2.20

SAF67DV100LS4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SAF67DV100LS4	46.40	2.2KW	31.0rpm	560N.m	58kg	7470N	0.85
SAF67DV100LS4	41.89	2.2KW	34.0rpm	510N.m	58kg	7430N	0.95
SAF67DV100LS4	36.85	2.2KW	39.0rpm	450N.m	58kg	7350N	1.05
SAF67DV100LS4	34.80	2.2KW	41.0rpm	425N.m	58kg	7310N	1.10
SAF67DV100LS4	29.63	2.2KW	48.0rpm	365N.m	58kg	7170N	1.30
SAF67DV100LS4	26.93	2.2KW	53.0rpm	335N.m	58kg	7070N	1.45
SAF67DV100LS4	23.33	2.2KW	61.0rpm	290N.m	58kg	6910N	1.65
SAF67DV100LS4	20.37	2.2KW	70.0rpm	270N.m	58kg	6060N	1.25
SAF67DV100LS4	17.28	2.2KW	82.0rpm	230N.m	58kg	5950N	1.50
SAF67DV100LS4	15.60	2.2KW	91.0rpm	205N.m	58kg	5870N	1.65
SAF67DV100LS4	13.73	2.2KW	104rpm	184N.m	58kg	5760N	1.85
SAF67DV100LS4	12.96	2.2KW	110rpm	174N.m	58kg	5700N	1.95
SAF67DV100LS4	11.03	2.2KW	129rpm	149N.m	58kg	5540N	2.30
SAF67DV100LS4	10.03	2.2KW	142rpm	136N.m	58kg	5440N	2.50
SAF67DV100LS4	8.69	2.2KW	164rpm	118N.m	58kg	5280N	2.80

Saf67dt100l4 power driveType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

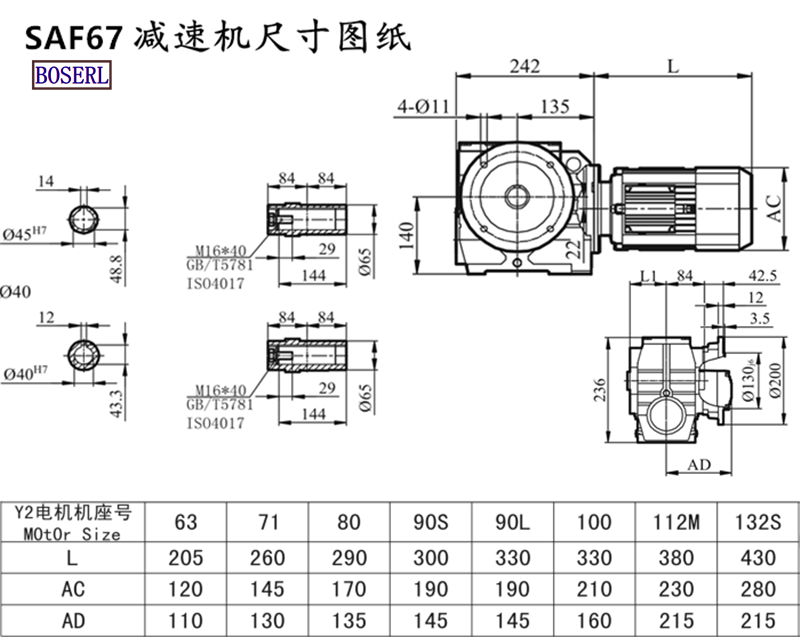

Saf67dt100l4 power driveInstall size drawings

wireless image_2020525095000.png

Saf67dt100l4 power driveProduction plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
