SAF67R37DM80K4Detailed Information
Keywords: 1. 1 kw power with a veloctive reduction machine_ saf67r37dm80k4_saf67r37drrs63ms4
SAF67R37DM80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF67R37DM80K4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| SAF67R37DM80K4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| SAF67R37DM80K4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| SAF67R37DM80K4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |
SAF67R37DRS63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF67R37DRS63MS4 | 1194 | 0.12KW | 1.20r/min | 585N.m | 40kg | 7990N | 0.95 |
| SAF67R37DRS63MS4 | 1045 | 0.12KW | 1.30r/min | 530N.m | 40kg | 8560N | 1.05 |
| SAF67R37DRS63MS4 | 914 | 0.12KW | 1.50r/min | 455N.m | 40kg | 9180N | 1.25 |
| SAF67R37DRS63MS4 | 809 | 0.12KW | 1.70r/min | 415N.m | 40kg | 9460N | 1.35 |
| SAF67R37DRS63MS4 | 712 | 0.12KW | 1.90r/min | 365N.m | 40kg | 9780N | 1.55 |
| SAF67R37DRS63MS4 | 615 | 0.12KW | 2.20r/min | 305N.m | 40kg | 10100N | 1.85 |
| SAF67R37DRS63MS4 | 543 | 0.12KW | 2.50r/min | 275N.m | 40kg | 10200N | 2.10 |
| SAF67R37DRS63MS4 | 469 | 0.12KW | 2.90r/min | 225N.m | 40kg | 10400N | 2.50 |
| SAF67R37DRS63MS4 | 424 | 0.12KW | 3.30r/min | 200N.m | 40kg | 10500N | 2.80 |
| SAF67R37DRS63MS4 | 365 | 0.12KW | 3.80r/min | 187N.m | 40kg | 10500N | 3.00 |
Saf67r37dm80k4 deviatorsType:
S67r37dm80k4 bottom foot installation - tilt gearServo motor reducer
Sa67r37dm80k4 sky axis installation - tilt snail snail deviator
Saf67r37dm80k4 is areducing machine for b5 installation snails
Saz67r37dm80k4 is thereducing machine for the b14 aerocentric axle snail
Sf67r37dm80k4 is the b5-silver snail deviator
Sh67r37dm80k4 is an empty axle locker installation - a snail-slasher
Shf67r37dm80k4 is a b5 franium axle lock-drive installation - a snail brake
Shz67r37dm80k4 is a b14 flannel axle locker installation - a sledge snail brake
Sa67/tr37dm80k4 rotation arm hollow axis installation -- slough snail brakes
Sh67/tr37dm80k4 is an axle lock-drive installation for a sledge snail
Sa67br37dm80k bottom foot hollow axis installation -- snail snail brakes
Sh67br37dm80k bottom foot axle lock-board installation -- snail snail brake
St67r37dm80k4 solid axe output twister arm installation -- slough snail brake

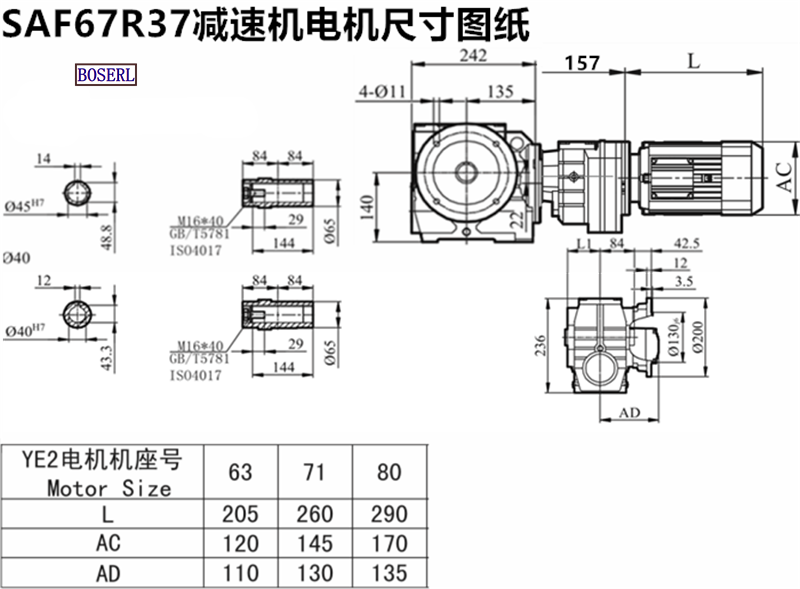

Saf67r37dm80k4 deviatorsInstall size drawings
Saf67r37dm80k4 deviatorsProduction plant display: three days' appointment for the factoryGearbox motor
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: 1. 1 the size of the kw power plant with a pv saf67r37dm80k4sasaf67r37drs63ms4
- 上一条SAF67R37DM80S4
- 下一条SAF67R37DM71S4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SAF67R37DM80K4减速机样本 |
|
| SAF67R37DM80K4减速机三维图纸 |
|
