SAF67R37DV63S4Detailed Information
Keywords: 18. 5 kw power with a type-of-the-horizon decelerator _ saf67r37dv63s4_saf67r37dre71ms4
SAF67R37DV63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF67R37DV63S4 | 1194 | 0.12KW | 1.20r/min | 585N.m | 40kg | 7990N | 0.95 |
| SAF67R37DV63S4 | 1045 | 0.12KW | 1.30r/min | 530N.m | 40kg | 8560N | 1.05 |
| SAF67R37DV63S4 | 914 | 0.12KW | 1.50r/min | 455N.m | 40kg | 9180N | 1.25 |
| SAF67R37DV63S4 | 809 | 0.12KW | 1.70r/min | 415N.m | 40kg | 9460N | 1.35 |
| SAF67R37DV63S4 | 712 | 0.12KW | 1.90r/min | 365N.m | 40kg | 9780N | 1.55 |
| SAF67R37DV63S4 | 615 | 0.12KW | 2.20r/min | 305N.m | 40kg | 10100N | 1.85 |
| SAF67R37DV63S4 | 543 | 0.12KW | 2.50r/min | 275N.m | 40kg | 10200N | 2.10 |
| SAF67R37DV63S4 | 469 | 0.12KW | 2.90r/min | 225N.m | 40kg | 10400N | 2.50 |
| SAF67R37DV63S4 | 424 | 0.12KW | 3.30r/min | 200N.m | 40kg | 10500N | 2.80 |
| SAF67R37DV63S4 | 365 | 0.12KW | 3.80r/min | 187N.m | 40kg | 10500N | 3.00 |
SAF67R37DRE71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF67R37DRE71MS4 | 543 | 0.25KW | 2.40r/min | 650N.m | 44.5kg | 6280N | 0.85 |
| SAF67R37DRE71MS4 | 469 | 0.25KW | 2.80r/min | 550N.m | 44.5kg | 8390N | 1.05 |
| SAF67R37DRE71MS4 | 424 | 0.25KW | 3.10r/min | 495N.m | 44.5kg | 8880N | 1.15 |
| SAF67R37DRE71MS4 | 365 | 0.25KW | 3.60r/min | 440N.m | 44.5kg | 9320N | 1.30 |
| SAF67R37DRE71MS4 | 319 | 0.25KW | 4.10r/min | 380N.m | 44.5kg | 9700N | 1.50 |
| SAF67R37DRE71MS4 | 281 | 0.25KW | 4.60r/min | 335N.m | 44.5kg | 9960N | 1.70 |
Saf67r37dv63s4 motor deceleratorType:
S67r37dv63s4 foot installation -- slash gearServo motor reducer
Sa67r37dv63s4 sky axis installation -- snail snail brake machine
Saf67r37dv63s4 is areducing machine for b5 installation snails
Saz67r37dv63s4 is thereducing machine for the b14 aerocentric axle snail
Sf67r37dv63s4 is thereducing machine for snail snails with a b5 solid core
Sh67r37dv63s4 is an empty axle lock-drive installation - a snail brake
Shf67r37dv63s4 is a b5 franium axle locker installation - a snail-slasher
Shz67r37dv63s4 is a b14 franium axle locker installation - a snail braker
Sa67/tr37dv63s4 rotation arm hollow axis installation -- slough snail brakes
Sh67/tr37dv63s4 is an axle lock-drive installation for a snail snail
Sa67br37dv63s4 foot hollow axis installation -- snail snail snail brake
Sh67br37dv63s4 foot hollow axle lock-drive installation -- snail brake
St67r37dv63s4 solid axis output twister arm installation -- scald snail brakes

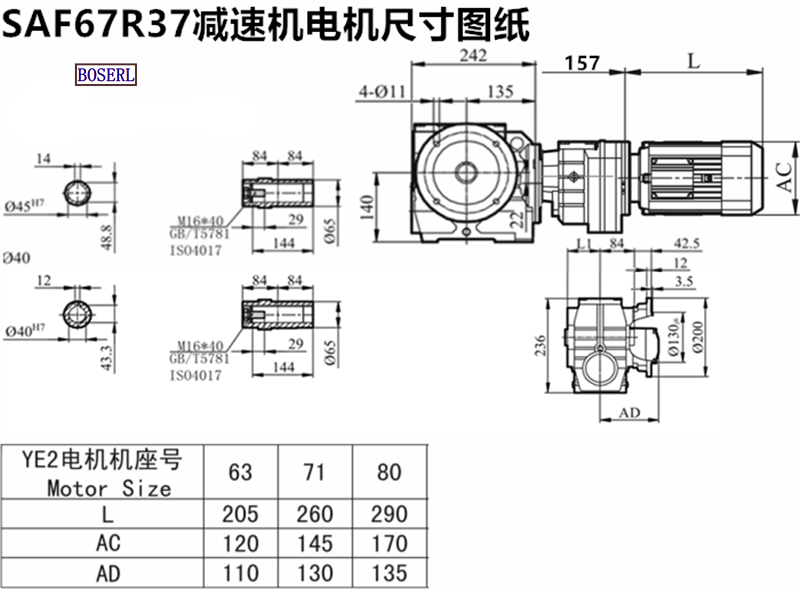

Saf67r37dv63s4 motor deceleratorInstall size drawings
Saf67r37dv63s4 motor deceleratorProduction plant display: three days' appointment for the factoryGearbox motor
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: 18. 5 kw power power to what extent is a rectangular decelerator saf67r37dv63s4sasaf67r37dre71ms4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SAF67R37DV63S4减速机样本 |
|
| SAF67R37DV63S4减速机三维图纸 |
|
