SAF77DRE80N4Detailed Information
Keyword: 0. 37 kilowatt brakes, motor-reducing unit _ saf77dre80n4_saf77drn80k4
SAF77DRE80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF77DRE80N4 | 256.47 | 0.75KW | 5.60rpm | 850N.m | 66kg | 14600N | 1.50 |
| SAF77DRE80N4 | 225.26 | 0.75KW | 6.40rpm | 760N.m | 66kg | 15100N | 1.65 |
| SAF77DRE80N4 | 214.00 | 0.75KW | 6.70rpm | 730N.m | 66kg | 15200N | 1.75 |
| SAF77DRE80N4 | 189.09 | 0.75KW | 7.60rpm | 650N.m | 66kg | 15500N | 1.95 |
| SAF77DRE80N4 | 161.60 | 0.75KW | 8.90rpm | 565N.m | 66kg | 15800N | 2.20 |
| SAF77DRE80N4 | 148.15 | 0.75KW | 9.70rpm | 520N.m | 66kg | 16000N | 2.40 |
| SAF77DRE80N4 | 130.00 | 0.75KW | 11.0rpm | 460N.m | 66kg | 16000N | 2.60 |
| SAF77DRE80N4 | 123.20 | 0.75KW | 12.0rpm | 440N.m | 66kg | 16000N | 2.70 |
| SAF77DRE80N4 | 107.83 | 0.75KW | 13.0rpm | 390N.m | 66kg | 16000N | 3.00 |
SAF77DRN80K4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF77DRN80K4 | 256.47 | 0.55KW | 5.40rpm | 650N.m | 65kg | 15500N | 1.95 |
| SAF77DRN80K4 | 225.26 | 0.55KW | 6.10rpm | 580N.m | 65kg | 15800N | 2.20 |
| SAF77DRN80K4 | 214.00 | 0.55KW | 6.40rpm | 550N.m | 65kg | 15900N | 2.30 |
| SAF77DRN80K4 | 189.09 | 0.55KW | 7.30rpm | 495N.m | 65kg | 16000N | 2.60 |
Saf77dre80n4 gear deviator motorType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

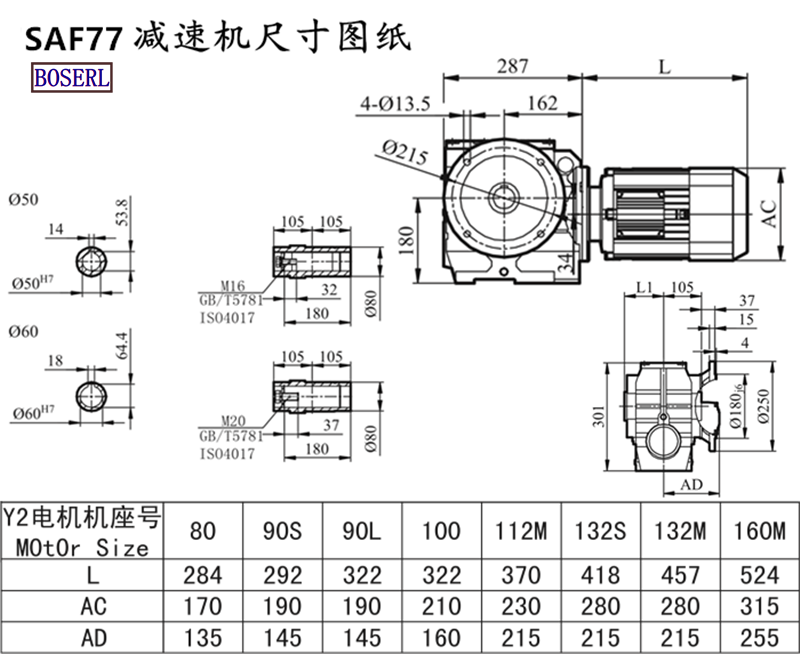

Saf77dre80n4 gear deviator motorInstall size drawings
Saf77dre80n4 gear deviator motorProduction plant display: three days' appointment for the factory
Gearbox motorPresentation of application cases:
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: 0. 37 kilowatt brakes, power-reducing unit saf77dre80n4 saf77drn80k4
- 上一条SAF77DRN80MK4
- 下一条SAF77DRE80K4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SAF77DRE80N4减速机样本 |
|
| SAF77DRE80N4减速机三维图纸 |
|
