Saf87 motor speed retarder

TEL：Email:[email protected]

详细信息

Keyword: saf87 emp_saf87y100m4_saf87y112m4_saf87 emp_saf87 esp manufacturer_saf87 emp

SAF87Y100M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SAF87Y100M4	180.00	3KW	8.10rpm	2600N.m	135kg	27300N	0.85
SAF87Y100M4	151.30	3KW	9.60rpm	2210N.m	135kg	28100N	0.95
SAF87Y100M4	139.05	3KW	10.0rpm	2050N.m	135kg	28400N	1.00
SAF87Y100M4	123.48	3KW	12.0rpm	1830N.m	135kg	28700N	1.10
SAF87Y100M4	110.40	3KW	13.0rpm	1650N.m	135kg	29000N	1.20
SAF87Y100M4	99.26	3KW	15.0rpm	1490N.m	135kg	29200N	1.30
SAF87Y100M4	86.15	3KW	17.0rpm	1310N.m	135kg	29400N	1.45
SAF87Y100M4	81.76	3KW	18.0rpm	1400N.m	135kg	29300N	1.15
SAF87Y100M4	77.14	3KW	19.0rpm	1180N.m	135kg	29500N	1.55
SAF87Y100M4	70.43	3KW	21.0rpm	1210N.m	135kg	29500N	1.30
SAF87Y100M4	64.27	3KW	23.0rpm	1110N.m	135kg	29600N	1.45
SAF87Y100M4	57.00	3KW	26.0rpm	990N.m	135kg	29700N	1.60
SAF87Y100M4	47.91	3KW	30.0rpm	830N.m	135kg	29800N	1.90
SAF87Y100M4	44.03	3KW	33.0rpm	770N.m	135kg	29900N	2.10
SAF87Y100M4	39.10	3KW	37.0rpm	685N.m	135kg	29900N	2.30
SAF87Y100M4	34.96	3KW	42.0rpm	615N.m	135kg	29900N	2.60

SAF87Y112M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SAF87Y112M4	123.48	4KW	12.0rpm	2440N.m	146kg	27600N	0.85
SAF87Y112M4	110.40	4KW	13.0rpm	2200N.m	146kg	28100N	0.90
SAF87Y112M4	99.26	4KW	15.0rpm	1990N.m	146kg	28500N	1.00
SAF87Y112M4	86.15	4KW	17.0rpm	1740N.m	146kg	28800N	1.10
SAF87Y112M4	77.14	4KW	19.0rpm	1570N.m	146kg	29100N	1.15
SAF87Y112M4	70.43	4KW	21.0rpm	1610N.m	146kg	29000N	1.00
SAF87Y112M4	64.27	4KW	23.0rpm	1480N.m	146kg	29200N	1.10
SAF87Y112M4	57.00	4KW	26.0rpm	1310N.m	146kg	29400N	1.20
SAF87Y112M4	47.91	4KW	30.0rpm	1110N.m	146kg	29600N	1.45
SAF87Y112M4	44.03	4KW	33.0rpm	1020N.m	146kg	29700N	1.55
SAF87Y112M4	39.10	4KW	37.0rpm	910N.m	146kg	29700N	1.75
SAF87Y112M4	34.96	4KW	42.0rpm	820N.m	146kg	29700N	1.95
SAF87Y112M4	31.43	4KW	46.0rpm	740N.m	146kg	28900N	2.20
SAF87Y112M4	27.28	4KW	54.0rpm	645N.m	146kg	28000N	2.50
SAF87Y112M4	25.50	4KW	57.0rpm	615N.m	146kg	26400N	2.00

Saf87 motor retarderType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

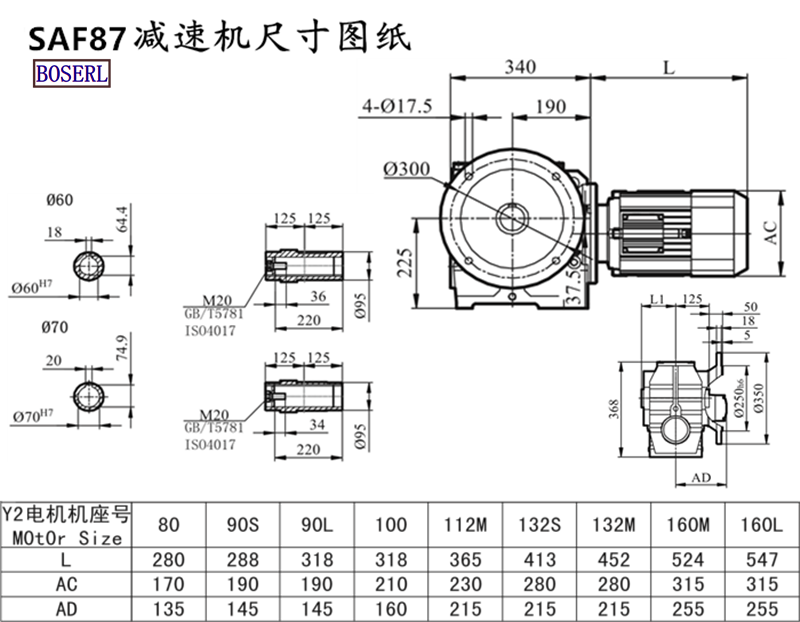

Saf87 motor retarderInstall size drawings

wireless image_2020525095000.png

Saf87 motor retarderProduction plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
