5. 5 kilowatt-beddler unit _saf87drs100lc4_boserl moving saf87drs100ls4 production plant

SAF87DRS100LC4Detailed Information

prevnext

SAF87DRS100LC4

TEL：Email:[email protected]

详细信息

Keywords: 5. 5 kilowatt-beddler unit _saf87drs100lc4_saf87drrs100ls4

SAF87DRS100LC4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SAF87DRS100LC4	180.00	3KW	8.10rpm	2600N.m	135kg	27300N	0.85
SAF87DRS100LC4	151.30	3KW	9.60rpm	2210N.m	135kg	28100N	0.95
SAF87DRS100LC4	139.05	3KW	10.0rpm	2050N.m	135kg	28400N	1.00
SAF87DRS100LC4	123.48	3KW	12.0rpm	1830N.m	135kg	28700N	1.10
SAF87DRS100LC4	110.40	3KW	13.0rpm	1650N.m	135kg	29000N	1.20
SAF87DRS100LC4	99.26	3KW	15.0rpm	1490N.m	135kg	29200N	1.30
SAF87DRS100LC4	86.15	3KW	17.0rpm	1310N.m	135kg	29400N	1.45
SAF87DRS100LC4	81.76	3KW	18.0rpm	1400N.m	135kg	29300N	1.15
SAF87DRS100LC4	77.14	3KW	19.0rpm	1180N.m	135kg	29500N	1.55
SAF87DRS100LC4	70.43	3KW	21.0rpm	1210N.m	135kg	29500N	1.30
SAF87DRS100LC4	64.27	3KW	23.0rpm	1110N.m	135kg	29600N	1.45
SAF87DRS100LC4	57.00	3KW	26.0rpm	990N.m	135kg	29700N	1.60
SAF87DRS100LC4	47.91	3KW	30.0rpm	830N.m	135kg	29800N	1.90
SAF87DRS100LC4	44.03	3KW	33.0rpm	770N.m	135kg	29900N	2.10
SAF87DRS100LC4	39.10	3KW	37.0rpm	685N.m	135kg	29900N	2.30
SAF87DRS100LC4	34.96	3KW	42.0rpm	615N.m	135kg	29900N	2.60

SAF87DRS100LS4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SAF87DRS100LS4	258.18	2.2KW	5.50rpm	2700N.m	132kg	27000N	0.85
SAF87DRS100LS4	222.40	2.2KW	6.40rpm	2360N.m	132kg	27800N	0.95
SAF87DRS100LS4	202.96	2.2KW	7.00rpm	2170N.m	132kg	28100N	1.05
SAF87DRS100LS4	180.00	2.2KW	7.90rpm	1940N.m	132kg	28500N	1.15
SAF87DRS100LS4	151.30	2.2KW	9.40rpm	1650N.m	132kg	29000N	1.30
SAF87DRS100LS4	139.05	2.2KW	10.0rpm	1530N.m	132kg	29100N	1.35
SAF87DRS100LS4	123.48	2.2KW	12.0rpm	1370N.m	132kg	29300N	1.50
SAF87DRS100LS4	110.40	2.2KW	13.0rpm	1230N.m	132kg	29500N	1.60
SAF87DRS100LS4	99.26	2.2KW	14.0rpm	1120N.m	132kg	29600N	1.75
SAF87DRS100LS4	86.15	2.2KW	17.0rpm	1050N.m	132kg	29700N	1.90
SAF87DRS100LS4	81.76	2.2KW	17.0rpm	980N.m	132kg	29600N	1.50
SAF87DRS100LS4	77.14	2.2KW	18.0rpm	910N.m	132kg	29800N	2.10
SAF87DRS100LS4	70.43	2.2KW	20.0rpm	880N.m	132kg	29800N	1.75
SAF87DRS100LS4	64.27	2.2KW	22.0rpm	830N.m	132kg	29800N	1.90
SAF87DRS100LS4	57.00	2.2KW	25.0rpm	740N.m	132kg	29900N	2.20

Saf87drs100lc4 deviatorType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

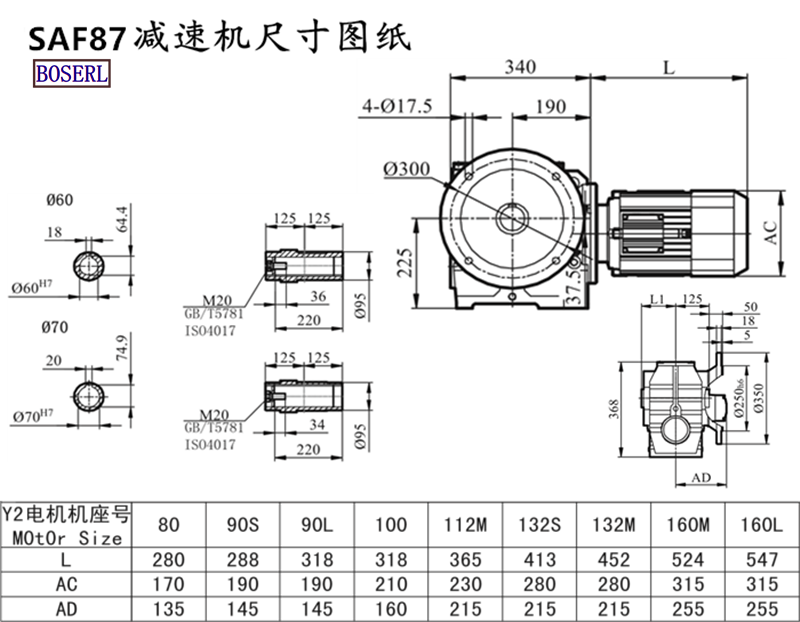

Saf87drs100lc4 deviatorInstall size drawings

wireless image_2020525095000.png

Saf87drs100lc4 deviatorProduction plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
