Saf 97 gear-down motorDetailed Information
Keyword: saf97 gear deviator motor_saf97y2. 2kw_saf97y3kw_saf97 gear deviator manufacturer_saf97 governer manufacturer_saf97 governer manufacturer
SAF97Y2.2KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF97Y2.2KW | 286.40 | 2.2KW | 5.00rpm | 3090N.m | 202Kg | 34800N | 1.30 |
| SAF97Y2.2KW | 262.22 | 2.2KW | 5.40rpm | 2850N.m | 202Kg | 35200N | 1.40 |
| SAF97Y2.2KW | 231.67 | 2.2KW | 6.20rpm | 2540N.m | 202Kg | 35600N | 1.55 |
| SAF97Y2.2KW | 196.52 | 2.2KW | 7.20rpm | 2180N.m | 202Kg | 36000N | 1.85 |
| SAF97Y2.2KW | 180.95 | 2.2KW | 7.90rpm | 2020N.m | 202Kg | 36100N | 1.95 |
| SAF97Y2.2KW | 161.74 | 2.2KW | 8.80rpm | 1820N.m | 202Kg | 36300N | 2.10 |
| SAF97Y2.2KW | 145.60 | 2.2KW | 9.80rpm | 1650N.m | 202Kg | 36500N | 2.20 |
| SAF97Y2.2KW | 131.85 | 2.2KW | 11.0rpm | 1500N.m | 202Kg | 36600N | 2.40 |
| SAF97Y2.2KW | 116.92 | 2.2KW | 12.0rpm | 1340N.m | 202Kg | 36700N | 2.60 |
| SAF97Y2.2KW | 105.71 | 2.2KW | 13.0rpm | 1220N.m | 202Kg | 36800N | 2.80 |
| SAF97Y2.2KW | 89.60 | 2.2KW | 16.0rpm | 1040N.m | 202Kg | 36900N | 3.10 |
SAF97Y3KWGeared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF97Y3KW | 286.40 | 3KW | 5.10rpm | 4140N.m | 205Kg | 32900N | 0.95 |
| SAF97Y3KW | 262.22 | 3KW | 5.60rpm | 3820N.m | 205Kg | 33600N | 1.05 |
| SAF97Y3KW | 231.67 | 3KW | 6.30rpm | 3410N.m | 205Kg | 34300N | 1.15 |
| SAF97Y3KW | 196.52 | 3KW | 7.40rpm | 2920N.m | 205Kg | 35100N | 1.35 |
| SAF97Y3KW | 180.95 | 3KW | 8.00rpm | 2710N.m | 205Kg | 35400N | 1.45 |
| SAF97Y3KW | 161.74 | 3KW | 9.00rpm | 2440N.m | 205Kg | 35700N | 1.55 |
| SAF97Y3KW | 145.60 | 3KW | 10.0rpm | 2210N.m | 205Kg | 36000N | 1.70 |
| SAF97Y3KW | 131.85 | 3KW | 11.0rpm | 2010N.m | 205Kg | 36200N | 1.80 |
| SAF97Y3KW | 116.92 | 3KW | 12.0rpm | 1800N.m | 205Kg | 36300N | 1.95 |
| SAF97Y3KW | 105.71 | 3KW | 14.0rpm | 1630N.m | 205Kg | 36500N | 2.10 |
| SAF97Y3KW | 89.60 | 3KW | 16.0rpm | 1390N.m | 205Kg | 36700N | 2.30 |
| SAF97Y3KW | 80.85 | 3KW | 18.0rpm | 1410N.m | 205Kg | 36600N | 2.30 |
Saf 97 gear-down motorType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

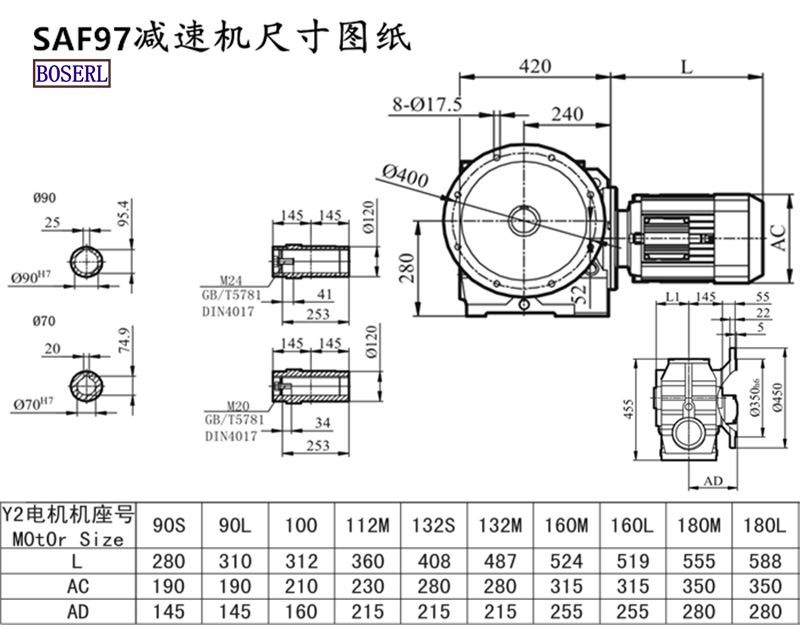

Saf 97 gear-down motorInstall size drawings
Saf 97 gear-down motorProduction plant display: three days' appointment for the factory
Gearbox motorPresentation of application cases:
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: Saf97 gear-reducing motor, saf97y2. 2kw, saf97y3kw, saf97 gear-reducing, saf97 gear-reducing, saf97 gear-reducing plant
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SAF97齿轮减速机马达样本 |
|
| SAF97齿轮减速机马达三维图纸 |
|
