Saf97 power-driven speed-reducing machineDetailed Information

Saf97 power-driven speed-reducing machine
prevnext

Saf97 power-driven speed-reducing machine

TEL：Email:[email protected]
  1. 详细信息

Keywords: saf97 motor reduction machine_saf97y7. 5kw_saf97y11kw_saf97 power drive

SAF97Y7.5KWGeared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF97Y7.5KW105.71
7.5KW14.0rpm4050N.m
243kg33100N0.85
SAF97Y7.5KW89.607.5KW16.0rpm3460N.m243kg34200N0.95
SAF97Y7.5KW78.267.5KW19.0rpm3040N.m243kg34900N1.00
SAF97Y7.5KW65.457.5KW22.0rpm2560N.m243kg35500N1.15
SAF97Y7.5KW71.437.5KW21.0rpm3110N.m243kg34800N1.05
SAF97Y7.5KW60.597.5KW24.0rpm2650N.m243kg35400N1.25
SAF97Y7.5KW55.797.5KW26.0rpm2450N.m243kg35700N1.35
SAF97Y7.5KW49.877.5KW29.0rpm2190N.m243kg36000N
1.50
SAF97Y7.5KW44.897.5KW33.0rpm1980N.m243kg36200N1.65
SAF97Y7.5KW40.657.5KW36.0rpm1800N.m243kg36300N1.85
SAF97Y7.5KW36.057.5KW41.0rpm1600N.m243kg36000N2.10
SAF97Y7.5KW32.607.5KW45.0rpm1450N.m243kg35300N2.20
SAF97Y7.5KW26.397.5KW56.0rpm1200N.m243kg31900N2.20
SAF97Y7.5KW23.597.5KW62.0rpm1080N.m243kg31200N2.40
SAF97Y7.5KW21.237.5KW69.0rpm970N.m243kg30600N2.70
SAF97Y7.5KW19.237.5KW76.0rpm880N.m243kg30000N2.90

SAF97Y11KWGeared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF97Y11KW55.7911KW26.0rpm3580N.m285kg34000N0.90
SAF97Y11KW49.8711KW30.0rpm3210N.m285kg34600N1.05
SAF97Y11KW44.8911KW33.0rpm2900N.m285kg34700N1.15
SAF97Y11KW40.6511KW36.0rpm2630N.m285kg34200N1.25
SAF97Y11KW36.0511KW41.0rpm2340N.m285kg33700N1.40
SAF97Y11KW32.6011KW45.0rpm2120N.m285kg33100N1.50
SAF97Y11KW26.3911KW56.0rpm1760N.m285kg29300N1.45
SAF97Y11KW23.5911KW63.0rpm1580N.m285kg28900N1.65
SAF97Y11KW21.2311KW69.0rpm1420N.m285kg28500N1.80
SAF97Y11KW19.2311KW77.0rpm1290N.m285kg28100N2.00
SAF97Y11KW17.0511KW86.0rpm1140N.m285kg27500N2.20
SAF97Y11KW15.4211KW96.0rpm1040N.m285kg27100N2.40
SAF97Y11KW13.0711KW113rpm880N.m285kg26200N2.60
SAF97Y11KW11.4111KW129rpm770N.m285kg25500N2.90

Saf97 power-drivenreducing machineType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

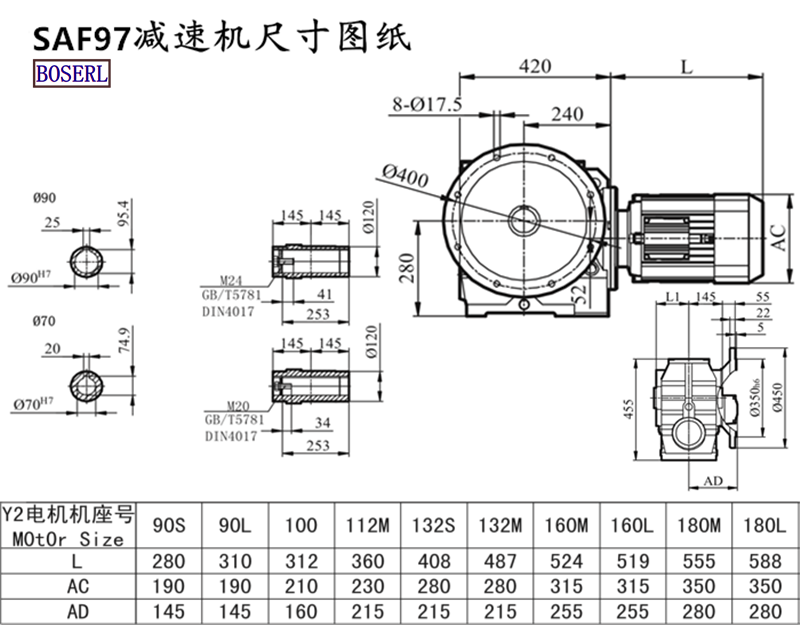

Saf97 power-drivenreducing machineInstall size drawings


wireless image_2020525095000.png

Saf97 power-drivenreducing machineProduction plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
