SAF97DRE180S4Detailed Information

SAF97DRE180S4
prevnext

SAF97DRE180S4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 11 kwv pv one saf97dre180s4_saf97dve180s4

SAF97DRE180S4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF97DRE180S436.05
18.5KW41.0rpm3960N.m342kg
28700N0.85
SAF97DRE180S432.6018.5KW45.0rpm3590N.m342kg28600N0.90
SAF97DRE180S427.63
18.5KW53.0rpm3050N.m342kg28400N1.00
SAF97DRE180S424.1318.5KW61.0rpm2670N.m342kg
28100N1.05
SAF97DRE180S421.2318.5KW69.0rpm2410N.m342kg24100N1.10
SAF97DRE180S419.2318.5KW76.0rpm2190N.m342kg24100N1.20
SAF97DRE180S417.0518.5KW86.0rpm1940N.m342kg
24000N1.30
SAF97DRE180S415.4218.5KW95.0rpm1760N.m342kg23900N1.40
SAF97DRE180S413.0718.5KW112rpm1490N.m342kg23500N1.55
SAF97DRE180S411.4118.5KW128rpm1300N.m342kg
23200N1.70
SAF97DRE180S49.5518.5KW153rpm1090N.m342kg22600N1.85
SAF97DRE180S48.2618.5KW177rpm950N.m342kg22100N1.85

SAF97DVE180S4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF97DVE180S436.05
18.5KW41.0rpm3960N.m342kg
28700N0.85
SAF97DVE180S432.6018.5KW45.0rpm3590N.m342kg28600N0.90
SAF97DVE180S427.63
18.5KW53.0rpm3050N.m342kg28400N1.00
SAF97DVE180S424.1318.5KW61.0rpm2670N.m342kg
28100N1.05
SAF97DVE180S421.2318.5KW69.0rpm2410N.m342kg24100N1.10
SAF97DVE180S419.2318.5KW76.0rpm2190N.m342kg24100N1.20
SAF97DVE180S417.0518.5KW86.0rpm1940N.m342kg
24000N1.30
SAF97DVE180S415.4218.5KW95.0rpm1760N.m342kg23900N1.40
SAF97DVE180S413.0718.5KW112rpm1490N.m342kg23500N1.55
SAF97DVE180S411.4118.5KW128rpm1300N.m342kg
23200N1.70
SAF97DVE180S49.5518.5KW153rpm1090N.m342kg22600N1.85
SAF97DVE180S48.2618.5KW177rpm950N.m342kg22100N1.85

Saf97dre180s4 deviators electric motionType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

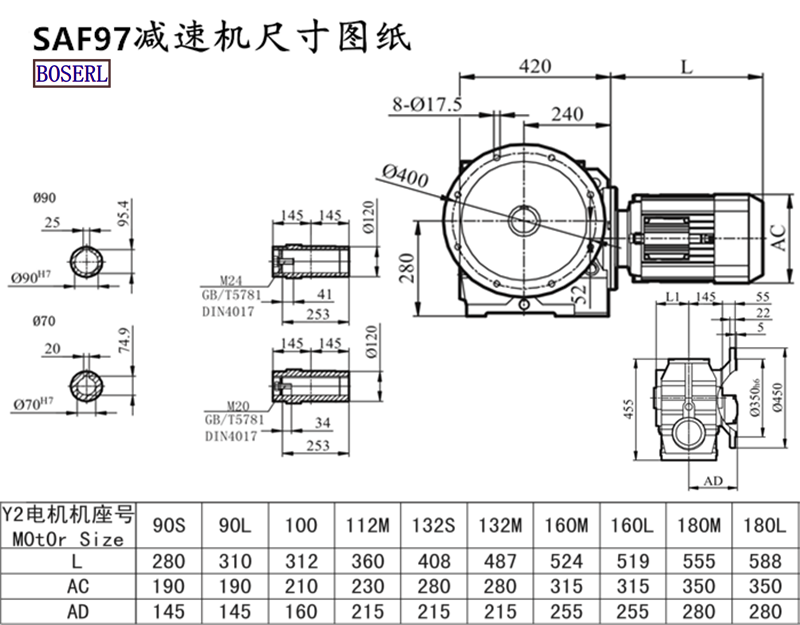

Saf97dre180s4 deviators electric motionInstall size drawings


wireless image_2020525095000.png

Saf97dre180s4 deviators electric motionProduction plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
