SAF97DT160M4Detailed Information

SAF97DT160M4
prevnext

SAF97DT160M4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 37kw-bed-wire-retarder oner_saf97dt160m4_saf97dve160m4

SAF97DT160M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF97DT160M455.7911KW26.0rpm3580N.m285kg34000N0.90
SAF97DT160M449.8711KW30.0rpm3210N.m285kg34600N1.05
SAF97DT160M444.8911KW33.0rpm2900N.m285kg34700N1.15
SAF97DT160M440.6511KW36.0rpm2630N.m285kg34200N1.25
SAF97DT160M436.0511KW41.0rpm2340N.m285kg33700N1.40
SAF97DT160M432.6011KW45.0rpm2120N.m285kg33100N1.50
SAF97DT160M426.3911KW56.0rpm1760N.m285kg29300N1.45
SAF97DT160M423.5911KW63.0rpm1580N.m285kg28900N1.65
SAF97DT160M421.2311KW69.0rpm1420N.m285kg28500N1.80
SAF97DT160M419.2311KW77.0rpm1290N.m285kg28100N2.00
SAF97DT160M417.0511KW86.0rpm1140N.m285kg27500N2.20
SAF97DT160M415.4211KW96.0rpm1040N.m285kg27100N2.40
SAF97DT160M413.0711KW113rpm880N.m285kg26200N2.60
SAF97DT160M411.4111KW129rpm770N.m285kg25500N2.90

SAF97DVE160M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF97DVE160M455.7911KW26.0rpm3580N.m285kg34000N0.90
SAF97DVE160M449.8711KW30.0rpm3210N.m285kg34600N1.05
SAF97DVE160M444.8911KW33.0rpm2900N.m285kg34700N1.15
SAF97DVE160M440.6511KW36.0rpm2630N.m285kg34200N1.25
SAF97DVE160M436.0511KW41.0rpm2340N.m285kg33700N1.40
SAF97DVE160M432.6011KW45.0rpm2120N.m285kg33100N1.50
SAF97DVE160M426.3911KW56.0rpm1760N.m285kg29300N1.45
SAF97DVE160M423.5911KW63.0rpm1580N.m285kg28900N1.65
SAF97DVE160M421.2311KW69.0rpm1420N.m285kg28500N1.80
SAF97DVE160M419.2311KW77.0rpm1290N.m285kg28100N2.00
SAF97DVE160M417.0511KW86.0rpm1140N.m285kg27500N2.20
SAF97DVE160M415.4211KW96.0rpm1040N.m285kg27100N2.40
SAF97DVE160M413.0711KW113rpm880N.m285kg26200N2.60
SAF97DVE160M411.4111KW129rpm770N.m285kg25500N2.90

Saf97dt160m4 power-mobilized brakesType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

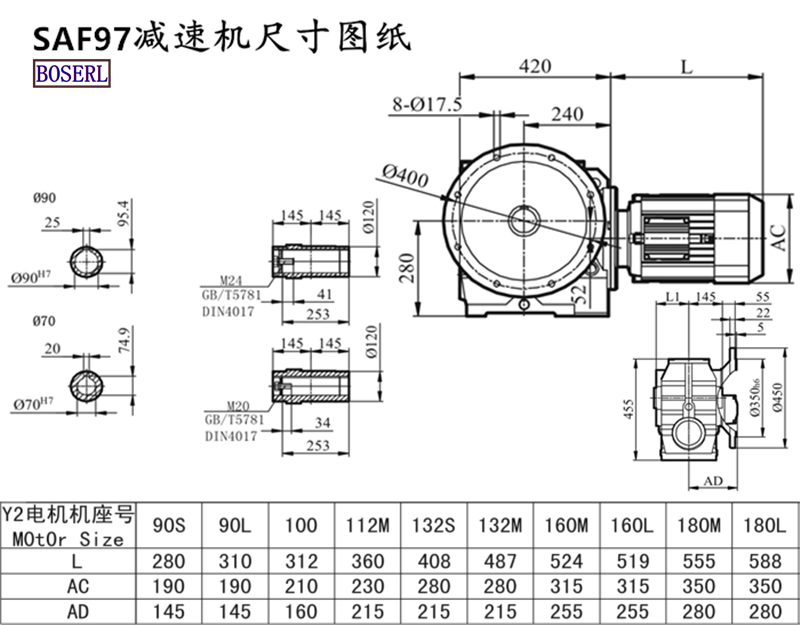

Saf97dt160m4 power-mobilized brakesInstall size drawings


wireless image_2020525095000.png

Saf97dt160m4 power-mobilized brakesProduction plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
