Saf97 gearboxDetailed Information
Keyword: saf97 gearbox_saf97y80m4_saf97y90m4_saf97 gearbox_saf97 gearboxer
SAF97Y80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF97Y80M4 | 824 | 1.1KW | 1.70rpm | 4700N.m | 190kg | 23500N | 0.90 |
| SAF97Y80M4 | 714 | 1.1KW | 2.00rpm | 3360N.m | 190kg | 34400N | 1.25 |
| SAF97Y80M4 | 626 | 1.1KW | 2.30rpm | 3570N.m | 190kg | 34000N | 1.15 |
| SAF97Y80M4 | 538 | 1.1KW | 2.60rpm | 3070N.m | 190kg | 34800N | 1.35 |
| SAF97Y80M4 | 484 | 1.1KW | 2.90rpm | 2780N.m | 190kg | 35300N | 1.50 |
| SAF97Y80M4 | 420 | 1.1KW | 3.40rpm | 2410N.m | 190kg | 35700N | 1.75 |
SAF97Y90M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF97Y90M4 | 286.40 | 1.5KW | 5.00rpm | 2100N.m | 193kg | 36100N | 1.90 |
| SAF97Y90M4 | 262.22 | 1.5KW | 5.40rpm | 1940N.m | 193kg | 36200N | 2.10 |
| SAF97Y90M4 | 231.67 | 1.5KW | 6.20rpm | 1730N.m | 193kg | 36400N | 2.30 |
| SAF97Y90M4 | 196.52 | 1.5KW | 7.30rpm | 1480N.m | 193kg | 36600N | 2.70 |
Saf97 gearboxType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

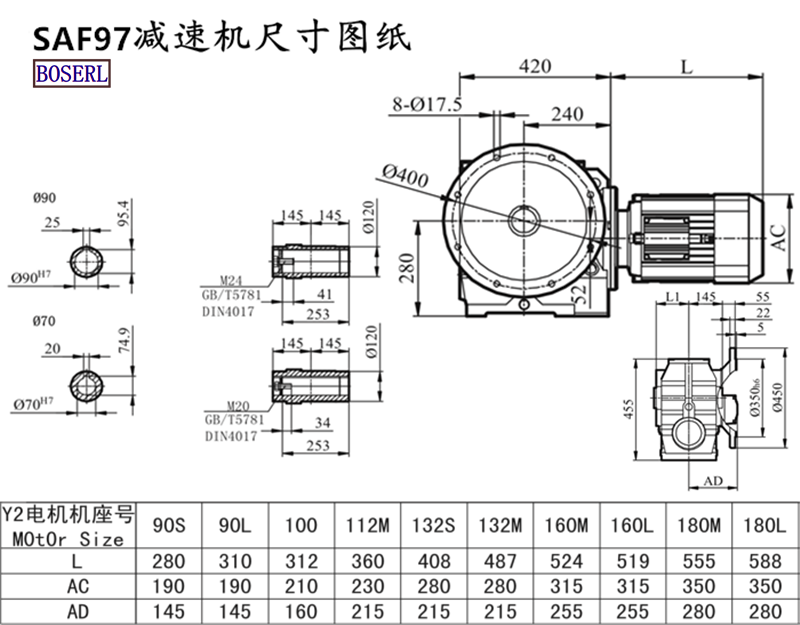

Saf97 gearboxInstall size drawings
Saf97 gearboxProduction plant display: three days' appointment for the factory
Gearbox motorPresentation of application cases:
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
