SAF97RF57-Y1.1KWDetailed Information
Keywords: 55kw ' s gear-reducing motor _saf97rf57-y1. 1kw_saf97rf57-y112m4
SAF97RF57-Y1.1KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF97RF57-Y1.1KW | 824 | 1.1KW | 1.70r/min | 4700N.m | 208kg | 23500N | 0.90 |
| SAF97RF57-Y1.1KW | 714 | 1.1KW | 2.00r/min | 3360N.m | 208kg | 34400N | 1.25 |
| SAF97RF57-Y1.1KW | 626 | 1.1KW | 2.30r/min | 3570N.m | 208kg | 34000N | 1.15 |
| SAF97RF57-Y1.1KW | 538 | 1.1KW | 2.60r/min | 3070N.m | 208kg | 34800N | 1.35 |
| SAF97RF57-Y1.1KW | 484 | 1.1KW | 2.90r/min | 2780N.m | 208kg | 35300N | 1.50 |
| SAF97RF57-Y1.1KW | 420 | 1.1KW | 3.40r/min | 2410N.m | 208kg | 35700N | 1.75 |
Saf97rf57-y112m4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF97RF57-Y112M4 | 219 | 4KW | 6.70r/min | 4690N.m | 234kg | 24100N | 0.90 |
| SAF97RF57-Y112M4 | 205 | 4KW | 7.10r/min | 4410N.m | 234kg | 28500N | 0.95 |
Saf97rf57-y1. 1kw electric retrenchorType:
S97rf57-y1. 1kw foot installation -- slash gearServo motor reducer
Sa97rf57-y1. 1kw hollow axle installation -- snail snail brake
Saf97rf57-y1. 1kw is a franium b5 installation - snail snail decelerator
Saz97rf57-y1. 1kw is thereducing machine for the b14 aerocentric axle snail snails
Sf97rf57-y1. 1kw is thereducing machine for snail snails with a b5 solid core
Sh97rf57-y1. 1kw is an empty axle lockboard installation - a snail snail brake
Shf97rf57-y1. 1kw is the b5 franium axle locker installation-slasher snail brake
Shz97rf57-y1. 1kw is the b14 flannel axle locker installation - a snail snail brake
Sa97/trf57-y1. 1kw rotation arm hollow axis installation -- snail snail brakes with slash gear
Sh97/trf57-y1. 1kw is an axle lock lock installation for the twister arm - a snail snail decelerator
Sa97brf57-y1. 1kw foot hollow axis installation -- snail snail brakes
Sh97brf57-y1. 1kw bottom foot hollow axle locker installation -- snail brakes with slush gear
St97rf57-y1. 1kw solid axe output twister arm installation -- snail snail brake

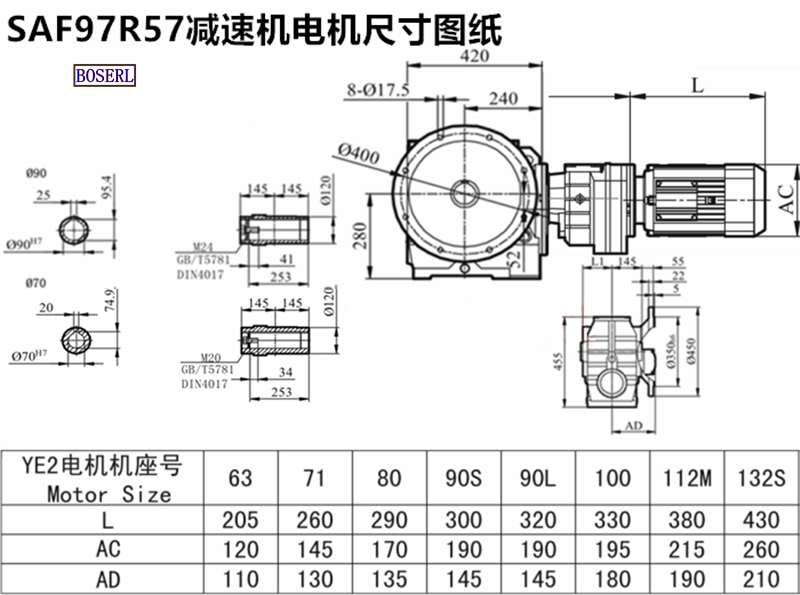

Saf97rf57-y1. 1kw electric retrenchorInstall size drawings
Saf97rf57-y1. 1kw electric retrenchorProduction plant display: three days' appointment for the factoryGearbox motor
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
