SAF97RF57-Y1.5KWDetailed Information
Keyword: what kind of gear-reducing power is 3kw
SAF97RF57-Y1.5KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF97RF57-Y1.5KW | 714 | 1.5KW | 2.00r/min | 4580N.m | 211kg | 29300N | 0.90 |
| SAF97RF57-Y1.5KW | 626 | 1.5KW | 2.30r/min | 4870N.m | 211kg | 19700N | 0.85 |
| SAF97RF57-Y1.5KW | 538 | 1.5KW | 2.70r/min | 4200N.m | 211kg | 31300N | 1.00 |
| SAF97RF57-Y1.5KW | 484 | 1.5KW | 3.00r/min | 3790N.m | 211kg | 33600N | 1.10 |
| SAF97RF57-Y1.5KW | 420 | 1.5KW | 3.40r/min | 3300N.m | 211kg | 34500N | 1.25 |
| SAF97RF57-Y1.5KW | 376 | 1.5KW | 3.80r/min | 2980N.m | 211kg | 35000N | 1.40 |
| SAF97RF57-Y1.5KW | 327 | 1.5KW | 4.40r/min | 2610N.m | 211kg | 35500N | 1.60 |
SAF97RF57-Y0.12KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF97RF57-Y0.12KW | 11267 | 0.12KW | 0.12r/min | 4740N.m | 193.5kg | 25100N | 0.90 |
| SAF97RF57-Y0.12KW | 10078 | 0.12KW | 0.14r/min | 4330N.m | 193.5kg | 32500N | 0.95 |
| SAF97RF57-Y0.12KW | 8608 | 0.12KW | 0.16r/min | 3590N.m | 193.5kg | 34000N | 1.15 |
| SAF97RF57-Y0.12KW | 7554 | 0.12KW | 0.18r/min | 3180N.m | 193.5kg | 34700N | 1.30 |
Saf97rf57-y1. 5kw motorretardersType:
S97rf57-y1. 5kw foot installation -- slash gearServo motor reducer
Sa97rf57-y1. 5kw hollow axle installation -- snail snail brake
Saf97rf57-y1. 5kw is an installed flange-slashed snail
Saz97rf57-y1. 5kw is an installation of the b14 french aerocentric axle - a snail brake
Sf97rf57-y1. 5kw is thereducing machine for snail snails with a b5 solid core
Sh97rf57-y1. 5kw is an empty axle lockboard installation - a snail brake
Shf97rf57-y1. 5kw is a b5 franium axle locker installation - a snail snail brake
Shz97rf57-y1. 5kw is the b14 flannel axle locker installation - a sledge snail brake
Sa97/trf57-y1. 5kw rotation arm hollow axis installation -- snail snail brake
Sh97/trf57-y1. 5kw is an axle locker installation for the twister arm - a snail snail decelerator
Sa97brf57-y1. 5kw foot hollow axis installation -- scalding snail brakes
Sh97brf57-y1. 5kw bottom foot hollow axle locker installation -- snail brake
St97rf57-y1. 5kw solid axe export shaft arm installation - tilt snail stumper

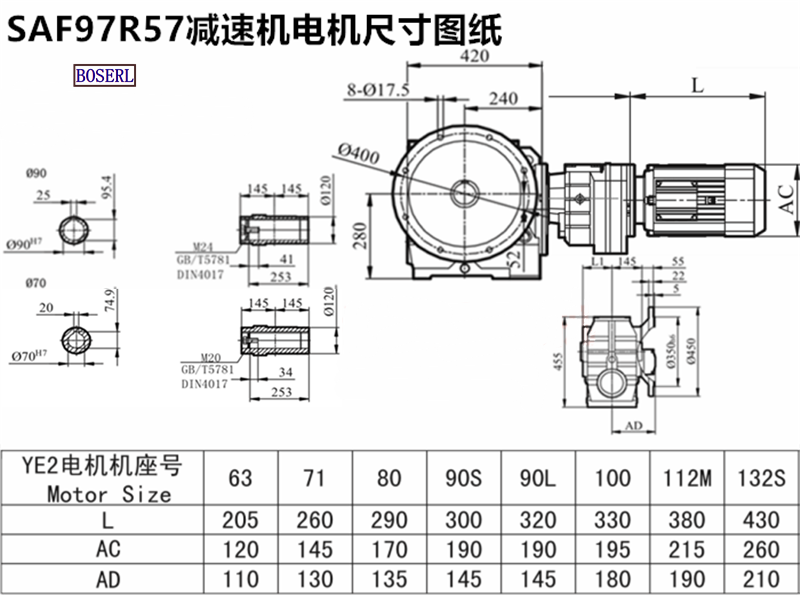

Saf97rf57-y1. 5kw motorretardersInstall size drawings
Saf97rf57-y1. 5kw motorretardersProduction plant display: three days' appointment for the factoryGearbox motor
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
