SF57R17DM63L4Detailed Information
Keywords: 3. 6 kw to service an electric slasher gear-retarder_sf57r17dm63l4_sf57r17drrs71s4
SF57R17DM63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DM63L4 | 438 | 0.18KW | 3.00r/min | 355N.m | 24kg | 6520N | 0.85 |
| SF57R17DM63L4 | 388 | 0.18KW | 3.40r/min | 310N.m | 24kg | 6970N | 0.95 |
| SF57R17DM63L4 | 336 | 0.18KW | 3.90r/min | 275N.m | 24kg | 7290N | 1.10 |
| SF57R17DM63L4 | 294 | 0.18KW | 4.50r/min | 235N.m | 24kg | 7560N | 1.25 |
| SF57R17DM63L4 | 269 | 0.18KW | 4.90r/min | 225N.m | 24kg | 7650N | 1.35 |
| SF57R17DM63L4 | 229 | 0.18KW | 5.80r/min | 193N.m | 24kg | 7830N | 1.55 |
| SF57R17DM63L4 | 204 | 0.18KW | 6.50r/min | 174N.m | 24kg | 7920N | 1.75 |
| SF57R17DM63L4 | 187 | 0.18KW | 7.00r/min | 159N.m | 24kg | 7990N | 1.90 |
SF57R17DRS71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DRS71S4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57R17DRS71S4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57R17DRS71S4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57R17DRS71S4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57R17DRS71S4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57R17DRS71S4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57R17DRS71S4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
Sf57r17dm63l4 motor deceleratorType:
S57r17dm63l4 foot installation -- slash gearServo motor reducer
Sa57r17dm63l4 space axle installation -- snail snail brake
Saf57r17dm63l4 is a b5 installation-slash snail snail
Saz57r17dm63l4 is thereducing machine for the b14 aerocentric axle snail
Sf57r17dm63l4 is thereducing machine for snail snails with a b5 solid core
Sh57r17dm63l4 is an empty axle lock-drive installation - a snail-slasher
Shf57r17dm63l4 is a b5-farland axle locker installation - a snail brake
Shz57r17dm63l4 is a b14 franium axle locker installation - a snail-slasher snail brake
Sa57/tr17dm63l4 rotation arm hollow axis installation -- slough snail brakes
Sh57/tr17dm63l4 is an axle lock-drive installation for a snail snail brake
Sa57br17dm63l4 foot hollow axle installation -- snail snail brake
Sh57br17dm63l4 foot hollow axle lock-drive installation -- snail brakes snail
St57r17dm63l4 solid axe output twister arm installation -- slough snail brake

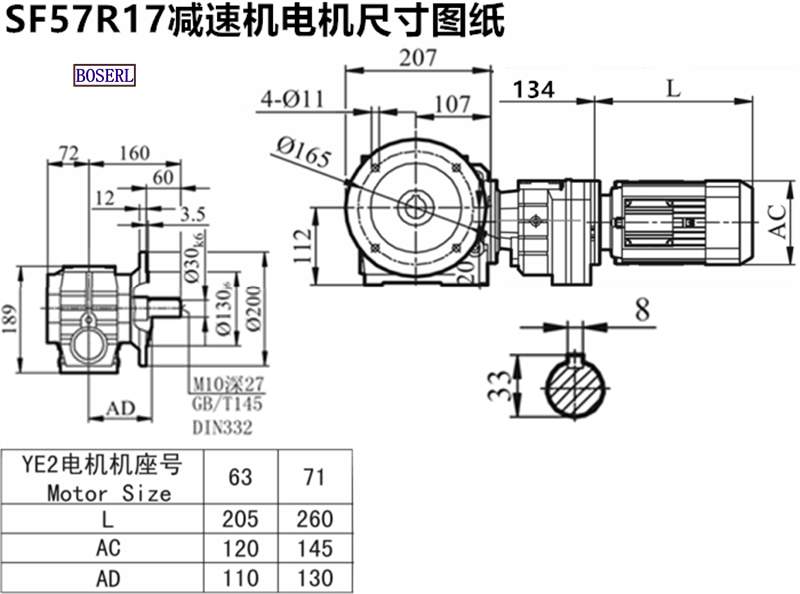

Sf57r17dm63l4 motor deceleratorInstall size drawings
Sf57r17dm63l4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
