SF57R17DM63M4Detailed Information
Keywords: 3. 7 kw for an electric oscillator sorrow gear reduction machine_sf57r17dm63m4_sf57r17dr71m4
SF57R17DM63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DM63M4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SF57R17DM63M4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SF57R17DM63M4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SF57R17DM63M4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SF57R17DM63M4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SF57R17DM63M4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SF57R17DM63M4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SF57R17DM63M4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
SF57R17DR71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DR71M4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57R17DR71M4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57R17DR71M4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57R17DR71M4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57R17DR71M4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57R17DR71M4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57R17DR71M4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
Sf57r17dm63m4 motor deceleratorType:
S57r17dm63m4 foot installation -- slash gearServo motor reducer
Sa57r17dm63m4 hollow axle installation -- snail snail brake machine
Saf57r17dm63m4 is a flange b5 installation-slash snail snail
Saz57r17dm63m4 is thereducing machine for the b14 aerocentric axle snail
Sf57r17dm63m4 is thereducing machine for snail snails with a b5 solid core
Sh57r17dm63m4 is an empty axle lock-board installation -- a snail-slasher
Shf57r17dm63m4 is a b5 franium axle lockboard installation - a snail braker
Shz57r17dm63m4 is a b14 flannel axle locker installation - a snail braker
Sa57/tr17dm63m4 rotation arm hollow axis installation -- slough snail brakes
Sh57/tr17dm63m4 is a scalding arm axle locker installation - a snail snail brake
Sa57br17dm63m4 foot hollow axle installation -- snail snail brakes
Sh57br17dm63m4 bottom foot hollow axle locker installation -- snail brakes
St57r17dm63m4 solid axis export twirl arm installation - tilt-rob snail stifler

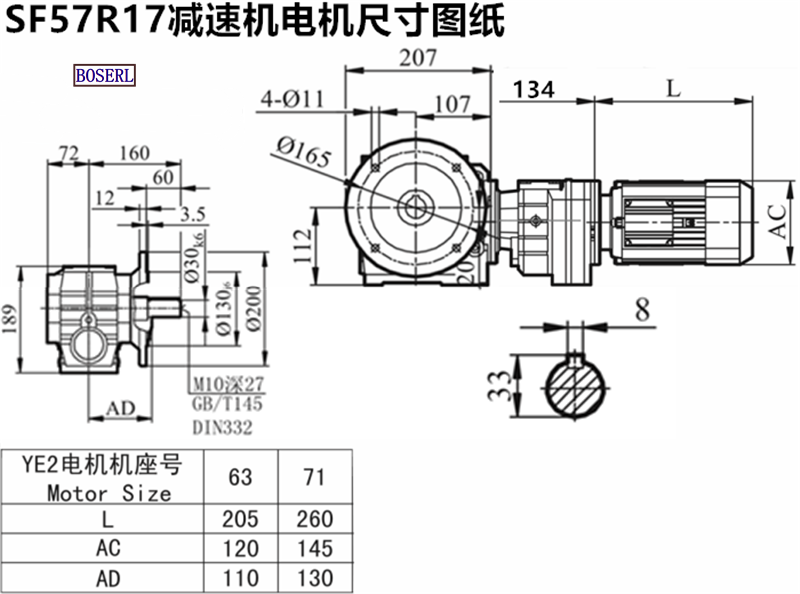

Sf57r17dm63m4 motor deceleratorInstall size drawings
Sf57r17dm63m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
