SF57R17DM63S4Detailed Information
Keywords: 2. 3kw for an electric oscillator slasher _sf57r17dm63s4_sf57r17drrs71d4
SF57R17DM63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DM63S4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SF57R17DM63S4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SF57R17DM63S4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SF57R17DM63S4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SF57R17DM63S4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SF57R17DM63S4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SF57R17DM63S4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SF57R17DM63S4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
SF57R17DRS71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DRS71D4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57R17DRS71D4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57R17DRS71D4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57R17DRS71D4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57R17DRS71D4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57R17DRS71D4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57R17DRS71D4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
Sf57r17dm63s4 motor deceleratorType:
S57r17dm63s4 bottom foot installation - slash gearServo motor reducer
Sa57r17dm63s4 sky axis installation - tilt snail snail deviator
Saf57r17dm63s4 is a b5 installation-slash snail snail
Saz57r17dm63s4 is theretarding machine for b14 aerocentric axle snails
Sf57r17dm63s4 is the b5-silver snail deviator
Sh57r17dm63s4 is an empty axle lock-board installation - a snail-slasher
Shf57r17dm63s4 is a b5 franium axle locker installation - a snail braker
Shz57r17dm63s4 is a b14 franium axle locker installation - a snail braker
Sa57/tr17dm63s4 rotation arm hollow axis installation -- slough snail brakes
Sh57/tr17dm63s4 is an axle lock lock installation for a sledge snail
Sa57br17dm63s 4 foot hollow axis installation - snail snail snail brake
Sh57br17dm63s 4 foot hollow axle lock-drive installation - snail brake
St57r17dm63s4 solid axis output twister arm installation -- slashed snail snail decelerator

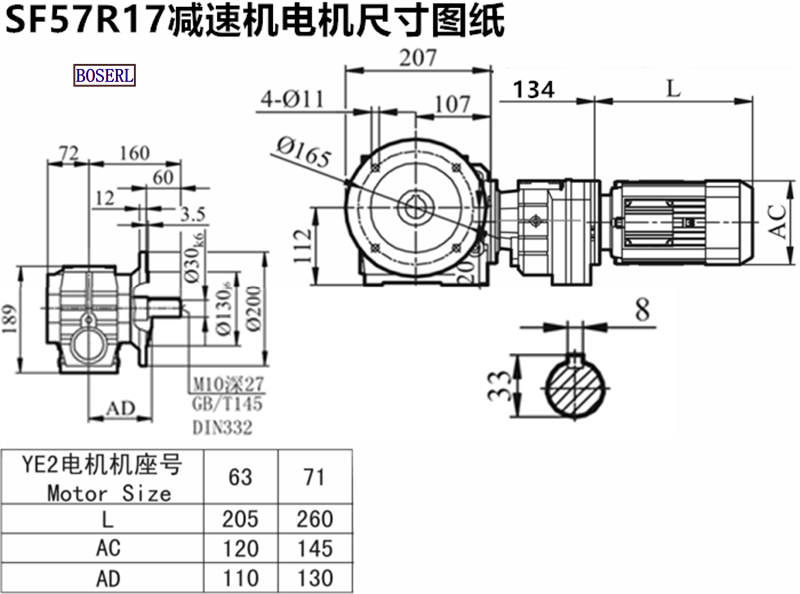

Sf57r17dm63s4 motor deceleratorInstall size drawings
Sf57r17dm63s4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
