SF57R17DM71M4Detailed Information
Keywords: 2. 9kw for an electric oscillator silhouette gear reduction machine_sf57r17dm71m4_sf57r17dr63m4
SF57R17DM71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DM71M4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57R17DM71M4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57R17DM71M4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57R17DM71M4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57R17DM71M4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57R17DM71M4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57R17DM71M4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SF57R17DR63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DR63M4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SF57R17DR63M4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SF57R17DR63M4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SF57R17DR63M4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SF57R17DR63M4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SF57R17DR63M4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SF57R17DR63M4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SF57R17DR63M4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
Sf57r17dm71m4 motor deceleratorType:
S57r17dm71m4 foot installation - slash gearServo motor reducer
Sa57r17dm71m4 hollow axle installation -- snail snail brake
Saf57r17dm71m4 is a flange b5 installation - a snail snail brake
Saz57r17dm71m4 is thereducing machine for the b14 aerocentric axle snails
Sf57r17dm71m4 is thereducing machine for the b5 solid core snail
Sh57r17dm71m4 is an empty axle lockboard installation -- a snail-slasher
Shf57r17dm71m4 is the b5-farland axle lockboard installation - tilt-rob snail stifler
Shz57r17dm71m4 is a b14 flannel axle locker installation - a sledge snail brake
Sa57/tr17dm71m4 rotation arm hollow axis installation -- slough snail brakes
Sh57/tr17dm71m4 is an axle lock-drive installation for a sledge snail
Sa57br17dm71m4 foot hollow axle installation -- snail snail snail brake
Sh57br17dm71m4 foot hollow axle lock-drive installation -- snail brakes snail snail
St57r17dm71m4 solid axis output twirl arm installation -- slough snail brake

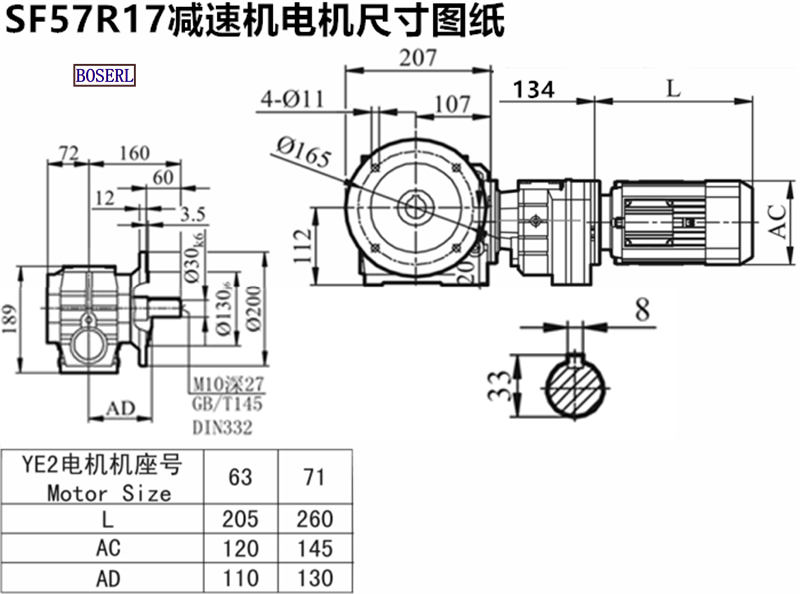

Sf57r17dm71m4 motor deceleratorInstall size drawings
Sf57r17dm71m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: 2. 9kw for an electric slasher gear-retarder sf57r17dm71m4 sf57r17dr63m4
- 上一条SF57R17DV71MS4
- 下一条SF57R17DM71MS4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SF57R17DM71M4减速机样本 |
|
| SF57R17DM71M4减速机三维图纸 |
|
