SF57R17DT71D4Detailed Information
Keyword: 0. 18kw for an electric oscillator slant gear reduction machine_sf57r17dt71d4_sf57r17dr63ms4
SF57R17DT71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DT71D4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57R17DT71D4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57R17DT71D4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57R17DT71D4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57R17DT71D4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57R17DT71D4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57R17DT71D4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SF57R17DR63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DR63MS4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SF57R17DR63MS4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SF57R17DR63MS4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SF57R17DR63MS4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SF57R17DR63MS4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SF57R17DR63MS4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SF57R17DR63MS4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SF57R17DR63MS4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
Sf57r17dt71d4 deviatorsType:
S57r17dt71d4 foot installation - slash gearServo motor reducer
Sa57r17dt71d4 sky axis installation - tilt snail strawling
Saf57r17dt71d4 is a b5 installation-slash snail brake
Saz57r17dt71d4 is thereducing machine for the b14 aerocentric axle snail
Sf57r17dt71d4 is thereducing machine for the b5 solid core snail
Sh57r17dt71d4 is an empty axle lock-drive installation -- a snail-slasher
Shf57r17dt71d4 is a b5 franium axle locker installation - a snail braker
Shz57r17dt71d4 is a b14 flannel axle lock-drive installation - a snail brake
Sa57/tr17dt71d4 rotation arm hollow axis installation -- scalding snails
Sh57/tr17dt71d4 is an empty axle lock-drive installation for snail snail brakes
Sa57br17dt71d4 foot hollow axle installation -- snail snail brakes
Sh57br17dt71d4 foot hollow axle lock-drive installation -- snail snail brake
St57r17dt71d4 solid axis export twirl arm installation - tilt snail snail stifler

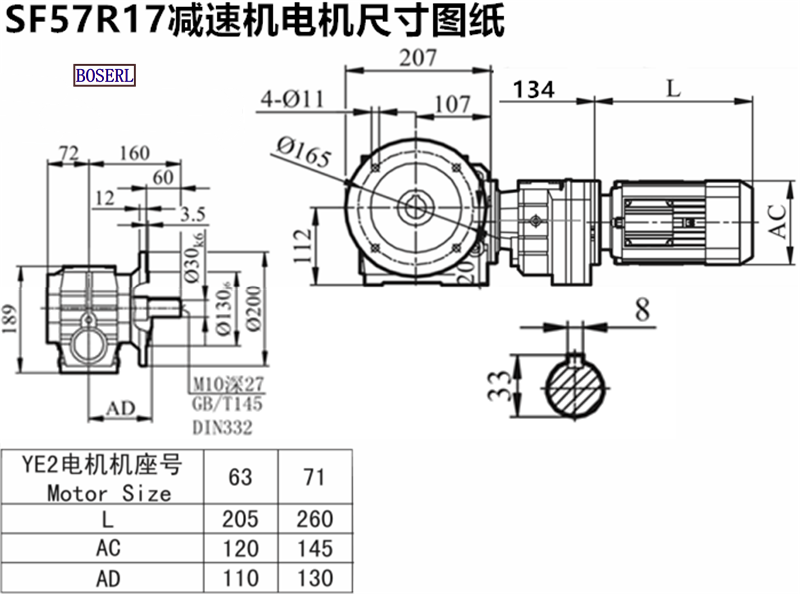

Sf57r17dt71d4 deviatorsInstall size drawings
Sf57r17dt71d4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
