SF57R17DV71MS4Detailed Information
Keywords: 2. 7 kw for an electric oscillator silhouette gear reduction machine_sf57r17dv71ms4_sf57r17dre63s4
SF57R17DV71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DV71MS4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57R17DV71MS4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57R17DV71MS4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57R17DV71MS4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57R17DV71MS4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57R17DV71MS4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57R17DV71MS4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SF57R17DRE63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DRE63S4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SF57R17DRE63S4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SF57R17DRE63S4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SF57R17DRE63S4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SF57R17DRE63S4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SF57R17DRE63S4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SF57R17DRE63S4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SF57R17DRE63S4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
Sf57r17dv71ms4 deviatorsType:
S57r17dv71ms4 foot installation - slash gearServo motor reducer
Sa57r17dv71ms4 sky axe installation - tilt snail strawling
Saf57r17dv71ms4 is a flange-slash-slough snail decelerator
Saz57r17dv71ms4 is thereducing machine for the b14 aerocentric axle snail
Sf57r17dv71ms4 is thereducing machine for snail snails with a b5 solid core
Sh57r17dv71ms4 is an empty axle lock-drive installation - a snail brake
Shf57r17dv71ms4 is a b5 franium axle locker installation - a snail braker
Shz57r17dv71ms4 is a b14 franium axle locker installation - a snail brake
Sa57/tr17dv71ms4 vibration arm hollow axis installation -- slough snail brakes
Sh57/tr17dv71ms4 is an axle lock-drive installation for a sledge snail
Sa57br17dv71ms4 foot hollow axle installation -- snail snail brakes
Sh57br17dv71ms4 foot hollow axle lock-drive installation -- snail brakes on slanted gear
St57r17dv71ms4 solid axis output twister arm installation -- slashed snail snail brakes

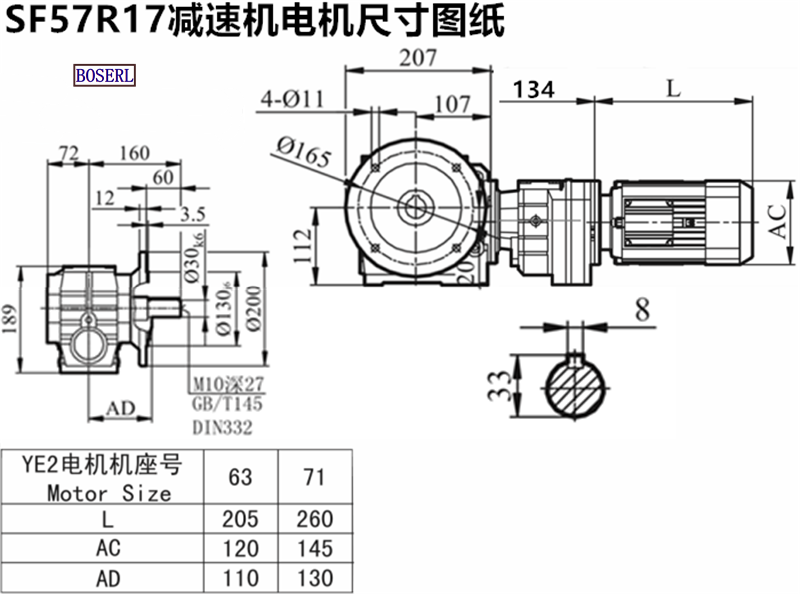

Sf57r17dv71ms4 deviatorsInstall size drawings
Sf57r17dv71ms4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
