SF57R17DVE63M4Detailed Information
Keywords: 3kw for an electric slasherretarder_sf57r17dve63m4_sf57r17drn71m4
SF57R17DVE63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DVE63M4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SF57R17DVE63M4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SF57R17DVE63M4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SF57R17DVE63M4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SF57R17DVE63M4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SF57R17DVE63M4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SF57R17DVE63M4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SF57R17DVE63M4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
SF57R17DRN71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DRN71M4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57R17DRN71M4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57R17DRN71M4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57R17DRN71M4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57R17DRN71M4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57R17DRN71M4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57R17DRN71M4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
Sf57r17dve63m4 motor deceleratorType:
S57r17dve63m4 foot installation - slash gearServo motor reducer
Sa57r17dve63m4 hollow axle installation -- snail snail brake
Saf57r17dve63m4 is a flange-slash snailreducing machine
Saz57r17dve63m4 is thereducing machine for the b14 aerocentric axle snail
Sf57r17dve63m4 is thereducing machine for the b5 solid core
Sh57r17dve63m4 is an empty axle lockboard installation - a snail-slasher
Shf57r17dve63m4 is a b5 franium axle locker installation - a snail-slasher
Shz57r17dve63m4 is a b14 flannel axle locker installation - a sledge snail brake
Sa57/tr17dve63m4 rotation arm hollow axis installation -- saloon snail brakes
Sh57/tr17dve63m4 is an axle-cracker for the sprained arm
Sa57br17dve63m4 foot hollow axis installation -- snail snail brake
Sh57br17dve63m4 bottom foot hollow axle locker installation -- snail snail brake
St57r17dve63m4 solid axis export twirl arm installation - sorrow snail stifler

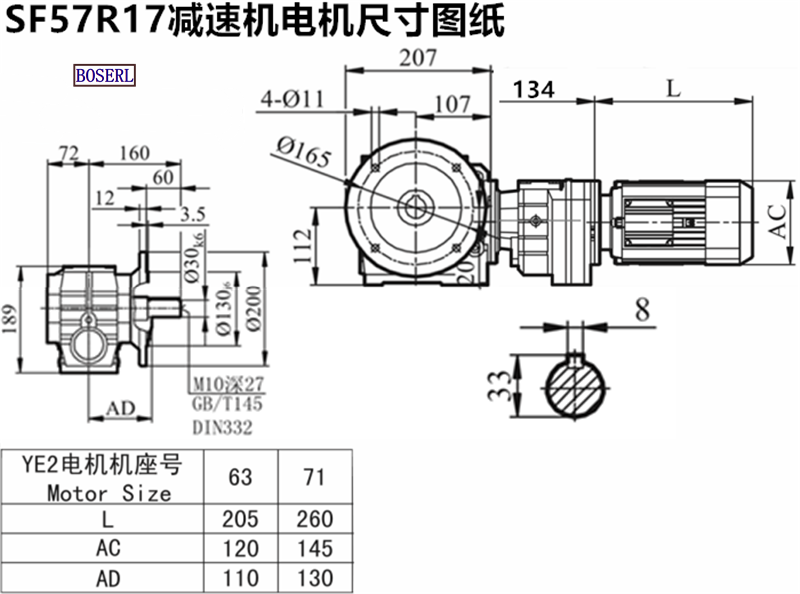

Sf57r17dve63m4 motor deceleratorInstall size drawings
Sf57r17dve63m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
