SF57R17DVE71M4Detailed Information
Keywords: 1. 5 kw for an electric oscillator slasher _sf57r17dve71m4_sf57r17drn63m4
SF57R17DVE71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DVE71M4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57R17DVE71M4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57R17DVE71M4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57R17DVE71M4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57R17DVE71M4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57R17DVE71M4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57R17DVE71M4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SF57R17DRN63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DRN63M4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SF57R17DRN63M4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SF57R17DRN63M4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SF57R17DRN63M4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SF57R17DRN63M4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SF57R17DRN63M4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SF57R17DRN63M4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SF57R17DRN63M4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
Sf57r17dve71m4 motor deceleratorType:
S57r17dve71m4 foot installation -- slash gearServo motor reducer
Sa57r17dve71m4 sky axis installation -- snail snail brakes
Saf57r17dve71m4 is thereducing machine for b5 installation snails
Saz57r17dve71m4 is a b14 flannel axle installation - a snail brake
Sf57r17dve71m4 is thereducing machine for the b5 solid core snail
Sh57r17dve71m4 is an empty axle lock-drive installation - a snail braker
Shf57r17dve71m4 is a b5 franium axle locker installation - a snail brake
Shz57r17dve71m4 is a b14 flannel axle locker installation - a sledge snail brake
Sa57/tr17dve71m4 rotation arm hollow axis installation - scalding snails
Sh57/tr17dve71m4 is an axle lock-drive installation for a sledge snail
Sa57br17dve71m4 foot hollow axis installation - snail snail snail brake
Sh57br17dve71m4 bottom foot hollow axle lock-drive installation - snail brakes
St57r17dve71m4 solid axle output twirl arm installation -- scalding snail brake

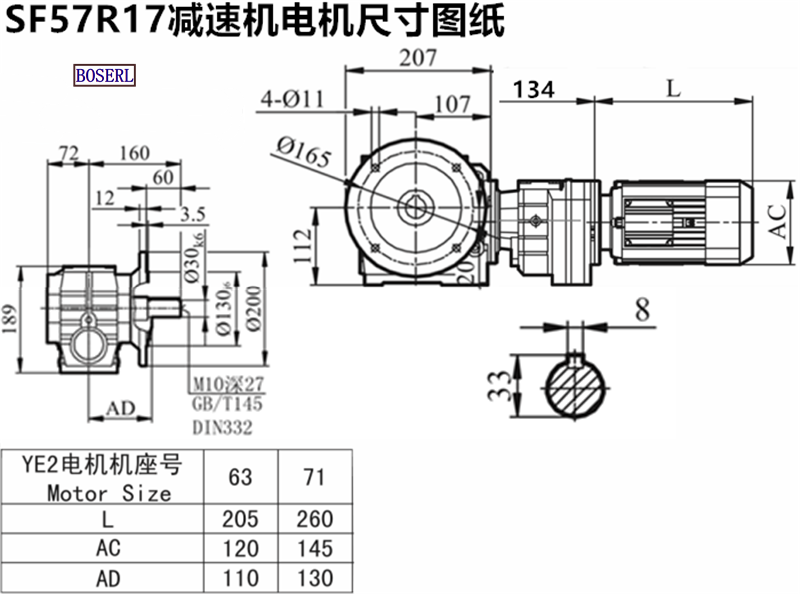

Sf57r17dve71m4 motor deceleratorInstall size drawings
Sf57r17dve71m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
