SF57R17DVE71S4Detailed Information
Keywords: 0. 4 kw for an electric slash gear-retarder_sf57r17dve71s4_sf57r17drrn63l4
SF57R17DVE71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DVE71S4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57R17DVE71S4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57R17DVE71S4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57R17DVE71S4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57R17DVE71S4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57R17DVE71S4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57R17DVE71S4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SF57R17DRN63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57R17DRN63L4 | 438 | 0.18KW | 3.00r/min | 355N.m | 24kg | 6520N | 0.85 |
| SF57R17DRN63L4 | 388 | 0.18KW | 3.40r/min | 310N.m | 24kg | 6970N | 0.95 |
| SF57R17DRN63L4 | 336 | 0.18KW | 3.90r/min | 275N.m | 24kg | 7290N | 1.10 |
| SF57R17DRN63L4 | 294 | 0.18KW | 4.50r/min | 235N.m | 24kg | 7560N | 1.25 |
| SF57R17DRN63L4 | 269 | 0.18KW | 4.90r/min | 225N.m | 24kg | 7650N | 1.35 |
| SF57R17DRN63L4 | 229 | 0.18KW | 5.80r/min | 193N.m | 24kg | 7830N | 1.55 |
| SF57R17DRN63L4 | 204 | 0.18KW | 6.50r/min | 174N.m | 24kg | 7920N | 1.75 |
| SF57R17DRN63L4 | 187 | 0.18KW | 7.00r/min | 159N.m | 24kg | 7990N | 1.90 |
Sf57r17dve71s4 deviatorsType:
S57r17dve71s4 foot installation - slash gearServo motor reducer
Sa57r17dve71s4 hollower for snail snails with slanted gear
Saf57r17dve71s4 is areducing machine for b5 installation snails
Saz57r17dve71s4 is a b14 flannel axle installation - a snail braker
Sf57r17dve71s4 is thereducing machine for the b5 solid core
Sh57r17dve71s4 is an empty axle lock-drive installation - a snail braker
Shf57r17dve71s4 is a b5 franium axle locker installation - a snail brake machine
Shz57r17dve71s4 is a b14 flannel axle locker installation - a snail snail brake
Sa57/tr17dve71s4 fault arms hollow axis installation -- scald snail brakes
Sh57/tr17dve71s4 is a swirl arm hollow axle locker installation - a snail brake
Sa57br17dve71s4 foot hollow axis installation -- snail snail snail snail brakes
Sh57br17dve71s4 bottom foot hollow axle locker installation -- snail snail brakes
St57r17dve71s4 solid axis output twister arm installation -- scalding snail brake

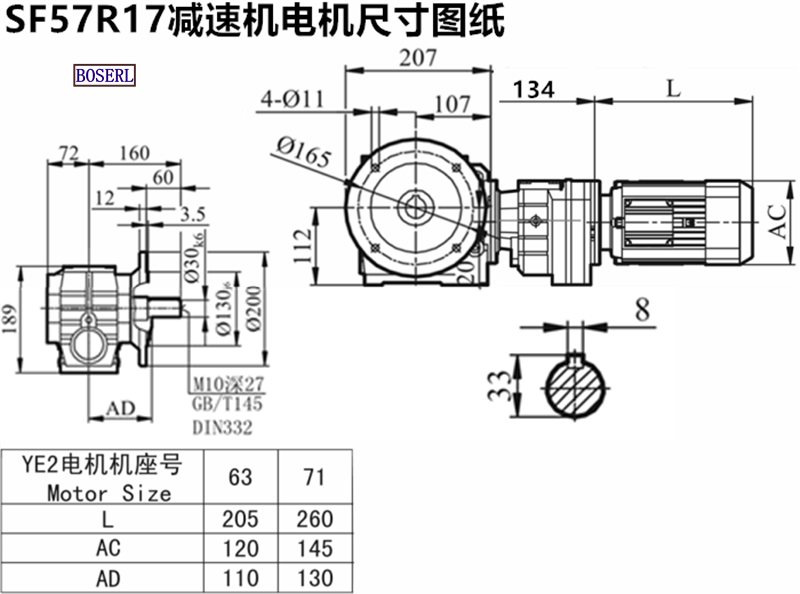

Sf57r17dve71s4 deviatorsInstall size drawings
Sf57r17dve71s4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
