SF57RF17-Y0.12KWDetailed Information
Keywords: 0. 12 kw for an electric oscillator silhouette gear reduction machine_sf57rf17-y0. 12kw_sf57rf17-y0. 18kw_sf57rf17-y0. 25kw
SF57RF17-Y0.12KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57RF17-Y0.12KW | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SF57RF17-Y0.12KW | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SF57RF17-Y0.12KW | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SF57RF17-Y0.12KW | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SF57RF17-Y0.12KW | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SF57RF17-Y0.12KW | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SF57RF17-Y0.12KW | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SF57RF17-Y0.12KW | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
SF57RF17-Y0.18KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57RF17-Y0.18KW | 438 | 0.18KW | 3.00r/min | 355N.m | 24kg | 6520N | 0.85 |
| SF57RF17-Y0.18KW | 388 | 0.18KW | 3.40r/min | 310N.m | 24kg | 6970N | 0.95 |
| SF57RF17-Y0.18KW | 336 | 0.18KW | 3.90r/min | 275N.m | 24kg | 7290N | 1.10 |
| SF57RF17-Y0.18KW | 294 | 0.18KW | 4.50r/min | 235N.m | 24kg | 7560N | 1.25 |
| SF57RF17-Y0.18KW | 269 | 0.18KW | 4.90r/min | 225N.m | 24kg | 7650N | 1.35 |
| SF57RF17-Y0.18KW | 229 | 0.18KW | 5.80r/min | 193N.m | 24kg | 7830N | 1.55 |
| SF57RF17-Y0.18KW | 204 | 0.18KW | 6.50r/min | 174N.m | 24kg | 7920N | 1.75 |
| SF57RF17-Y0.18KW | 187 | 0.18KW | 7.00r/min | 159N.m | 24kg | 7990N | 1.90 |
SF57RF17-Y0.25KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57RF17-Y0.25KW | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57RF17-Y0.25KW | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57RF17-Y0.25KW | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57RF17-Y0.25KW | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57RF17-Y0.25KW | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57RF17-Y0.25KW | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57RF17-Y0.25KW | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
Sf57rf17-y0. 12kw motor deceleratorType:
S57rf17-y0. 12kw bottom foot installation - slash gearServo motor reducer
Sa57rf17-y0. 12kw hollow axle installation -- snail snail brakes
Saf57rf17-y0. 12kw is thereducing machine for b5 installation snail snails
Saz57rf17-y0. 12kw is a b14 flannel axle installation - a snail brake
Sf57rf17-y0. 12kw is thereducing machine for snail snails with a b5 solid axis
Sh57rf17-y0. 12kw is an empty axle locker installation - a snail brake
Shf57rf17-y0. 12kw is thereducing machine for the b5 axle lock-drive snail
Shz57rf17-y0. 12kw is a b14 flannel axle locker installation - a sledge snail brake
Sa57/tff17-y0. 12 kw rotation arm hollower snail strawl
Sh57/trf17-y0. 12kw is an axle locker for the twister arm -- a sledge snail brake
Sa57brf17-y0. 12kw foot hollow axis installation - snail snail brake
Sh57brf17-y0. 12kw bottom foot hollow axle locker installation -- snail snail brake
St57rf17-y0. 12kw solid axe output twirl arm installation -- scalding snail brakes

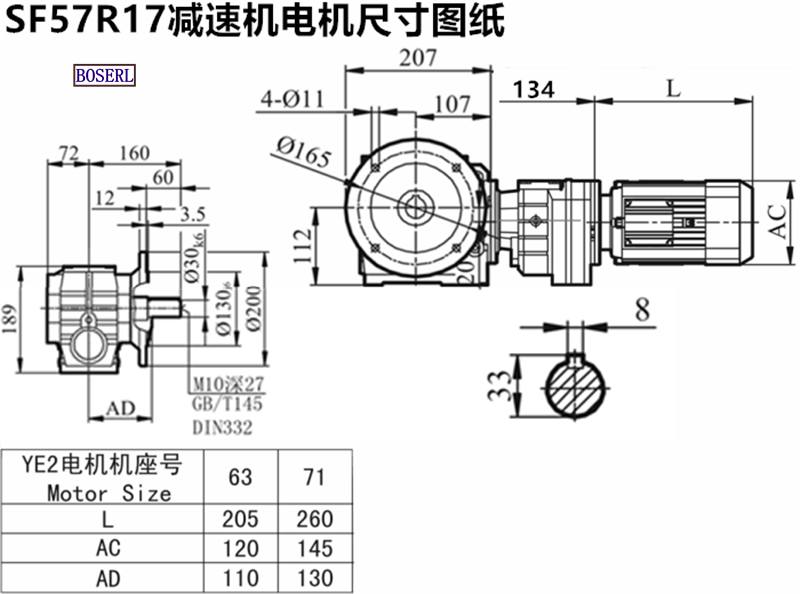

SF57RF17-Y0.12KWElectric brakesInstall size drawings
SF57RF17-Y0.12KWElectric brakesProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
