SF57RF17-Y71M4Detailed Information
Keyword: 0. 1 kw for an electric oscillator silhouette gear reduction machine_sf57rf17-y71m4_sf57rf17-y63m4
SF57RF17-Y71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57RF17-Y71M4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SF57RF17-Y71M4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SF57RF17-Y71M4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SF57RF17-Y71M4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SF57RF17-Y71M4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SF57RF17-Y71M4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SF57RF17-Y71M4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SF57RF17-Y63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF57RF17-Y63M4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SF57RF17-Y63M4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SF57RF17-Y63M4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SF57RF17-Y63M4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SF57RF17-Y63M4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SF57RF17-Y63M4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SF57RF17-Y63M4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SF57RF17-Y63M4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
Sf57rf17-y71m4 electric brakesType:
S57rf17-y71m4 foot installation -- slash gearServo motor reducer
Sa57rf17-y71m4 hollow axle installation -- scalding machine
Saf57rf17-y71m4 is thereducing machine for b5 installation snail snails
Saz57rf17-y71m4 is thereducing machine for the b14 aerocentric axle snails
Sf57rf17-y71m4 is thereducing machine for snail snails with a b5 solid core
Sh57rf17-y71m4 is an empty axle lockboard installation - a snail snail brake
Shf57rf17-y71m4 is a b5 franium axle locker installation - a snail braker
Shz57rf17-y71m4 is a b14 franium axle locker installation - a snail snail brake
Sa57/trf17-y71m4 rotation arm hollow axe axis installation - slashed snail snail stifler
Sh57/trf17-y71m4 is an axle locker for the twister arm -- a snail braker
Sa57brf17-y71m4 foot hollow axis installation -- snail snail snail brakes
Sh57brf17-y71m4 foot hollow axle locker installation -- snail snail brake
St57rf17-y71m4 solid axle output twister arm installation -- scalding snail brake

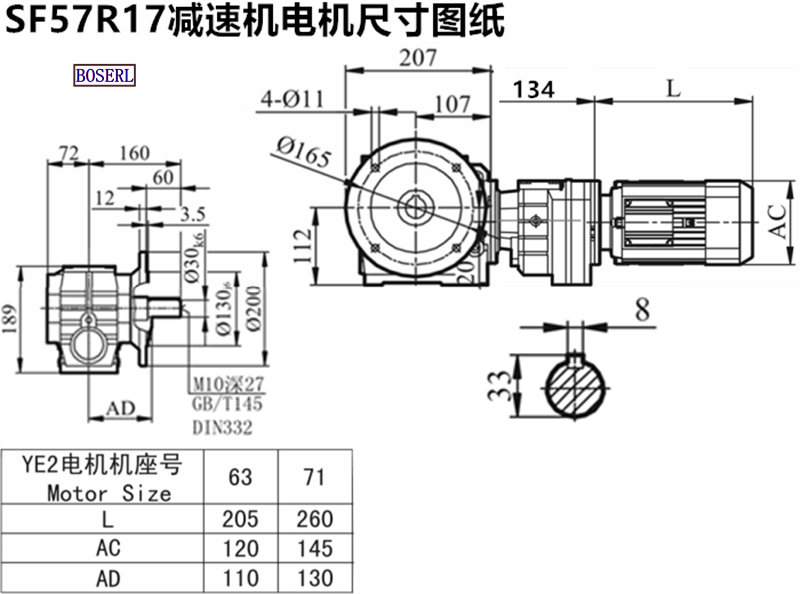

Sf57rf17-y71m4 electric brakesInstall size drawings
Sf57rf17-y71m4 electric brakesProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
