Sf67 speed reduction motorDetailed Information
Keyword: sf67 deviation engine_sf67y0. 18kw_sf67y0. 25kw_sf67 deviation engine _sf67 deviation plant
SF67Y0.18KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67Y0.18KW | 217.41 | 0.18KW | 4.00rpm | 250N.m | 32kg | 10300N | 2.20 |
| SF67Y0.18KW | 190.11 | 0.18KW | 4.60rpm | 220N.m | 32kg | 10400N | 2.50 |
| SF67Y0.18KW | 180.60 | 0.18KW | 4.80rpm | 210N.m | 32kg | 10400N | 2.60 |
SF67Y0.25KWGeared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67Y0.25KW | 217.41 | 0.25KW | 6.00rpm | 245N.m | 36kg | 10300N | 2.10 |
| SF67Y0.25KW | 190.11 | 0.25KW | 6.80rpm | 215N.m | 36kg | 10400N | 2.40 |
| SF67Y0.25KW | 180.60 | 0.25KW | 7.20rpm | 205N.m | 36kg | 10500N | 2.50 |
| SF67Y0.25KW | 158.45 | 0.25KW | 8.20rpm | 187N.m | 36kg | 10500N | 2.80 |
| SF67Y0.25KW | 134.40 | 0.25KW | 9.70rpm | 161N.m | 36kg | 10600N | 3.20 |
| SF67Y0.25KW | 121.33 | 0.25KW | 11.0rpm | 147N.m | 36kg | 10600N | 3.50 |
| SF67Y0.25KW | 106.75 | 0.25KW | 12.0rpm | 131N.m | 36kg | 10700N | 4.00 |
Sf67 reduction motor Type:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

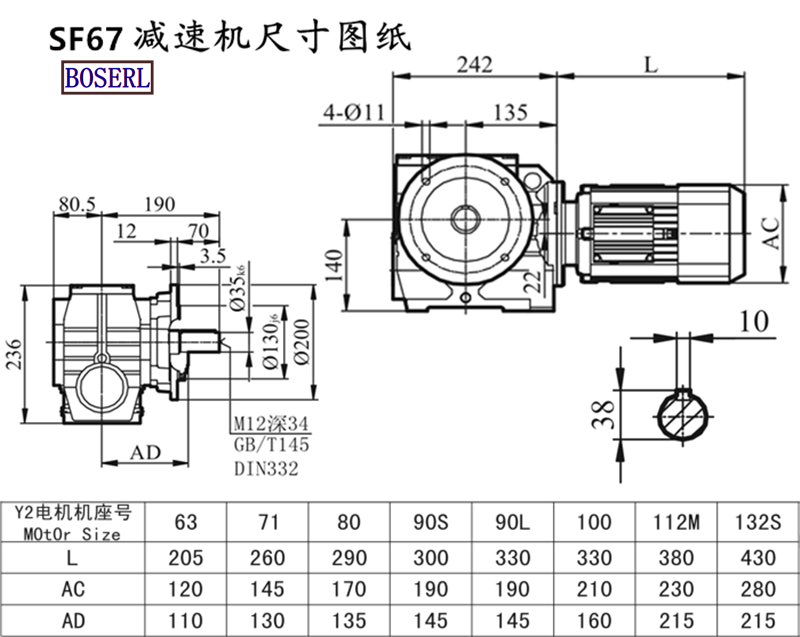

Sf67 reduction motor Install size drawings
Sf67 reduction motor Production plant display: three days' appointment for the factory
Gear reducer and gearboxPresentation of application cases:
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: Sf67 deviation motor sf67y0. 18kw sf67y0. 25kw sf67 deviation machine sf67 deviation manufacturer sf67
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SF67减速机电动机样本 |
|
| SF67减速机电动机三维图纸 |
|
