SF67R37DM80K4Detailed Information
Keyword: 0. 15 kw for the electric gears gear-retarder_sf67r37dm80k4_sf67r37drrs63ms4
SF67R37DM80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DM80K4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| SF67R37DM80K4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| SF67R37DM80K4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| SF67R37DM80K4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |
SF67R37DRS63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DRS63MS4 | 1194 | 0.12KW | 1.20r/min | 585N.m | 40kg | 7990N | 0.95 |
| SF67R37DRS63MS4 | 1045 | 0.12KW | 1.30r/min | 530N.m | 40kg | 8560N | 1.05 |
| SF67R37DRS63MS4 | 914 | 0.12KW | 1.50r/min | 455N.m | 40kg | 9180N | 1.25 |
| SF67R37DRS63MS4 | 809 | 0.12KW | 1.70r/min | 415N.m | 40kg | 9460N | 1.35 |
| SF67R37DRS63MS4 | 712 | 0.12KW | 1.90r/min | 365N.m | 40kg | 9780N | 1.55 |
| SF67R37DRS63MS4 | 615 | 0.12KW | 2.20r/min | 305N.m | 40kg | 10100N | 1.85 |
| SF67R37DRS63MS4 | 543 | 0.12KW | 2.50r/min | 275N.m | 40kg | 10200N | 2.10 |
| SF67R37DRS63MS4 | 469 | 0.12KW | 2.90r/min | 225N.m | 40kg | 10400N | 2.50 |
| SF67R37DRS63MS4 | 424 | 0.12KW | 3.30r/min | 200N.m | 40kg | 10500N | 2.80 |
| SF67R37DRS63MS4 | 365 | 0.12KW | 3.80r/min | 187N.m | 40kg | 10500N | 3.00 |
Sf67r37dm80k4 deviatorsType:
S67r37dm80k4 bottom foot installation - tilt gearServo motor reducer
Sa67r37dm80k4 sky axis installation - tilt snail snail deviator
Saf67r37dm80k4 is areducing machine for b5 installation snails
Saz67r37dm80k4 is thereducing machine for the b14 aerocentric axle snail
Sf67r37dm80k4 is the b5-silver snail deviator
Sh67r37dm80k4 is an empty axle locker installation - a snail-slasher
Shf67r37dm80k4 is a b5 franium axle lock-drive installation - a snail brake
Shz67r37dm80k4 is a b14 flannel axle locker installation - a sledge snail brake
Sa67/tr37dm80k4 rotation arm hollow axis installation -- slough snail brakes
Sh67/tr37dm80k4 is an axle lock-drive installation for a sledge snail
Sa67br37dm80k bottom foot hollow axis installation -- snail snail brakes
Sh67br37dm80k bottom foot axle lock-board installation -- snail snail brake
St67r37dm80k4 solid axe output twister arm installation -- slough snail brake

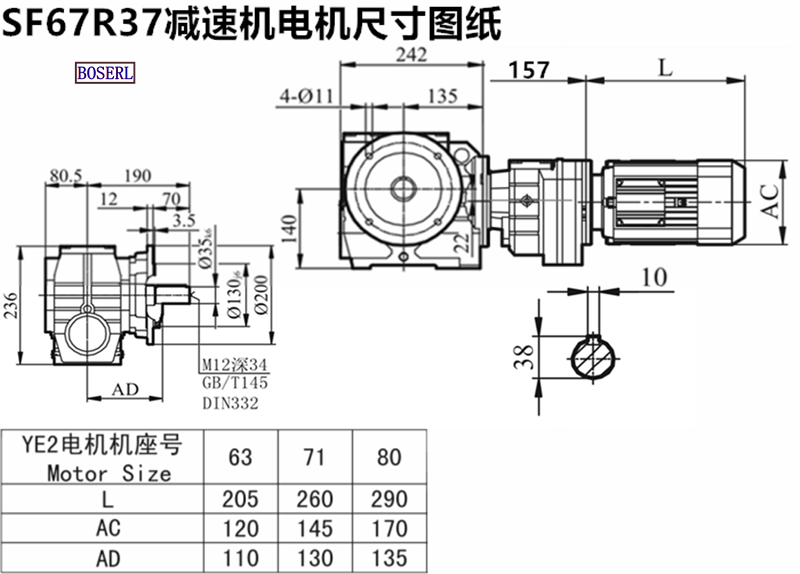

Sf67r37dm80k4 deviatorsInstall size drawings
Sf67r37dm80k4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
