SF67R37DM80S4Detailed Information
Keyword: 0. 18kw for power gears reduction machine_sf67r37dm80s4_sf67r37drrs71ms4
SF67R37DM80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DM80S4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| SF67R37DM80S4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| SF67R37DM80S4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| SF67R37DM80S4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |
SF67R37DRS71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DRS71MS4 | 543 | 0.25KW | 2.40r/min | 650N.m | 44.5kg | 6280N | 0.85 |
| SF67R37DRS71MS4 | 469 | 0.25KW | 2.80r/min | 550N.m | 44.5kg | 8390N | 1.05 |
| SF67R37DRS71MS4 | 424 | 0.25KW | 3.10r/min | 495N.m | 44.5kg | 8880N | 1.15 |
| SF67R37DRS71MS4 | 365 | 0.25KW | 3.60r/min | 440N.m | 44.5kg | 9320N | 1.30 |
| SF67R37DRS71MS4 | 319 | 0.25KW | 4.10r/min | 380N.m | 44.5kg | 9700N | 1.50 |
| SF67R37DRS71MS4 | 281 | 0.25KW | 4.60r/min | 335N.m | 44.5kg | 9960N | 1.70 |
Sf67r37dm80s4 motor deceleratorType:
S67r37dm80s bottom foot installation - slash gearServo motor reducer
Sa67r37dm80s4 hollow axle installation -- scalding snails
Saf67r37dm80s4 is a b5 installation-slash snail brake
Saz67r37dm80s4 is theretarding machine for b14 aerocentric axle snails
Sf67r37dm80s4 is thereducing machine for snail snails with a b5 solid core
Sh67r37dm80s4 is an empty axle lock-drive installation - a snail brake
Shf67r37dm80s4 is a b5 franium axle locker installation - a sledge snail brake
Shz67r37dm80s4 is a b14 franium axle locker installation - a sledge snail brake
Sa67/tr37dm80s4 rotation arm hollow axis installation -- slough snail brakes
Sh67/tr37dm80s4 is an axle locker for the twister arm - a snail brake
Sa67br37dm80s bottom foot hollow axis installation -- scalding snails
Sh67br37dm80s bottom foot hollow axle lock-drive installation -- snail brakes
St67r37dm80s4 solid axis output twirl arm installation -- scalding snail brakes

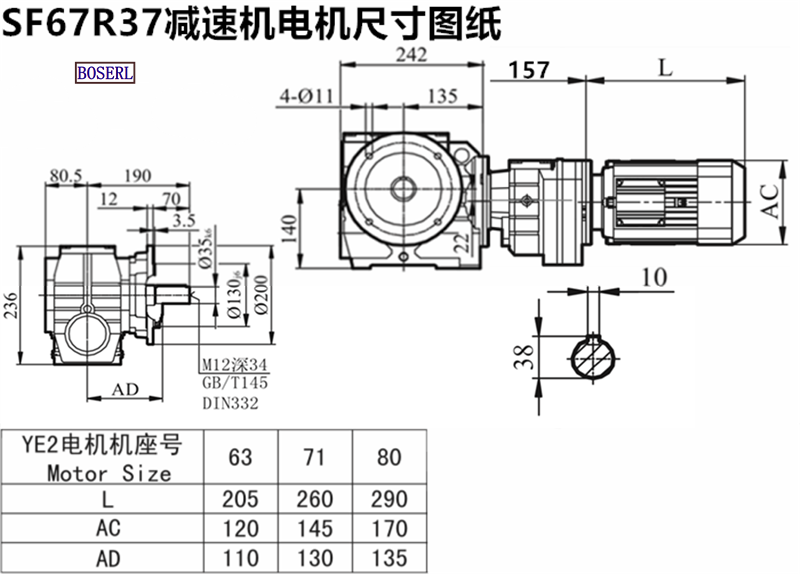

Sf67r37dm80s4 motor deceleratorInstall size drawings
Sf67r37dm80s4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
