SF67R37DT80K4Detailed Information
Keyword: 0. 9 kw for gear deviator _sf67r37dt80k4_sf67r37dr80s4
SF67R37DT80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DT80K4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| SF67R37DT80K4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| SF67R37DT80K4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| SF67R37DT80K4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |
SF67R37DR80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DR80S4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| SF67R37DR80S4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| SF67R37DR80S4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| SF67R37DR80S4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |
Sf67r37dt80k4 motor deceleratorType:
S67r37dt80k bottom foot installation - slash gearServo motor reducer
Sa67r37dt80k4 sky axis installation - tilt snail snail deviator
Saf67r37dt80k4 is a b5 installation-slash snail snail
Saz67r37dt80k4 is thereducing machine for the b14 aerocentric axle snail
Sf67r37dt80k4 is thereducing machine for snail snails with a b5 solid core
Sh67r37dt80k4 is an empty axle locker installation - a sledge snail brake
Shf67r37dt80k4 is a b5 franium axle locker installation - a snail braker
Shz67r37dt80k4 is a b14 franium axle locker installation - a snail braker
Sa67/tr37dt80k4 rotation arm empty axe installation - tilt snail strawl
Sh67/tr37dt80k4 is an axle locker for a sledge snail
Sa67br37dt80k bottom-foot hollow axis installation -- snail snail brakes
Sh67br37dt80k bottom foot hollow axle lock-drive installation -- snail snail brake
St67r37dt80k4 solid axis output twirl arm installation -- scalding snail brake

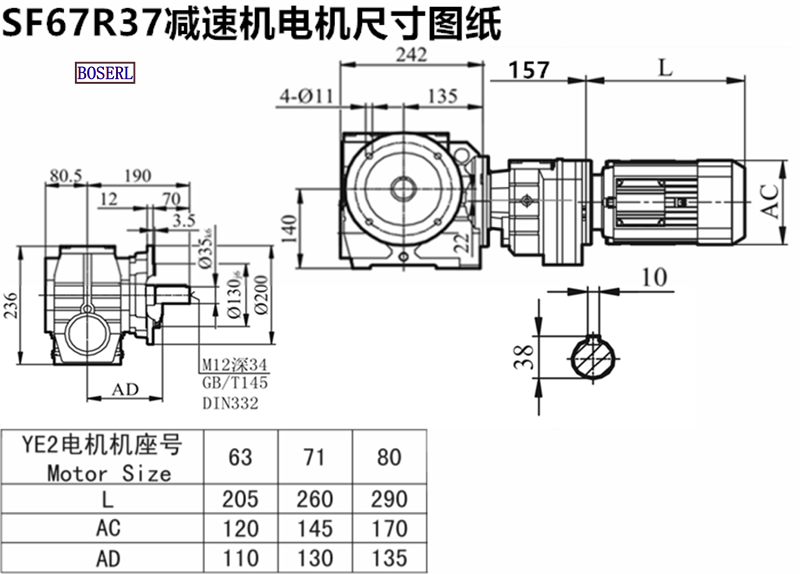

Sf67r37dt80k4 motor deceleratorInstall size drawings
Sf67r37dt80k4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
