SF67R37DT80MK4Detailed Information
Keywords: 1. 1 kw to service the turbo-barrier _sf67r37dt80mk4_sf67r37dr71s4
SF67R37DT80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DT80MK4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| SF67R37DT80MK4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| SF67R37DT80MK4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| SF67R37DT80MK4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |
SF67R37DR71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DR71S4 | 543 | 0.25KW | 2.40r/min | 650N.m | 44.5kg | 6280N | 0.85 |
| SF67R37DR71S4 | 469 | 0.25KW | 2.80r/min | 550N.m | 44.5kg | 8390N | 1.05 |
| SF67R37DR71S4 | 424 | 0.25KW | 3.10r/min | 495N.m | 44.5kg | 8880N | 1.15 |
| SF67R37DR71S4 | 365 | 0.25KW | 3.60r/min | 440N.m | 44.5kg | 9320N | 1.30 |
| SF67R37DR71S4 | 319 | 0.25KW | 4.10r/min | 380N.m | 44.5kg | 9700N | 1.50 |
| SF67R37DR71S4 | 281 | 0.25KW | 4.60r/min | 335N.m | 44.5kg | 9960N | 1.70 |
Sf67r37dt80mk4 deviatorType:
S67r37dt80mk4 foot installation -- slash gearServo motor reducer
Sa67r37dt80mk4 hollow axle installation -- snail snail brake
Saf67r37dt80mk4 is areducing machine for b5 installation snails
Saz67r37dt80mk4 is thereducing machine for the b14 aerocentric axle snails
Sf67r37dt80mk4 is thereducing machine for the b5 solid core
Sh67r37dt80mk4 is an empty axle lockboard installation - a sledge snail brake
Shf67r37dt80mk4 is a b5 franium axle lockboard installation - a snail snail brake
Shz67r37dt80mk4 is a b14 franium axle locker installation - a snail snail brake
Sa67/tr37dt80mk4 rotation arm air axis installation - slash snail snail stifler
Sh67/tr37dt80mk4 is an axle locker for the twister arm - a snail snail decelerator
Sa67br37dt80mk 4 foot hollow axis installation -- snail snail brake
Sh67br37dt80mk 4 bottom foot hollow axle locker installation -- snail brake
St67r37dt80mk4 solid axis export twirl arm installation - sorrow snail stifler

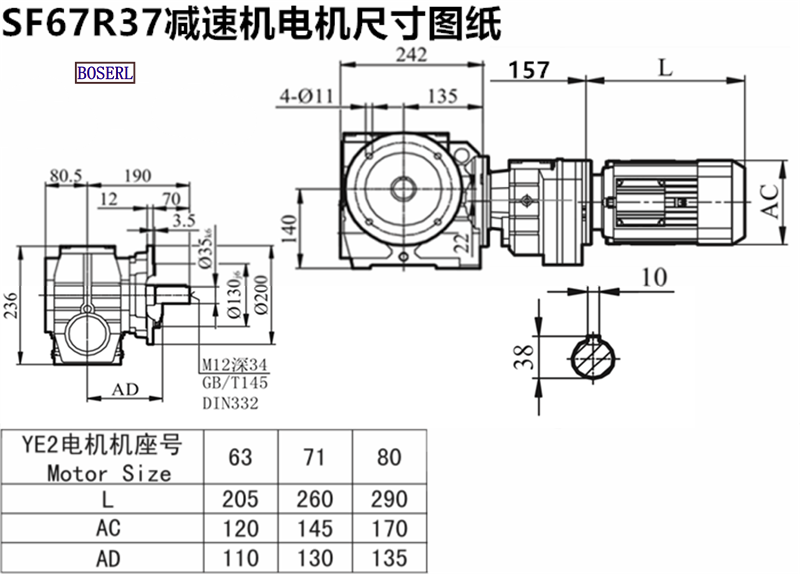

Sf67r37dt80mk4 deviatorInstall size drawings
Sf67r37dt80mk4 deviatorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
