SF67R37DV63M4Detailed Information
Keywords: 84kw for an electric oscillating gear reduction machine_sf67r37dv63m4_sf67r37drn80m4
SF67R37DV63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DV63M4 | 1194 | 0.12KW | 1.20r/min | 585N.m | 40kg | 7990N | 0.95 |
| SF67R37DV63M4 | 1045 | 0.12KW | 1.30r/min | 530N.m | 40kg | 8560N | 1.05 |
| SF67R37DV63M4 | 914 | 0.12KW | 1.50r/min | 455N.m | 40kg | 9180N | 1.25 |
| SF67R37DV63M4 | 809 | 0.12KW | 1.70r/min | 415N.m | 40kg | 9460N | 1.35 |
| SF67R37DV63M4 | 712 | 0.12KW | 1.90r/min | 365N.m | 40kg | 9780N | 1.55 |
| SF67R37DV63M4 | 615 | 0.12KW | 2.20r/min | 305N.m | 40kg | 10100N | 1.85 |
| SF67R37DV63M4 | 543 | 0.12KW | 2.50r/min | 275N.m | 40kg | 10200N | 2.10 |
| SF67R37DV63M4 | 469 | 0.12KW | 2.90r/min | 225N.m | 40kg | 10400N | 2.50 |
| SF67R37DV63M4 | 424 | 0.12KW | 3.30r/min | 200N.m | 40kg | 10500N | 2.80 |
| SF67R37DV63M4 | 365 | 0.12KW | 3.80r/min | 187N.m | 40kg | 10500N | 3.00 |
SF67R37DRN80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DRN80M4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| SF67R37DRN80M4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| SF67R37DRN80M4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| SF67R37DRN80M4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |
Sf67r37dv63m4 motor deceleratorType:
S67r37dv63m4 foot installation -- slash gearServo motor reducer
Sa67r37dv63m4 hollow axle installation -- snail snail brake
Saf67r37dv63m4 is a flange-slash snailreducing machine
Saz67r37dv63m4 is thereducing machine for the b14 aerocentric axle snail
Sf67r37dv63m4 is thereducing machine for the b5 solid core snail
Sh67r37dv63m4 is an empty axle lockboard installation - a snail brake
Shf67r37dv63m4 is a b5 franium axle locker installation - a sledge snail brake
Shz67r37dv63m4 is a b14 flannel axle locker installation - a snail braker
Sa67/tr37dv63m4 rotation arm hollow axis installation -- slough snail brake machine
Sh67/tr37dv63m4 is an axle lock-drive installation of a snail snail snail
Sa67br37dv63m4 foot hollow axis installation -- snail snail snail brakes
Sh67br37dv63m4 bottom foot hollow axle lock-board installation - snail brakes
St67r37dv63m4 solid axe output twister arm installation -- slough snail brakes

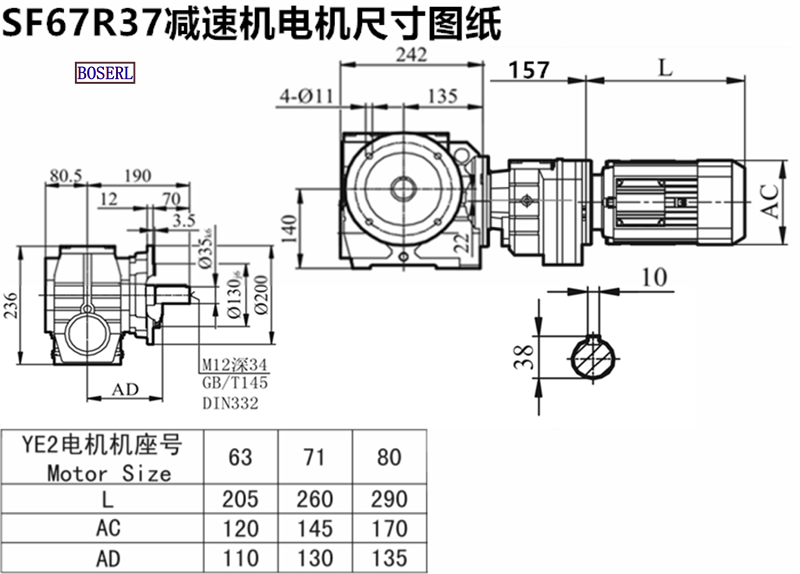

Sf67r37dv63m4 motor deceleratorInstall size drawings
Sf67r37dv63m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
