SF67R37DV71M4Detailed Information
Keyword: 0. 73kw for the electric gears gear-retarder_sf67r37dv71m4_sf67r37drrn63m4
SF67R37DV71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DV71M4 | 365 | 0.37KW | 3.80r/min | 620N.m | 45kg | 7560N | 0.90 |
| SF67R37DV71M4 | 319 | 0.37KW | 4.30r/min | 540N.m | 45kg | 8450N | 1.05 |
| SF67R37DV71M4 | 281 | 0.37KW | 4.90r/min | 475N.m | 45kg | 9030N | 1.20 |
| SF67R37DV71M4 | 246 | 0.37KW | 5.60r/min | 430N.m | 45kg | 9380N | 1.30 |
SF67R37DRN63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DRN63M4 | 1194 | 0.12KW | 1.20r/min | 585N.m | 40kg | 7990N | 0.95 |
| SF67R37DRN63M4 | 1045 | 0.12KW | 1.30r/min | 530N.m | 40kg | 8560N | 1.05 |
| SF67R37DRN63M4 | 914 | 0.12KW | 1.50r/min | 455N.m | 40kg | 9180N | 1.25 |
| SF67R37DRN63M4 | 809 | 0.12KW | 1.70r/min | 415N.m | 40kg | 9460N | 1.35 |
| SF67R37DRN63M4 | 712 | 0.12KW | 1.90r/min | 365N.m | 40kg | 9780N | 1.55 |
| SF67R37DRN63M4 | 615 | 0.12KW | 2.20r/min | 305N.m | 40kg | 10100N | 1.85 |
| SF67R37DRN63M4 | 543 | 0.12KW | 2.50r/min | 275N.m | 40kg | 10200N | 2.10 |
| SF67R37DRN63M4 | 469 | 0.12KW | 2.90r/min | 225N.m | 40kg | 10400N | 2.50 |
| SF67R37DRN63M4 | 424 | 0.12KW | 3.30r/min | 200N.m | 40kg | 10500N | 2.80 |
| SF67R37DRN63M4 | 365 | 0.12KW | 3.80r/min | 187N.m | 40kg | 10500N | 3.00 |
Sf67r37dv71m4 motor deceleratorType:

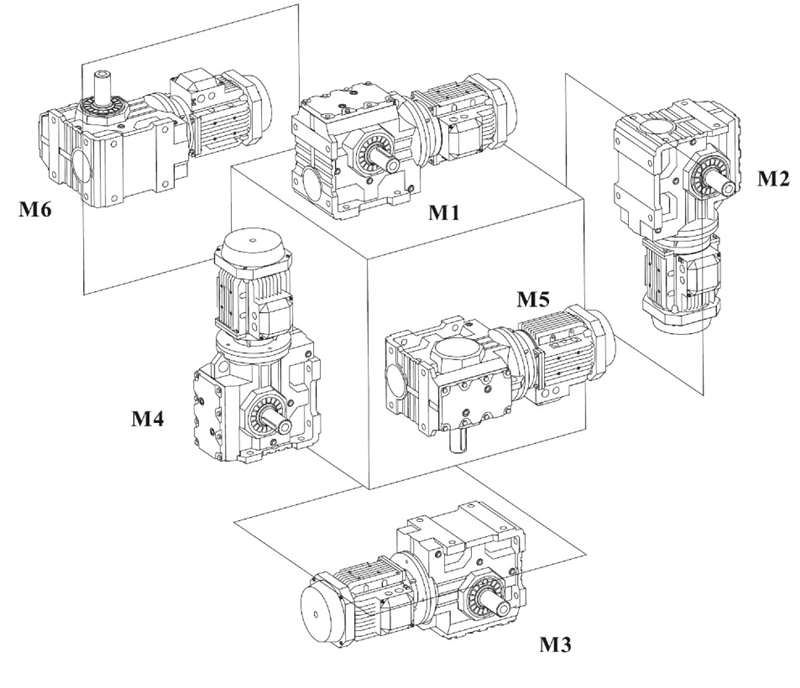

S67r37dv71m4 foot installation -- slash gearServo motor reducer
Sa67r37dv71m4 hollow axle installation -- scalding machine
Saf67r37dv71m4 is a b5 installation-slash snail snail decelerator
Saz67r37dv71m4 is thereducing machine for the b14 aerocentric axle snail
Sf67r37dv71m4 is thereducing machine for snail snails with a b5 solid core
Sh67r37dv71m4 is an empty axle lock-drive installation - a snail brake
Shf67r37dv71m4 is a b5 franium axle lock-drive installation - a snail snail braker
Shz67r37dv71m4 is a b14 flannel axle locker installation - a sledge snail brake
Sa67/tr37dv71m4 rotation arm hollow axis installation -- slough snail brakes
Sh67/tr37dv71m4 is an axle lock-drive installation for a sledge snail
Sa67br37dv71m4 foot hollow axle installation -- snail snail brakes
Sh67br37dv71m4 foot hollow axle lock-drive installation -- snail snail brake
St67r37dv71m4 solid axis output twirl arm installation - scal snail brakes
Sf67r37dv71m4 motor deceleratorInstall size drawings
Sf67r37dv71m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
