SF67R37DVE71S4Detailed Information
Keywords: 30kw for an electric slasherretarder_sf67r37dve71s4_sf67r37drrn63s4
SF67R37DVE71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DVE71S4 | 543 | 0.25KW | 2.40r/min | 650N.m | 44.5kg | 6280N | 0.85 |
| SF67R37DVE71S4 | 469 | 0.25KW | 2.80r/min | 550N.m | 44.5kg | 8390N | 1.05 |
| SF67R37DVE71S4 | 424 | 0.25KW | 3.10r/min | 495N.m | 44.5kg | 8880N | 1.15 |
| SF67R37DVE71S4 | 365 | 0.25KW | 3.60r/min | 440N.m | 44.5kg | 9320N | 1.30 |
| SF67R37DVE71S4 | 319 | 0.25KW | 4.10r/min | 380N.m | 44.5kg | 9700N | 1.50 |
| SF67R37DVE71S4 | 281 | 0.25KW | 4.60r/min | 335N.m | 44.5kg | 9960N | 1.70 |
SF67R37DRN63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DRN63S4 | 1194 | 0.12KW | 1.20r/min | 585N.m | 40kg | 7990N | 0.95 |
| SF67R37DRN63S4 | 1045 | 0.12KW | 1.30r/min | 530N.m | 40kg | 8560N | 1.05 |
| SF67R37DRN63S4 | 914 | 0.12KW | 1.50r/min | 455N.m | 40kg | 9180N | 1.25 |
| SF67R37DRN63S4 | 809 | 0.12KW | 1.70r/min | 415N.m | 40kg | 9460N | 1.35 |
| SF67R37DRN63S4 | 712 | 0.12KW | 1.90r/min | 365N.m | 40kg | 9780N | 1.55 |
| SF67R37DRN63S4 | 615 | 0.12KW | 2.20r/min | 305N.m | 40kg | 10100N | 1.85 |
| SF67R37DRN63S4 | 543 | 0.12KW | 2.50r/min | 275N.m | 40kg | 10200N | 2.10 |
| SF67R37DRN63S4 | 469 | 0.12KW | 2.90r/min | 225N.m | 40kg | 10400N | 2.50 |
| SF67R37DRN63S4 | 424 | 0.12KW | 3.30r/min | 200N.m | 40kg | 10500N | 2.80 |
| SF67R37DRN63S4 | 365 | 0.12KW | 3.80r/min | 187N.m | 40kg | 10500N | 3.00 |
Sf67r37dve71s4 deviatorsType:
S67r37dve71s4 foot installation -- slash gearServo motor reducer
Sa67r37dve71s4 empty axe installation - tilted snail strawl deviator
Saf67r37dve71s4 is areducing machine for b5 installation snails
Saz67r37dve71s4 is a b14 flannel axle installation - a snail brake
Sf67r37dve71s4 is thereducing machine for the b5 solid core snail
Sh67r37dve71s4 is an empty axle lock-drive installation - a snail brake
Shf67r37dve71s4 is a b5 franium axle locker installation - a snail snail brake
Shz67r37dve71s4 is a b14 flannel axle locker installation - a sledge snail brake
Sa67/tr37dve71s4 rotation arm hollow axis installation -- scalding snails
Sh67/tr37dve71s4 is an axle-cracker-slough snail-reducing machine for twisting arms
Sa67br37dve71s 4 foot hollow axis installation -- snail snail snail brake
Sh67br37dve71s4 bottom foot hollow axle lock-board installation -- snail snail brake
St67r37dve71s4 solid axe output twister arm installation -- snail snail brake

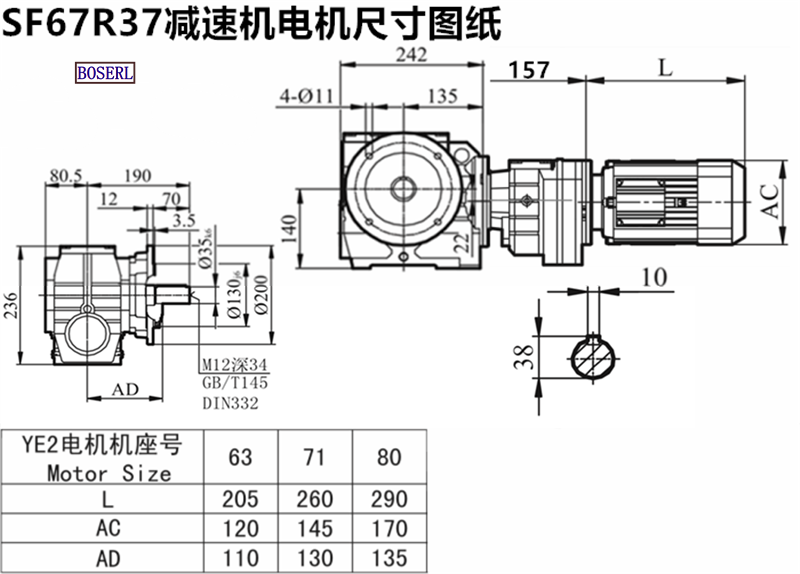

Sf67r37dve71s4 deviatorsInstall size drawings
Sf67r37dve71s4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
