SF67R37DVE80S4Detailed Information
Keywords: 2. 3kw for the electric gear-retarder _sf67r37dve80s4_sf67r37drrn63l4
SF67R37DVE80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DVE80S4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| SF67R37DVE80S4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| SF67R37DVE80S4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| SF67R37DVE80S4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |
SF67R37DRN63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF67R37DRN63L4 | 712 | 0.18KW | 1.90r/min | 600N.m | 40.5kg | 7860N | 0.95 |
| SF67R37DRN63L4 | 615 | 0.18KW | 2.20r/min | 505N.m | 40.5kg | 8800N | 1.15 |
| SF67R37DRN63L4 | 543 | 0.18KW | 2.40r/min | 450N.m | 40.5kg | 9230N | 1.25 |
| SF67R37DRN63L4 | 469 | 0.18KW | 2.80r/min | 375N.m | 40.5kg | 9720N | 1.50 |
| SF67R37DRN63L4 | 424 | 0.18KW | 3.10r/min | 340N.m | 40.5kg | 9930N | 1.65 |
| SF67R37DRN63L4 | 365 | 0.18KW | 3.60r/min | 305N.m | 40.5kg | 10100N | 1.85 |
Sf67r37dve80s4 motor deceleratorType:
S67r37dve80s4 foot installation -- slash gearServo motor reducer
Sa67r37dve80s4 sky axis installation -- snail snail brakes
Saf67r37dve80s4 is areducing machine for b5 installation snails
Saz67r37dve80s4 is a b14 flannel axle installation - a snail brake
Sf67r37dve80s4 is thereducing machine for the b5 solid core snail
Sh67r37dve80s4 is an empty axle lockboard installation - a snail brake
Shf67r37dve80s4 is a b5 franium axle locker installation - a snail-slasher
Shz67r37dve80s4 is a b14 franium axle locker installation - a sledge snail brake
Sa67/tr37dve80s4 rotation arm hollow axis installation -- scalding snails
Sh67/tr37dve80s4 is an axle locker for the twister arm -- a snail brake
Sa67br37dve80s bottom foot hollow axis installation -- snail snail brakes
Sh67br37dve80s4 bottom foot hollow axle lock-board installation -- snail snail brake
St67r37dve80s4 solid axis export rotation arm installation - slash gear snail stifler

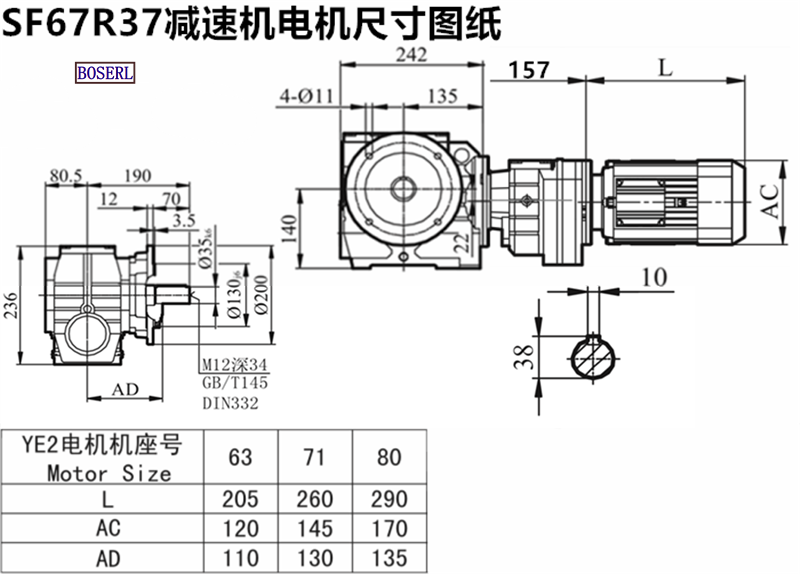

Sf67r37dve80s4 motor deceleratorInstall size drawings
Sf67r37dve80s4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
