Sf77 motor speed reduction machineDetailed Information

Sf77 motor speed reduction machine
prevnext

Sf77 motor speed reduction machine

TEL：Email:[email protected]
  1. 详细信息

Keywords: sf77 motor decelerator _sf77y2. 2kw_sf77y3kw_sf77 electric motor _sf77 electric motor manufacturer _sf77 electric motor manufacturer

SF77Y2.2KWGeared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SF77Y2.2KW130.002.2KW11.0rpm1370N.m82kg7440N0.90
SF77Y2.2KW123.202.2KW12.0rpm1300N.m82kg11300N0.90
SF77Y2.2KW107.832.2KW13.0rpm1150N.m82kg12700N1.00
SF77Y2.2KW97.142.2KW15.0rpm1040N.m82kg13500N1.10
SF77Y2.2KW85.222.2KW17.0rpm920N.m82kg14100N1.20
SF77Y2.2KW75.202.2KW19.0rpm820N.m82kg13800N1.30
SF77Y2.2KW66.672.2KW21.0rpm735N.m82kg13500N1.40
SF77Y2.2KW63.032.2KW23.0rpm795N.m82kg12400N1.40
SF77Y2.2KW56.922.2KW25.0rpm635N.m82kg13100N1.55
SF77Y2.2KW53.872.2KW26.0rpm685N.m82kg12100N1.60
SF77Y2.2KW49.382.2KW29.0rpm630N.m82kg11900N1.75
SF77Y2.2KW43.332.2KW33.0rpm555N.m82kg11700N2.00
SF77Y2.2KW41.072.2KW35.0rpm525N.m82kg11500N2.10
SF77Y2.2KW35.942.2KW40.0rpm460N.m82kg11300N2.40
SF77Y2.2KW32.382.2KW44.0rpm420N.m82kg11000N2.60
SF77Y2.2KW28.412.2KW50.0rpm370N.m82kg10700N2.80
SF77Y2.2KW25.072.2KW57.0rpm325N.m82kg10400N3.10
SF77Y2.2KW22.892.2KW62.0rpm305N.m82kg9470N2.30
SF77Y2.2KW20.992.2KW68.0rpm280N.m82kg9320N2.50

SF77Y3KWGeared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SF77Y3KW85.223KW17.0rpm1240N.m85kg11900N0.90
SF77Y3KW75.203KW19.0rpm1100N.m85kg12500N0.95
SF77Y3KW66.673KW22.0rpm980N.m85kg12300N1.05
SF77Y3KW63.033KW23.0rpm1060N.m85kg10900N1.05
SF77Y3KW56.923KW26.0rpm850N.m85kg12000N1.15
SF77Y3KW53.873KW27.0rpm910N.m85kg10800N1.20
SF77Y3KW49.383KW29.0rpm840N.m85kg10800N1.30
SF77Y3KW43.333KW34.0rpm740N.m85kg10600N1.50
SF77Y3KW41.073KW35.0rpm705N.m85kg10600N1.55
SF77Y3KW35.943KW40.0rpm620N.m85kg10400N1.75
SF77Y3KW32.383KW45.0rpm560N.m85kg10200N1.95
SF77Y3KW28.413KW51.0rpm490N.m85kg10000N2.10
SF77Y3KW25.073KW58.0rpm435N.m85kg9770N2.30
SF77Y3KW22.893KW64.0rpm410N.m85kg8640N1.70
SF77Y3KW20.993KW69.0rpm375N.m85kg8550N1.85
SF77Y3KW18.423KW79.0rpm330N.m85kg8400N2.10
SF77Y3KW17.453KW83.0rpm315N.m85kg8340N2.20
SF77Y3KW15.283KW95.0rpm275N.m85kg8160N2.60
SF77Y3KW13.763KW106rpm250N.m85kg8010N2.80
SF77Y3KW12.073KW121rpm220N.m85kg7810N3.30
SF77Y3KW10.653KW137rpm195N.m85kg7610N3.70

Sf77 motor reduction machineType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

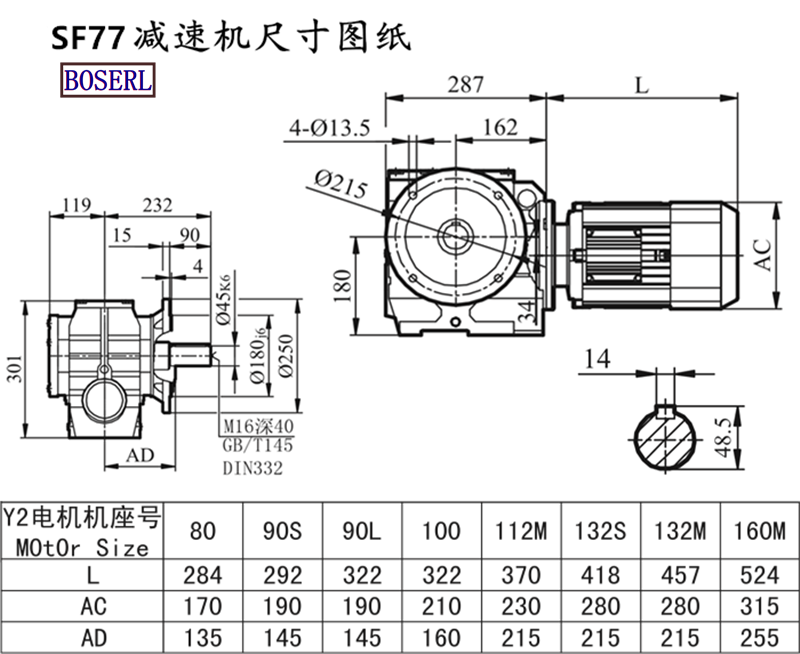

Sf77 motor reduction machineInstall size drawings


wireless image_2020525095000.png

Sf77 motor reduction machineProduction plant display: three days' appointment for the factory

Gear reducer and gearboxPresentation of application cases:

Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor

SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer

SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
