Sf77 motor speed retarderDetailed Information

Sf77 motor speed retarder
prevnext

Sf77 motor speed retarder

TEL：Email:[email protected]
  1. 详细信息

Keywords: sf77 motor decelerator _sf77y100m4 _sf77y112m4 _sf77 motor decelerator generator

SF77Y100M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SF77Y100M4130.002.2KW11.0rpm1370N.m82kg7440N0.90
SF77Y100M4123.202.2KW12.0rpm1300N.m82kg11300N0.90
SF77Y100M4107.832.2KW13.0rpm1150N.m82kg12700N1.00
SF77Y100M497.142.2KW15.0rpm1040N.m82kg13500N1.10
SF77Y100M485.222.2KW17.0rpm920N.m82kg14100N1.20
SF77Y100M475.202.2KW19.0rpm820N.m82kg13800N1.30
SF77Y100M466.672.2KW21.0rpm735N.m82kg13500N1.40
SF77Y100M463.032.2KW23.0rpm795N.m82kg12400N1.40
SF77Y100M456.922.2KW25.0rpm635N.m82kg13100N1.55
SF77Y100M453.872.2KW26.0rpm685N.m82kg12100N1.60
SF77Y100M449.382.2KW29.0rpm630N.m82kg11900N1.75
SF77Y100M443.332.2KW33.0rpm555N.m82kg11700N2.00
SF77Y100M441.072.2KW35.0rpm525N.m82kg11500N2.10
SF77Y100M435.942.2KW40.0rpm460N.m82kg11300N2.40
SF77Y100M432.382.2KW44.0rpm420N.m82kg11000N2.60
SF77Y100M428.412.2KW50.0rpm370N.m82kg10700N2.80
SF77Y100M425.072.2KW57.0rpm325N.m82kg10400N3.10
SF77Y100M422.892.2KW62.0rpm305N.m82kg9470N2.30
SF77Y100M420.992.2KW68.0rpm280N.m82kg9320N2.50

SF77Y112M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SF77Y112M456.924KW26.0rpm1130N.m96kg10800N0.85
SF77Y112M453.874KW27.0rpm1210N.m96kg9280N0.90
SF77Y112M449.384KW30.0rpm1120N.m96kg9330N1.00
SF77Y112M443.334KW34.0rpm980N.m96kg9370N1.10
SF77Y112M441.074KW36.0rpm930N.m96kg9370N1.15
SF77Y112M435.944KW41.0rpm820N.m96kg9330N1.35
SF77Y112M432.384KW45.0rpm745N.m96kg9270N1.45
SF77Y112M428.414KW51.0rpm655N.m96kg9160N1.60
SF77Y112M425.074KW58.0rpm580N.m96kg9040N1.75
SF77Y112M422.894KW64.0rpm545N.m96kg7650N1.30
SF77Y112M420.994KW70.0rpm500N.m96kg7640N1.40
SF77Y112M418.424KW79.0rpm440N.m96kg7600N1.60
SF77Y112M417.454KW84.0rpm420N.m96kg7580N1.70
SF77Y112M415.284KW96.0rpm365N.m96kg7490N1.90
SF77Y112M413.764KW106rpm330N.m96kg7400N2.10
SF77Y112M412.074KW121rpm290N.m96kg7280N2.40

Sf77 motor retarderType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

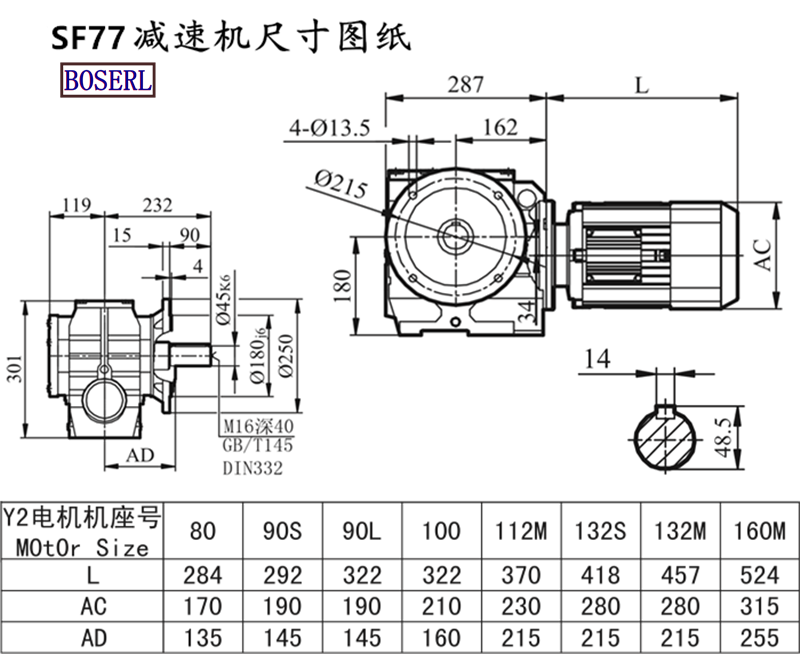

Sf77 motor retarderInstall size drawings


wireless image_2020525095000.png

Sf77 motor retarderProduction plant display: three days' appointment for the factory

Gear reducer and gearboxPresentation of application cases:

Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor

SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer

SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW



标签:   sf77 motor-reducing device  sf77y100m4 sf77y112m4 sf77 motor-reducing unit
tags：    sf77 motor-reducing device    sf77y100m4   sf77y112m4   sf77 motor-reducing unit
