SF77DRE90L4Detailed Information

SF77DRE90L4
prevnext

SF77DRE90L4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 37kw variable-frequency-retarder electro-one

SF77DRE90L4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SF77DRE90L4189.091.5KW7.60rpm1310N.m73kg11300N0.95
SF77DRE90L4161.601.5KW8.80rpm1130N.m73kg12800N1.10
SF77DRE90L4148.151.5KW9.60rpm1050N.m73kg13500N1.20
SF77DRE90L4130.001.5KW11.0rpm930N.m73kg14200N1.30
SF77DRE90L4123.201.5KW12.0rpm880N.m73kg14500N1.35
SF77DRE90L4107.831.5KW13.0rpm785N.m73kg15000N1.50
SF77DRE90L497.141.5KW15.0rpm710N.m73kg15300N1.60
SF77DRE90L485.221.5KW17.0rpm630N.m73kg15400N1.75
SF77DRE90L475.091.5KW19.0rpm635N.m73kg14100N1.70
SF77DRE90L471.331.5KW20.0rpm605N.m73kg14000N1.80
SF77DRE90L466.671.5KW21.0rpm500N.m73kg14500N2.10
SF77DRE90L463.031.5KW23.0rpm540N.m73kg13600N2.00
SF77DRE90L456.921.5KW25.0rpm430N.m73kg14000N2.30
SF77DRE90L453.871.5KW27.0rpm465N.m73kg13200N2.40
SF77DRE90L449.381.5KW29.0rpm425N.m73kg12900N2.60
SF77DRE90L443.331.5KW33.0rpm375N.m73kg12500N2.90

SF77DVE90L4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SF77DVE90L4189.091.5KW7.60rpm1310N.m73kg11300N0.95
SF77DVE90L4161.601.5KW8.80rpm1130N.m73kg12800N1.10
SF77DVE90L4148.151.5KW9.60rpm1050N.m73kg13500N1.20
SF77DVE90L4130.001.5KW11.0rpm930N.m73kg14200N1.30
SF77DVE90L4123.201.5KW12.0rpm880N.m73kg14500N1.35
SF77DVE90L4107.831.5KW13.0rpm785N.m73kg15000N1.50
SF77DVE90L497.141.5KW15.0rpm710N.m73kg15300N1.60
SF77DVE90L485.221.5KW17.0rpm630N.m73kg15400N1.75
SF77DVE90L475.091.5KW19.0rpm635N.m73kg14100N1.70
SF77DVE90L471.331.5KW20.0rpm605N.m73kg14000N1.80
SF77DVE90L466.671.5KW21.0rpm500N.m73kg14500N2.10
SF77DVE90L463.031.5KW23.0rpm540N.m73kg13600N2.00
SF77DVE90L456.921.5KW25.0rpm430N.m73kg14000N2.30
SF77DVE90L453.871.5KW27.0rpm465N.m73kg13200N2.40
SF77DVE90L449.381.5KW29.0rpm425N.m73kg12900N2.60
SF77DVE90L443.331.5KW33.0rpm375N.m73kg12500N2.90

Sf77dre90l4 deviatorsType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

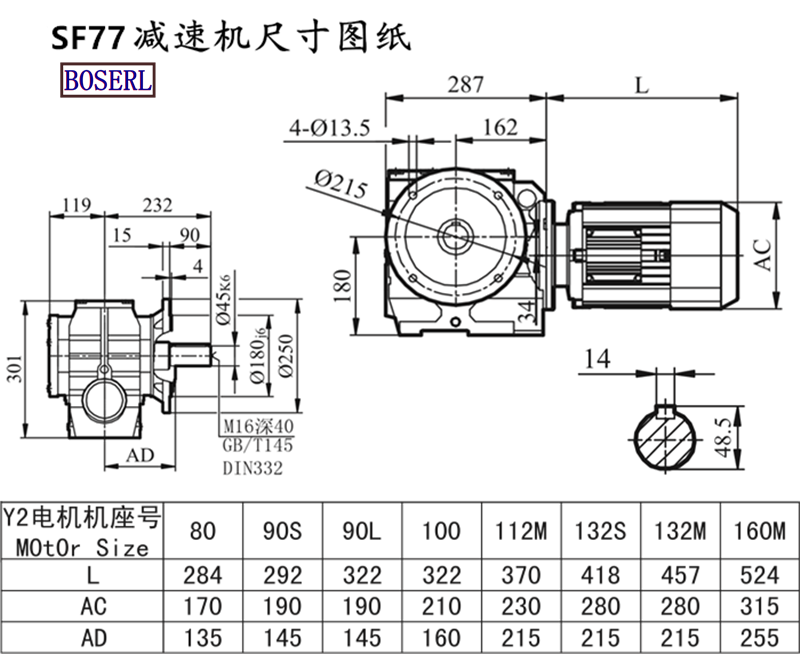

Sf77dre90l4 deviatorsInstall size drawings


wireless image_2020525095000.png

Sf77dre90l4 deviatorsProduction plant display: three days' appointment for the factory

Gear reducer and gearboxPresentation of application cases:

Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor

SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer

SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
