SF87R57DM63MS4Detailed Information
Keywords: 200kw server slash gear brakes_sf87r57dm63ms4_sf87r57drrs90l4
SF87R57DM63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DM63MS4 | 6706 | 0.12KW | 0.21r/min | 2690N.m | 123.5kg | 27100N | 0.95 |
| SF87R57DM63MS4 | 5875 | 0.12KW | 0.23r/min | 2400N.m | 123.5kg | 27700N | 1.05 |
| SF87R57DM63MS4 | 5187 | 0.12KW | 0.27r/min | 1980N.m | 123.5kg | 28500N | 1.25 |
| SF87R57DM63MS4 | 4606 | 0.12KW | 0.30r/min | 1760N.m | 123.5kg | 28800N | 1.40 |
| SF87R57DM63MS4 | 3872 | 0.12KW | 0.36r/min | 1460N.m | 123.5kg | 29200N | 1.70 |
SF87R57DRS90L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRS90L4 | 485 | 1.5KW | 3.00r/min | 3050N.m | 141kg | 17700N | 0.80 |
| SF87R57DRS90L4 | 435 | 1.5KW | 3.30r/min | 2770N.m | 141kg | 26100N | 0.90 |
| SF87R57DRS90L4 | 378 | 1.5KW | 3.80r/min | 2440N.m | 141kg | 27600N | 1.00 |
| SF87R57DRS90L4 | 323 | 1.5KW | 4.40r/min | 2120N.m | 141kg | 28200N | 1.15 |
| SF87R57DRS90L4 | 281 | 1.5KW | 5.10r/min | 1860N.m | 141kg | 28700N | 1.30 |
| SF87R57DRS90L4 | 255 | 1.5KW | 5.60r/min | 1990N.m | 141kg | 28400N | 1.00 |
| SF87R57DRS90L4 | 222 | 1.5KW | 6.40r/min | 1740N.m | 141kg | 28800N | 1.15 |
| SF87R57DRS90L4 | 205 | 1.5KW | 7.00r/min | 1620N.m | 141kg | 29000N | 1.20 |
Sf87r57dm63ms4 deviatorsType:
S87r57dm63ms4 foot installation -- slash gearServo motor reducer
Sa87r57dm63ms4 sky axes installation - slashed snail snail deviator
Saf87r57dm63ms4 is a flange b5 installation - snail-slash snail decelerator
Saz87r57dm63ms4 is theretarding machine for the b14 aerocentric axle snail
Sf87r57dm63ms4 is thereducing machine for snail snails with a b5 solid core
Sh87r57dm63ms4 is an empty axle lock-drive installation - a snail-slasher
Shf87r57dm63ms4 is a b5 franium axle locker installation - a snail braker
Shz87r57dm63ms4 is a b14 flannel axle locker installation - a sledge snail brake
Sa87/tr57dm63ms4 rotation arm hollow axis installation - scalding snails
Sh87/tr57dm63ms4 is an axle lock-drive installation of a snail snail brake
Sa87br57dm63ms4 foot hollow axle installation -- snail snail brakes
Sh87br57dm63ms4 foot hollow axle lock-drive installation - snail brakes
St87r57dm63ms4 solid axe output twister arm installation -- slough snail brake

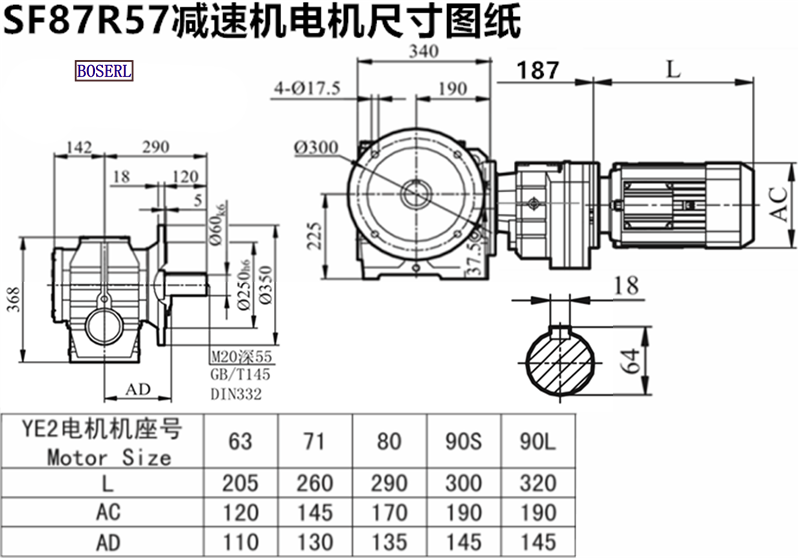

Sf87r57dm63ms4 deviatorsInstall size drawings
Sf87r57dm63ms4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
