SF87R57DT80N4Detailed Information
Keywords: 0. 2 kw server slash gearbox_sf87r57dt80n4_sf87r57dr90s4
SF87R57DT80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DT80N4 | 1032 | 0.75KW | 1.40r/min | 2940N.m | 134kg | 21700N | 0.85 |
| SF87R57DT80N4 | 930 | 0.75KW | 1.50r/min | 2710N.m | 134kg | 27000N | 0.90 |
| SF87R57DT80N4 | 831 | 0.75KW | 1.70r/min | 2450N.m | 134kg | 27600N | 1 .00 |
| SF87R57DT80N4 | 719 | 0.75KW | 2.00r/min | 2130N.m | 134kg | 28200N | 1.15 |
| SF87R57DT80N4 | 624 | 0.75KW | 2.30r/min | 1860N.m | 134kg | 28700N | 1.35 |
| SF87R57DT80N4 | 558 | 0.75KW | 2.60r/min | 1680N.m | 134kg | 28900N | 1.50 |
| SF87R57DT80N4 | 435 | 0.75KW | 3.30r/min | 1340N.m | 134kg | 29300N | 1.80 |
| SF87R57DT80N4 | 323 | 0.75KW | 4.40r/min | 1030N.m | 134kg | 29700N | 2.30 |
SF87R57DR90S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DR90S4 | 624 | 1.1KW | 2.30r/min | 2800N.m | 138kg | 25500N | 0.90 |
| SF87R57DR90S4 | 558 | 1.1KW | 2.60r/min | 2530N.m | 138kg | 27400N | 1.00 |
| SF87R57DR90S4 | 485 | 1.1KW | 2.90r/min | 2230N.m | 138kg | 28000N | 1.10 |
| SF87R57DR90S4 | 435 | 1.1KW | 3.30r/min | 2030N.m | 138kg | 28400N | 1.20 |
| SF87R57DR90S4 | 378 | 1.1KW | 3.80r/min | 1780N.m | 138kg | 28800N | 1.35 |
| SF87R57DR90S4 | 323 | 1.1KW | 4.40r/min | 1550N.m | 138kg | 29100N | 1.55 |
| SF87R57DR90S4 | 281 | 1.1KW | 5.00r/min | 1360N.m | 138kg | 29300N | 1.75 |
| SF87R57DR90S4 | 255 | 1.1KW | 5.60r/min | 1450N.m | 138kg | 29200N | 1.35 |
| SF87R57DR90S4 | 222 | 1.1KW | 6.40r/min | 1270N.m | 138kg | 29400N | 1.55 |
| SF87R57DR90S4 | 205 | 1.1KW | 6.90r/min | 1190N.m | 138kg | 29500N | 1.65 |
Sf87r57dt80n4 deviatorType:
S87r57dt80n4 foot installation -- slash gearServo motor reducer
Sa87r57dt80n4 sky axis installation -- snail snail brakes
Saf87r57dt80n4 is a flange b5 installation-slash snail brake
Saz87r57dt80n4 is theretarding machine for the b14 aerocentric axle snail
Sf87r57dt80n4 is a ff5-slasher snail
Sh87r57dt80n4 is an empty axle locker installation - a snail brake
Shf87r57dt80n4 is a b5 franium axle locker installation - a sledge snail brake
Shz87r57dt80n4 is a b14 flannel axle locker installation - a snail braker
Sa87/tr57dt80n4 rotation arm hollow axis installation -- scalding snail brakes
Sh87/tr57dt80n4 is an axle lock lock installation for the twister arm -- a snail braker
Sa87br57dt80n4 foot hollow axis installation -- snail snail brakes
Sh87br57dt80n4 bottom foot hollow axle lock-drive installation -- snail-slasher
St87r57dt80n4 solid axis output twister arm installation -- scald snail brakes

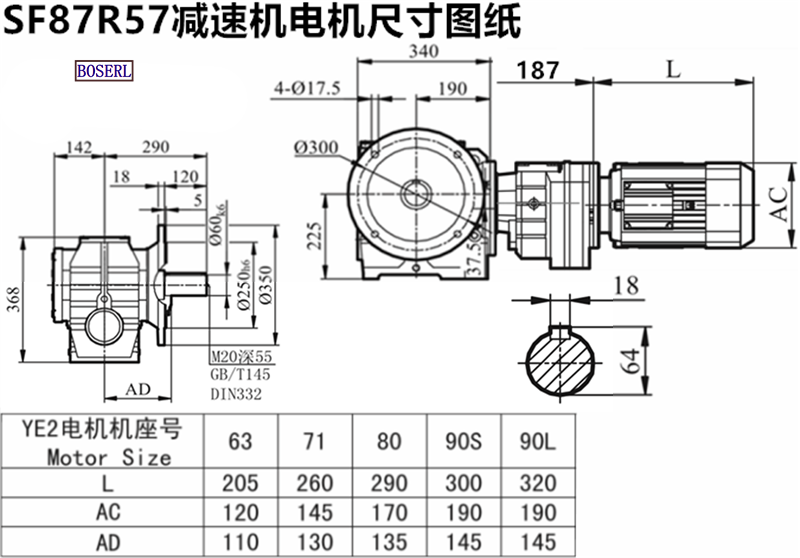

Sf87r57dt80n4 deviatorInstall size drawings
Sf87r57dt80n4 deviatorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
