SF87R57DT90L4Detailed Information
Keywords: 0. 32 kw for an electric slasher gear reduction box_sf87r57dt90l4_sf87r57dr63l4
SF87R57DT90L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DT90L4 | 485 | 1.5KW | 3.00r/min | 3050N.m | 141kg | 17700N | 0.80 |
| SF87R57DT90L4 | 435 | 1.5KW | 3.30r/min | 2770N.m | 141kg | 26100N | 0.90 |
| SF87R57DT90L4 | 378 | 1.5KW | 3.80r/min | 2440N.m | 141kg | 27600N | 1.00 |
| SF87R57DT90L4 | 323 | 1.5KW | 4.40r/min | 2120N.m | 141kg | 28200N | 1.15 |
| SF87R57DT90L4 | 281 | 1.5KW | 5.10r/min | 1860N.m | 141kg | 28700N | 1.30 |
| SF87R57DT90L4 | 255 | 1.5KW | 5.60r/min | 1990N.m | 141kg | 28400N | 1.00 |
| SF87R57DT90L4 | 222 | 1.5KW | 6.40r/min | 1740N.m | 141kg | 28800N | 1.15 |
| SF87R57DT90L4 | 205 | 1.5KW | 7.00r/min | 1620N.m | 141kg | 29000N | 1.20 |
SF87R57DR63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DR63L4 | 4606 | 0.18KW | 0.29r/min | 3010N.m | 124kg | 19200N | 0.85 |
| SF87R57DR63L4 | 3872 | 0.18KW | 0.34r/min | 2510N.m | 124kg | 27500N | 1.00 |
| SF87R57DR63L4 | 3475 | 0.18KW | 0.38r/min | 2420N.m | 124kg | 27700N | 1.05 |
| SF87R57DR63L4 | 2905 | 0.18KW | 0.45r/min | 2030N.m | 124kg | 28400N | 1.25 |
| SF87R57DR63L4 | 2586 | 0.18KW | 0.51r/min | 1760N.m | 124kg | 28800N | 1.40 |
| SF87R57DR63L4 | 2335 | 0.18KW | 0.57r/min | 1570N.m | 124kg | 29100N | 1.60 |
| SF87R57DR63L4 | 2054 | 0.18KW | 0.64r/min | 1360N.m | 124kg | 29300N | 1.85 |
| SF87R57DR63L4 | 1824 | 0.18KW | 0.72r/min | 1200N.m | 124kg | 29500N | 2.10 |
| SF87R57DR63L4 | 1631 | 0.18KW | 0.81r/min | 1080N.m | 124kg | 29600N | 2.30 |
Sf87r57dt90l4 deviatorType:
S87r57dt90l4 foot installation - slash gearServo motor reducer
Sa87r57dt90l4 sky axe installation - tilt snail strangler
Saf87r57dt90l4 is a flange b5 installation-slash snail brake
Saz87r57dt90l4 is thereducing machine for the b14 aerocentric axle snail
Sf87r57dt90l4 is a ff5-slash-carve snail decelerator
Sh87r57dt90l4 is an empty axle lock-drive installation - a snail brake
Shf87r57dt90l4 is a b5-farland axle locker installation - a sledge snail brake
Shz87r57dt90l4 is a b14 flannel axle locker installation -- a snail braker
Sa87/tr57dt90l4 fulfilling of an empty axis of a twister arm -- snail-slasher
Sh87/tr57dt90l4 is an empty axle locker installation for a sledge snail
Sa87br57dt90l4 bottom foot hollow axis installation -- snail snail brakes
Sh87br57dt90l4 foot hollow axle lock-drive installation -- snail brakes snails
St87r57dt90l4 solid axis export twirl arm installation - tilt snail snail deviator

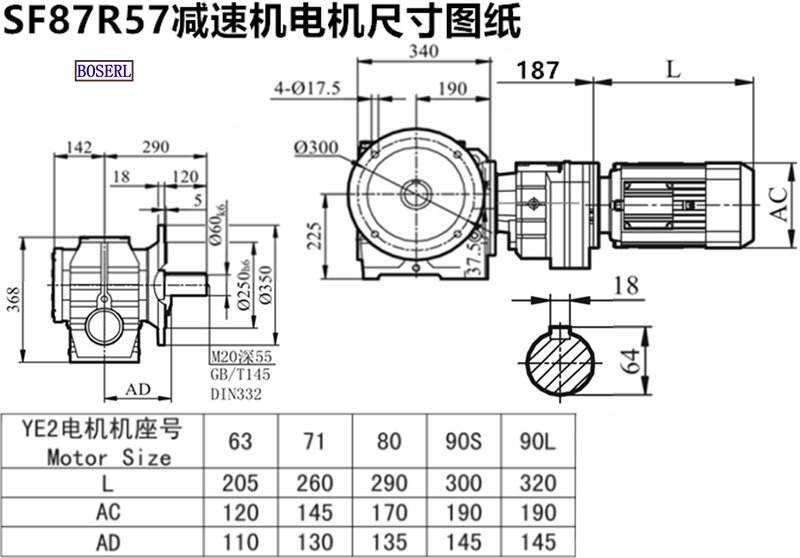

Sf87r57dt90l4 deviatorInstall size drawings
Sf87r57dt90l4 deviatorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
