SF87R57DV63S4Detailed Information
Keywords: 22kw for an electric slasherbox_sf87r57dv63s4_sf87r57dre80n4
SF87R57DV63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DV63S4 | 6706 | 0.12KW | 0.21r/min | 2690N.m | 123.5kg | 27100N | 0.95 |
| SF87R57DV63S4 | 5875 | 0.12KW | 0.23r/min | 2400N.m | 123.5kg | 27700N | 1.05 |
| SF87R57DV63S4 | 5187 | 0.12KW | 0.27r/min | 1980N.m | 123.5kg | 28500N | 1.25 |
| SF87R57DV63S4 | 4606 | 0.12KW | 0.30r/min | 1760N.m | 123.5kg | 28800N | 1.40 |
| SF87R57DV63S4 | 3872 | 0.12KW | 0.36r/min | 1460N.m | 123.5kg | 29200N | 1.70 |
SF87R57DRE80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRE80N4 | 1032 | 0.75KW | 1.40r/min | 2940N.m | 134kg | 21700N | 0.85 |
| SF87R57DRE80N4 | 930 | 0.75KW | 1.50r/min | 2710N.m | 134kg | 27000N | 0.90 |
| SF87R57DRE80N4 | 831 | 0.75KW | 1.70r/min | 2450N.m | 134kg | 27600N | 1 .00 |
| SF87R57DRE80N4 | 719 | 0.75KW | 2.00r/min | 2130N.m | 134kg | 28200N | 1.15 |
| SF87R57DRE80N4 | 624 | 0.75KW | 2.30r/min | 1860N.m | 134kg | 28700N | 1.35 |
| SF87R57DRE80N4 | 558 | 0.75KW | 2.60r/min | 1680N.m | 134kg | 28900N | 1.50 |
| SF87R57DRE80N4 | 435 | 0.75KW | 3.30r/min | 1340N.m | 134kg | 29300N | 1.80 |
| SF87R57DRE80N4 | 323 | 0.75KW | 4.40r/min | 1030N.m | 134kg | 29700N | 2.30 |
Sf87r57dv63s4 deviatorsType:
S87r57dv63s4 foot installation -- slash gearServo motor reducer
Sa87r57dv63s4 sky axe installation - tilt snail snailing machine
Saf87r57dv63s4 is thereducing machine for b5 installation snails
Saz87r57dv63s4 is thereducing machine for the b14 aerocentric axle snail snail
Sf87r57dv63s4 is thereducing machine for snail snails with a b5 solid core
Sh87r57dv63s4 is an empty axle lock-drive installation - a snail brake
Shf87r57dv63s4 is a b5 franium axle locker installation - a snail brake
Shz87r57dv63s4 is a b14 franium axle locker installation - a snail brake
Sa87/tr57dv63s4 rotation arm hollow axis installation -- scalding snails
Sh87/tr57dv63s4 is a swirling arm hollow axle locker installation - a snail braker
Sa87br57dv63s4 foot hollow axis installation -- snail snail snail brakes
Sh87br57dv63s4 foot hollow axle lock-drive installation -- snail-slash snail brake
St87r57dv63s4 solid axial output twister arm installation -- scald snail brakes

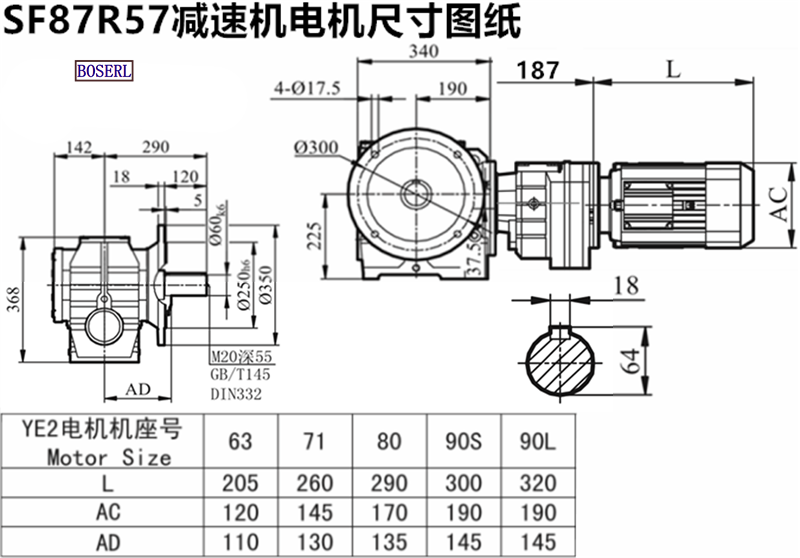

Sf87r57dv63s4 deviatorsInstall size drawings
Sf87r57dv63s4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
