SF87R57DV71D4Detailed Information
Keywords: 18. 5 kw server oscillating gear reduction box_sf87r57dv71d4_sf87r57dre80s4
SF87R57DV71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DV71D4 | 2054 | 0.37KW | 0.67r/min | 2850N.m | 128.5kg | 24500N | 0.90 |
| SF87R57DV71D4 | 1824 | 0.37KW | 0.76r/min | 2530N.m | 128.5kg | 27400N | 1.00 |
| SF87R57DV71D4 | 1631 | 0.37KW | 0.85r/min | 2260N.m | 128.5kg | 28000N | 1.10 |
| SF87R57DV71D4 | 930 | 0.37KW | 1.50r/min | 1340N.m | 128.5kg | 29400N | 1.85 |
| SF87R57DV71D4 | 831 | 0.37KW | 1.70r/min | 1210N.m | 128.5kg | 29500N | 2.10 |
SF87R57DRE80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRE80S4 | 1332 | 0.55KW | 1.00r/min | 2800N.m | 133kg | 25400N | 0.90 |
| SF87R57DRE80S4 | 1191 | 0.55KW | 1.20r/min | 2530N.m | 133kg | 27400N | 1.00 |
| SF87R57DRE80S4 | 1032 | 0.55KW | 1.30r/min | 2200N.m | 133kg | 28100N | 1.15 |
| SF87R57DRE80S4 | 930 | 0.55KW | 1.50r/min | 2030N.m | 133kg | 28400N | 1.25 |
| SF87R57DRE80S4 | 831 | 0.55KW | 1.70r/min | 1840N.m | 133kg | 28700N | 1.35 |
| SF87R57DRE80S4 | 719 | 0.55KW | 1.90r/min | 1600N.m | 133kg | 29000N | 1.55 |
| SF87R57DRE80S4 | 624 | 0.55KW | 2.20r/min | 1390N.m | 133kg | 29300N | 1.80 |
| SF87R57DRE80S4 | 558 | 0.55KW | 2.50r/min | 1260N.m | 133kg | 29400N | 2.00 |
| SF87R57DRE80S4 | 435 | 0.55KW | 3.20r/min | 1010N.m | 133kg | 29700N | 2.40 |
Sf87r57dv71d4 deviatorsType:
S87r57dv71d4 bottom foot installation - slash gearServo motor reducer
Sa87r57dv71d4 sky axes installation - slashed snail snail deviator
Saf87r57dv71d4 is thereducing machine for b5 installation snails
Saz87r57dv71d4 is thereducing machine for the b14 aerocentric axle snail snail
Sf87r57dv71d4 is thereducing machine for the b5 solid core snail
Sh87r57dv71d4 is an empty axle lock-drive installation - a snail brake
Shf87r57dv71d4 is a b5-farland axle locker installation - a snail braker
Shz87r57dv71d4 is a b14 flannel axle locker installation - a sledge snail brake
Sa87/tr57dv71d4 rotation arm hollow axis installation - scalding snails
Sh87/tr57dv71d4 is an axle lock-drive installation for a snail snail brake
Sa87br57dv71d4 foot hollow axis installation -- snail snail snail brakes
Sh87br57dv71d4 foot hollow axle lock-drive installation -- snail brakes snail
St87r57dv71d4 solid axis export rotation arm installation - slashed gear snail stifler

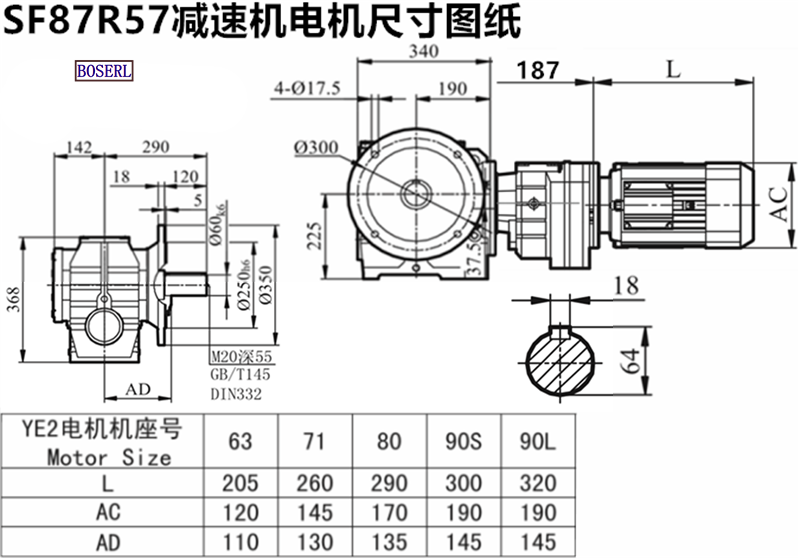

Sf87r57dv71d4 deviatorsInstall size drawings
Sf87r57dv71d4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
