SF87R57DV80M4Detailed Information
Keywords: 2. 3kw for an electric oscillating gear reduction box_sf87r57dv80m4_sf87r57dre90m4
SF87R57DV80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DV80M4 | 1032 | 0.75KW | 1.40r/min | 2940N.m | 134kg | 21700N | 0.85 |
| SF87R57DV80M4 | 930 | 0.75KW | 1.50r/min | 2710N.m | 134kg | 27000N | 0.90 |
| SF87R57DV80M4 | 831 | 0.75KW | 1.70r/min | 2450N.m | 134kg | 27600N | 1 .00 |
| SF87R57DV80M4 | 719 | 0.75KW | 2.00r/min | 2130N.m | 134kg | 28200N | 1.15 |
| SF87R57DV80M4 | 624 | 0.75KW | 2.30r/min | 1860N.m | 134kg | 28700N | 1.35 |
| SF87R57DV80M4 | 558 | 0.75KW | 2.60r/min | 1680N.m | 134kg | 28900N | 1.50 |
| SF87R57DV80M4 | 435 | 0.75KW | 3.30r/min | 1340N.m | 134kg | 29300N | 1.80 |
| SF87R57DV80M4 | 323 | 0.75KW | 4.40r/min | 1030N.m | 134kg | 29700N | 2.30 |
SF87R57DRE90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRE90M4 | 624 | 1.1KW | 2.30r/min | 2800N.m | 138kg | 25500N | 0.90 |
| SF87R57DRE90M4 | 558 | 1.1KW | 2.60r/min | 2530N.m | 138kg | 27400N | 1.00 |
| SF87R57DRE90M4 | 485 | 1.1KW | 2.90r/min | 2230N.m | 138kg | 28000N | 1.10 |
| SF87R57DRE90M4 | 435 | 1.1KW | 3.30r/min | 2030N.m | 138kg | 28400N | 1.20 |
| SF87R57DRE90M4 | 378 | 1.1KW | 3.80r/min | 1780N.m | 138kg | 28800N | 1.35 |
| SF87R57DRE90M4 | 323 | 1.1KW | 4.40r/min | 1550N.m | 138kg | 29100N | 1.55 |
| SF87R57DRE90M4 | 281 | 1.1KW | 5.00r/min | 1360N.m | 138kg | 29300N | 1.75 |
| SF87R57DRE90M4 | 255 | 1.1KW | 5.60r/min | 1450N.m | 138kg | 29200N | 1.35 |
| SF87R57DRE90M4 | 222 | 1.1KW | 6.40r/min | 1270N.m | 138kg | 29400N | 1.55 |
| SF87R57DRE90M4 | 205 | 1.1KW | 6.90r/min | 1190N.m | 138kg | 29500N | 1.65 |
Sf87r57dv80m4 motor deceleratorType:
S87r57dv80m4 foot installation - slash gearServo motor reducer
Sa87r57dv80m4 hollow axle installation - snail snail brake
Saf87r57dv80m4 is thereducing machine for b5 installation snails
Saz87r57dv80m4 is thereducing machine for the b14 aerocentric axle snail snail
Sf87r57dv80m4 is a ff5-silver snail resuscitation
Sh87r57dv80m4 is an empty axle lock-drive installation - a snail-slasher
Shf87r57dv80m4 is a b5 franium axle locker installation - a snail braker
Shz87r57dv80m4 is a b14 flannel axle locker installation - a sledge snail brake
Sa87/tr57dv80m4 rotation arm hollow axis installation -- scalding snails
Sh87/tr57dv80m4 is an axle locker for the twister arm -- a snail braker
Sa87br57dv80m4 foot hollow axis installation -- snail snail brakes
Sh87br57dv80m4 foot hollow axle lock-drive installation - snail brakes
St87r57dv80m4 solid axis export shaft arm installation - slashed gear snail stifler

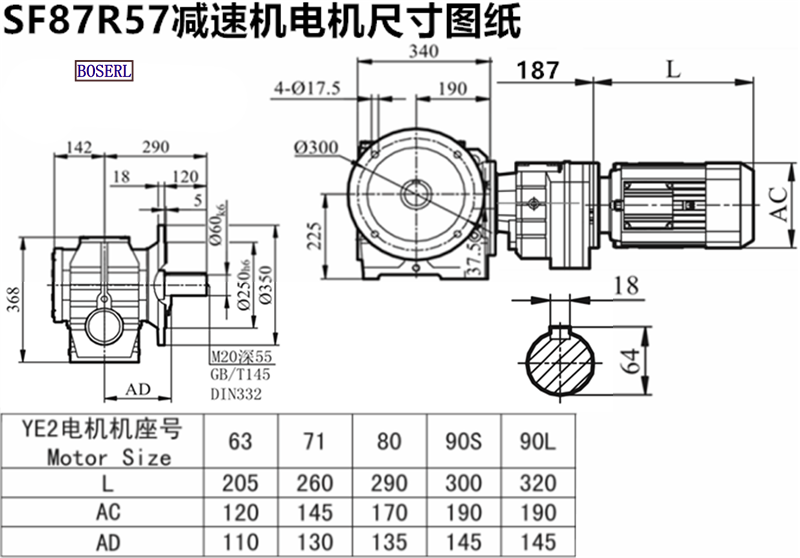

Sf87r57dv80m4 motor deceleratorInstall size drawings
Sf87r57dv80m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
