SF87R57DV80MK4Detailed Information
Keywords: 2. 9kw for an electric slasherbox_sf87r57dv80mk4_sf87r57dre63l4
SF87R57DV80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DV80MK4 | 1332 | 0.55KW | 1.00r/min | 2800N.m | 133kg | 25400N | 0.90 |
| SF87R57DV80MK4 | 1191 | 0.55KW | 1.20r/min | 2530N.m | 133kg | 27400N | 1.00 |
| SF87R57DV80MK4 | 1032 | 0.55KW | 1.30r/min | 2200N.m | 133kg | 28100N | 1.15 |
| SF87R57DV80MK4 | 930 | 0.55KW | 1.50r/min | 2030N.m | 133kg | 28400N | 1.25 |
| SF87R57DV80MK4 | 831 | 0.55KW | 1.70r/min | 1840N.m | 133kg | 28700N | 1.35 |
| SF87R57DV80MK4 | 719 | 0.55KW | 1.90r/min | 1600N.m | 133kg | 29000N | 1.55 |
| SF87R57DV80MK4 | 624 | 0.55KW | 2.20r/min | 1390N.m | 133kg | 29300N | 1.80 |
| SF87R57DV80MK4 | 558 | 0.55KW | 2.50r/min | 1260N.m | 133kg | 29400N | 2.00 |
| SF87R57DV80MK4 | 435 | 0.55KW | 3.20r/min | 1010N.m | 133kg | 29700N | 2.40 |
SF87R57DRE63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRE63L4 | 4606 | 0.18KW | 0.29r/min | 3010N.m | 124kg | 19200N | 0.85 |
| SF87R57DRE63L4 | 3872 | 0.18KW | 0.34r/min | 2510N.m | 124kg | 27500N | 1.00 |
| SF87R57DRE63L4 | 3475 | 0.18KW | 0.38r/min | 2420N.m | 124kg | 27700N | 1.05 |
| SF87R57DRE63L4 | 2905 | 0.18KW | 0.45r/min | 2030N.m | 124kg | 28400N | 1.25 |
| SF87R57DRE63L4 | 2586 | 0.18KW | 0.51r/min | 1760N.m | 124kg | 28800N | 1.40 |
| SF87R57DRE63L4 | 2335 | 0.18KW | 0.57r/min | 1570N.m | 124kg | 29100N | 1.60 |
| SF87R57DRE63L4 | 2054 | 0.18KW | 0.64r/min | 1360N.m | 124kg | 29300N | 1.85 |
| SF87R57DRE63L4 | 1824 | 0.18KW | 0.72r/min | 1200N.m | 124kg | 29500N | 2.10 |
| SF87R57DRE63L4 | 1631 | 0.18KW | 0.81r/min | 1080N.m | 124kg | 29600N | 2.30 |
Sf87r57dv80mk4 deviatorsType:
S87r57dv80mk4 foot installation - slash gearServo motor reducer
Sa87r57dv80mk4 hollow axle installation - snail snail brake
Saf87r57dv80mk4 is thereducing machine for b5 installation snails
Saz87r57dv80mk4 is thereducing machine for the b14 aerocentric axle snail
Sf87r57dv80mk4 is thereducing machine for the b5 solid core snail
Sh87r57dv80mk4 is an empty axle locker installation - a snail-slasher
Shf87r57dv80mk4 is a b5 franium axle locker installation - a snail brake machine
Shz87r57dv80mk4 is a b14 flannel axle locker installation - a sledge snail decelerator
Sa87/tr57dv80mk4 sprain axis installation -- scalding snail brake
Sh87/tr57dv80mk4 is an axle lock lock installation for the twister arm -- a snail braker
Sa87br57dv80mk4 foot hollow axis installation -- snail snail brake
Sh87br57dv80mk4 bottom foot hollow axle locker installation -- snail brake
St87r57dv80mk4 solid axe output twister arm installation - snail brakes

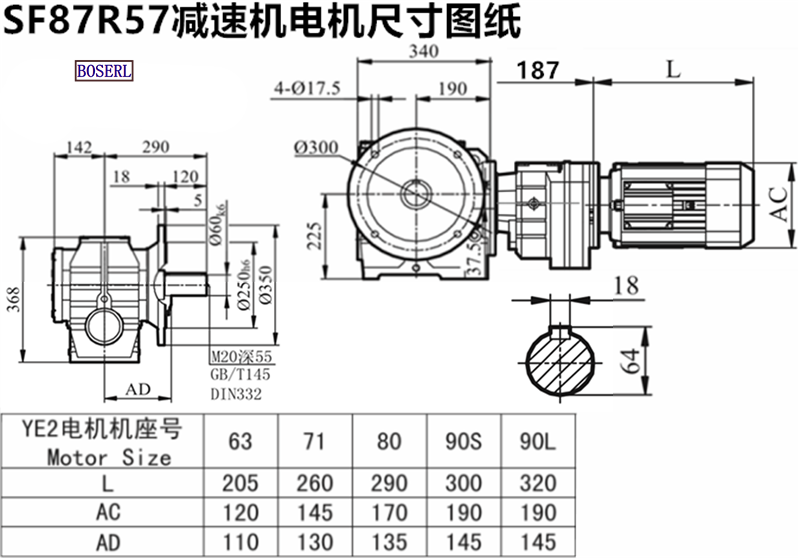

Sf87r57dv80mk4 deviatorsInstall size drawings
Sf87r57dv80mk4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
