SF87R57DV90L4Detailed Information
Keyword: 3kw server slash gearbox_sf87r57dv90l4_sf87r57dre63ms4
SF87R57DV90L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DV90L4 | 485 | 1.5KW | 3.00r/min | 3050N.m | 141kg | 17700N | 0.80 |
| SF87R57DV90L4 | 435 | 1.5KW | 3.30r/min | 2770N.m | 141kg | 26100N | 0.90 |
| SF87R57DV90L4 | 378 | 1.5KW | 3.80r/min | 2440N.m | 141kg | 27600N | 1.00 |
| SF87R57DV90L4 | 323 | 1.5KW | 4.40r/min | 2120N.m | 141kg | 28200N | 1.15 |
| SF87R57DV90L4 | 281 | 1.5KW | 5.10r/min | 1860N.m | 141kg | 28700N | 1.30 |
| SF87R57DV90L4 | 255 | 1.5KW | 5.60r/min | 1990N.m | 141kg | 28400N | 1.00 |
| SF87R57DV90L4 | 222 | 1.5KW | 6.40r/min | 1740N.m | 141kg | 28800N | 1.15 |
| SF87R57DV90L4 | 205 | 1.5KW | 7.00r/min | 1620N.m | 141kg | 29000N | 1.20 |
SF87R57DRE63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRE63MS4 | 6706 | 0.12KW | 0.21r/min | 2690N.m | 123.5kg | 27100N | 0.95 |
| SF87R57DRE63MS4 | 5875 | 0.12KW | 0.23r/min | 2400N.m | 123.5kg | 27700N | 1.05 |
| SF87R57DRE63MS4 | 5187 | 0.12KW | 0.27r/min | 1980N.m | 123.5kg | 28500N | 1.25 |
| SF87R57DRE63MS4 | 4606 | 0.12KW | 0.30r/min | 1760N.m | 123.5kg | 28800N | 1.40 |
| SF87R57DRE63MS4 | 3872 | 0.12KW | 0.36r/min | 1460N.m | 123.5kg | 29200N | 1.70 |
Sf87r57dv90l4 motor deceleratorType:
S87r57dv90l4 foot installation -- slash gearServo motor reducer
Sa87r57dv90l4 hollow axle installation -- scalding machine
Saf87r57dv90l4 is a b5 installation-slash snailreducing machine
Saz87r57dv90l4 is thereducing machine for the b14 aerocentric axle snail
Sf87r57dv90l4 is thereducing machine for the b5 solid core snail
Sh87r57dv90l4 is an empty axle lock-board installation - a snail-slasher
Shf87r57dv90l4 is a b5 franium axle locker installation - a snail braker
Shz87r57dv90l4 is a b14 flannel axle locker installation - a snail snail brake
Sa87/tr57dv90l4 aerocardial axis installation - scalding snails
Sh87/tr57dv90l4 is an axle lock-drive installation for a sledge snail
Sa87br57dv90l4 foot hollow axle installation -- snail snail brakes
Sh87br57dv90l4 foot hollow axle lock-board installation - snail-slash snail brake
St87r57dv90l4 solid axe output twister arm installation -- slough snail brake

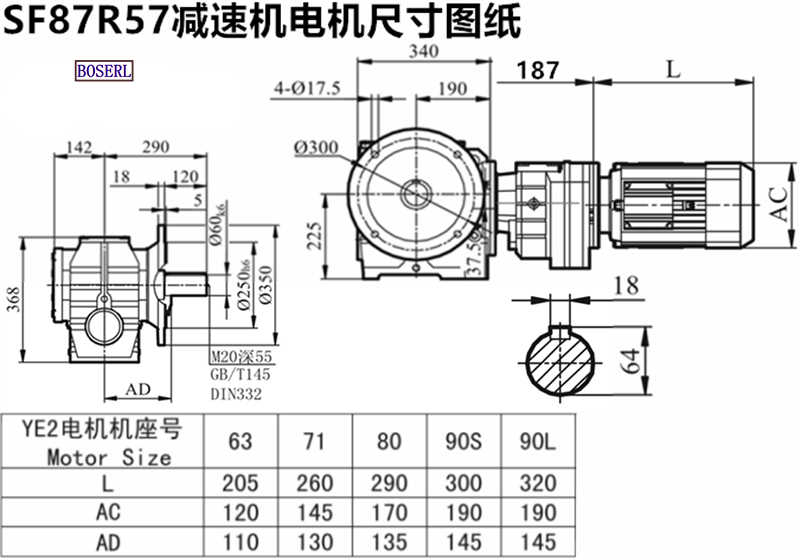

Sf87r57dv90l4 motor deceleratorInstall size drawings
Sf87r57dv90l4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
