SF87R57DV90S4Detailed Information
Keywords: 3. 6 kw to slash gears for electrics _sf87r57dv90s4_sf87r57dre71ms4
SF87R57DV90S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DV90S4 | 624 | 1.1KW | 2.30r/min | 2800N.m | 138kg | 25500N | 0.90 |
| SF87R57DV90S4 | 558 | 1.1KW | 2.60r/min | 2530N.m | 138kg | 27400N | 1.00 |
| SF87R57DV90S4 | 485 | 1.1KW | 2.90r/min | 2230N.m | 138kg | 28000N | 1.10 |
| SF87R57DV90S4 | 435 | 1.1KW | 3.30r/min | 2030N.m | 138kg | 28400N | 1.20 |
| SF87R57DV90S4 | 378 | 1.1KW | 3.80r/min | 1780N.m | 138kg | 28800N | 1.35 |
| SF87R57DV90S4 | 323 | 1.1KW | 4.40r/min | 1550N.m | 138kg | 29100N | 1.55 |
| SF87R57DV90S4 | 281 | 1.1KW | 5.00r/min | 1360N.m | 138kg | 29300N | 1.75 |
| SF87R57DV90S4 | 255 | 1.1KW | 5.60r/min | 1450N.m | 138kg | 29200N | 1.35 |
| SF87R57DV90S4 | 222 | 1.1KW | 6.40r/min | 1270N.m | 138kg | 29400N | 1.55 |
| SF87R57DV90S4 | 205 | 1.1KW | 6.90r/min | 1190N.m | 138kg | 29500N | 1.65 |
SF87R57DRE71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRE71MS4 | 2905 | 0.25KW | 0.45r/min | 2930N.m | 128kg | 22200N | 0.85 |
| SF87R57DRE71MS4 | 2586 | 0.25KW | 0.50r/min | 2560N.m | 128kg | 27400N | 1.00 |
| SF87R57DRE71MS4 | 2335 | 0.25KW | 0.56r/min | 2290N.m | 128kg | 27900N | 1.10 |
| SF87R57DRE71MS4 | 2054 | 0.25KW | 0.63r/min | 1990N.m | 128kg | 28400N | 1.25 |
| SF87R57DRE71MS4 | 1824 | 0.25KW | 0.71r/min | 1770N.m | 128kg | 28800N | 1.40 |
| SF87R57DRE71MS4 | 1631 | 0.25KW | 0.80r/min | 1580N.m | 128kg | 29100N | 1.60 |
| SF87R57DRE71MS4 | 930 | 0.25KW | 1.40r/min | 930N.m | 128kg | 29700N | 2.70 |
Sf87r57dv90s4 motor deceleratorType:
S87r57dv90s4 foot installation - slash gearServo motor reducer
Sa87r57dv90s4 sky axis installation - tilt snail snail deviator
Saf87r57dv90s4 is a b5 installation-slashed snail brake
Saz87r57dv90s4 is thereducing machine for the b14 aerocentric axle snail
Sf87r57dv90s4 is the b5-silver snail deviator
Sh87r57dv90s4 is an empty axle lock-drive installation - a snail brake
Shf87r57dv90s4 is a b5 franium axle locker installation - a snail braker
Shz87r57dv90s4 is a b14 franium axle locker installation - a snail braker
Sa87/tr57dv90s4 aerocardial axis installation - scalding snails
Sh87/tr57dv90s4 is an axle locker for the twister arm -- a sledge snail brake
Sa87br57dv90s4 foot hollow axis installation -- snail snail snail brake machine
Sh87br57dv90s4 bottom foot hollow axle lock-drive installation - snail brakes
St87r57dv90s4 solid axis output twister arm installation -- scald snail brakes

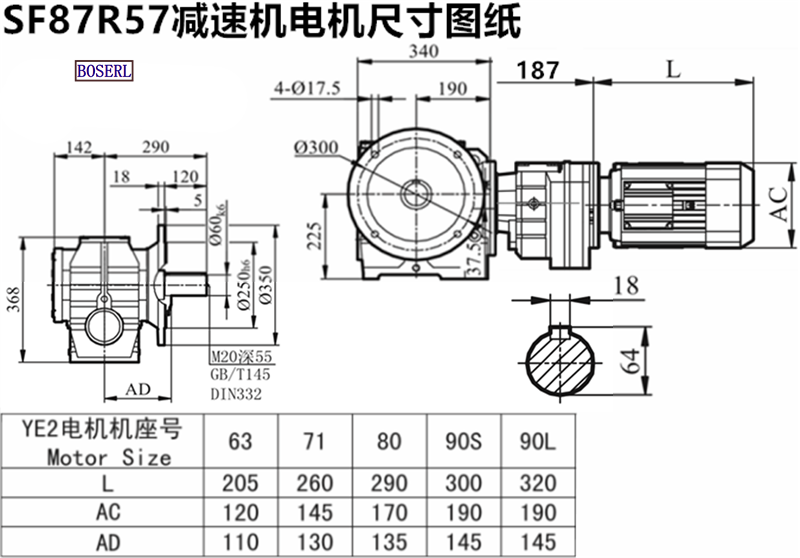

Sf87r57dv90s4 motor deceleratorInstall size drawings
Sf87r57dv90s4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
