SF87R57DVE63M4Detailed Information
Keywords: 9. 2 kw to slasher gear-retarder box_sf87r57dve63m4_sf87r57drn90m4
SF87R57DVE63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DVE63M4 | 6706 | 0.12KW | 0.21r/min | 2690N.m | 123.5kg | 27100N | 0.95 |
| SF87R57DVE63M4 | 5875 | 0.12KW | 0.23r/min | 2400N.m | 123.5kg | 27700N | 1.05 |
| SF87R57DVE63M4 | 5187 | 0.12KW | 0.27r/min | 1980N.m | 123.5kg | 28500N | 1.25 |
| SF87R57DVE63M4 | 4606 | 0.12KW | 0.30r/min | 1760N.m | 123.5kg | 28800N | 1.40 |
| SF87R57DVE63M4 | 3872 | 0.12KW | 0.36r/min | 1460N.m | 123.5kg | 29200N | 1.70 |
SF87R57DRN90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRN90M4 | 624 | 1.1KW | 2.30r/min | 2800N.m | 138kg | 25500N | 0.90 |
| SF87R57DRN90M4 | 558 | 1.1KW | 2.60r/min | 2530N.m | 138kg | 27400N | 1.00 |
| SF87R57DRN90M4 | 485 | 1.1KW | 2.90r/min | 2230N.m | 138kg | 28000N | 1.10 |
| SF87R57DRN90M4 | 435 | 1.1KW | 3.30r/min | 2030N.m | 138kg | 28400N | 1.20 |
| SF87R57DRN90M4 | 378 | 1.1KW | 3.80r/min | 1780N.m | 138kg | 28800N | 1.35 |
| SF87R57DRN90M4 | 323 | 1.1KW | 4.40r/min | 1550N.m | 138kg | 29100N | 1.55 |
| SF87R57DRN90M4 | 281 | 1.1KW | 5.00r/min | 1360N.m | 138kg | 29300N | 1.75 |
| SF87R57DRN90M4 | 255 | 1.1KW | 5.60r/min | 1450N.m | 138kg | 29200N | 1.35 |
| SF87R57DRN90M4 | 222 | 1.1KW | 6.40r/min | 1270N.m | 138kg | 29400N | 1.55 |
| SF87R57DRN90M4 | 205 | 1.1KW | 6.90r/min | 1190N.m | 138kg | 29500N | 1.65 |
Sf87r57dve63m4 motor deceleratorType:
S87r57dve63m4 foot installation - slash gearServo motor reducer
Sa87r57dve63m4 sky axis installation -- snail snail brakes
Saf87r57dve63m4 is thereducing machine for b5 installation snails
Saz87r57dve63m4 is thereducing machine for the b14 aerocentric axle snail
Sf87r57dve63m4 is thereducing machine for the b5 solid core
Sh87r57dve63m4 is an empty axle lockboard installation - a snail brake
Shf87r57dve63m4 is a b5 franium axle lockboard installation - a snail brake
Shz87r57dve63m4 is a b14 franium axle locker installation - a snail snail brake
Sa87/tr57dve63m4 rotation arm hollow axis installation -- snail brakes
Sh87/tr57dve63m4 is an axle locker for the twister arm - a sledge snail brake
Sa87br57dve63m4 foot hollow axis installation -- snail snail brakes
Sh87br57dve63m4 foot hollow axle locker installation -- snail snail brake
St87r57dve63m4 solid axis export twirl arm installation - sorrow snail stifler

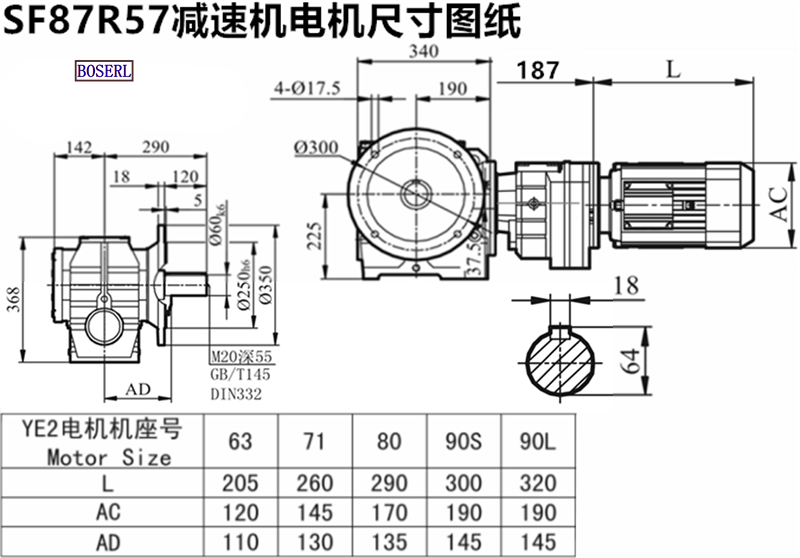

Sf87r57dve63m4 motor deceleratorInstall size drawings
Sf87r57dve63m4 motor deceleratorProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
