SF87R57DVE71MS4Detailed Information
Keywords: 1. 2 kw for an electric oscillating gear reduction box_sf87r57dve71ms4_sf87r57drrn80n4
SF87R57DVE71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DVE71MS4 | 2905 | 0.25KW | 0.45r/min | 2930N.m | 128kg | 22200N | 0.85 |
| SF87R57DVE71MS4 | 2586 | 0.25KW | 0.50r/min | 2560N.m | 128kg | 27400N | 1.00 |
| SF87R57DVE71MS4 | 2335 | 0.25KW | 0.56r/min | 2290N.m | 128kg | 27900N | 1.10 |
| SF87R57DVE71MS4 | 2054 | 0.25KW | 0.63r/min | 1990N.m | 128kg | 28400N | 1.25 |
| SF87R57DVE71MS4 | 1824 | 0.25KW | 0.71r/min | 1770N.m | 128kg | 28800N | 1.40 |
| SF87R57DVE71MS4 | 1631 | 0.25KW | 0.80r/min | 1580N.m | 128kg | 29100N | 1.60 |
| SF87R57DVE71MS4 | 930 | 0.25KW | 1.40r/min | 930N.m | 128kg | 29700N | 2.70 |
SF87R57DRN80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SF87R57DRN80N4 | 1032 | 0.75KW | 1.40r/min | 2940N.m | 134kg | 21700N | 0.85 |
| SF87R57DRN80N4 | 930 | 0.75KW | 1.50r/min | 2710N.m | 134kg | 27000N | 0.90 |
| SF87R57DRN80N4 | 831 | 0.75KW | 1.70r/min | 2450N.m | 134kg | 27600N | 1 .00 |
| SF87R57DRN80N4 | 719 | 0.75KW | 2.00r/min | 2130N.m | 134kg | 28200N | 1.15 |
| SF87R57DRN80N4 | 624 | 0.75KW | 2.30r/min | 1860N.m | 134kg | 28700N | 1.35 |
| SF87R57DRN80N4 | 558 | 0.75KW | 2.60r/min | 1680N.m | 134kg | 28900N | 1.50 |
| SF87R57DRN80N4 | 435 | 0.75KW | 3.30r/min | 1340N.m | 134kg | 29300N | 1.80 |
| SF87R57DRN80N4 | 323 | 0.75KW | 4.40r/min | 1030N.m | 134kg | 29700N | 2.30 |
Sf87r57dve71ms4 deviatorsType:
S87r57dve71ms4 foot installation - slash gearServo motor reducer
Sa87r57dve71ms4 sky axis installation - tilt snail strawling
Saf87r57dve71ms4 is thereducing machine for b5 installation snails
Saz87r57dve71ms4 is a b14 flannel axle installation - a snail brake
Sf87r57dve71ms4 is thereducing machine for the b5 solid core snail
Sh87r57dve71ms4 is an empty axle lock-drive installation - a snail brake
Shf87r57dve71ms4 is a b5 franium axle locker installation - a snail braker
Shz87r57dve71ms4 is a b14 flannel axle locker installation - a sledge snail brake
Sa87/tr57dve71ms4 rotation arm hollow axis installation -- snail snail brake
Sh87/tr57dve71ms4 is an axle lock-drive installation for a sledge snail snail
Sa87br57dve71ms4 foot hollow axis installation -- snail snail brakes
Sh87br57dve71ms4 bottom foot hollow axle locker installation -- snail brakes
St87r57dve71ms4 solid axis output twister arm installation -- scald snail brake

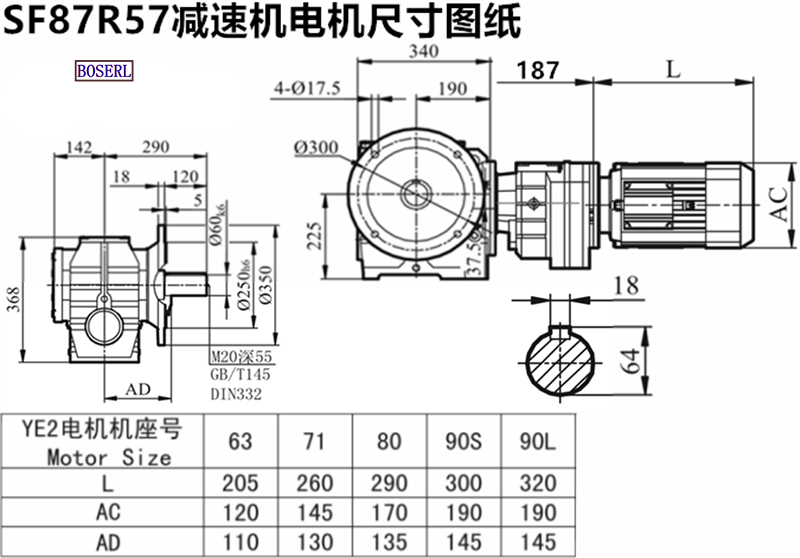

Sf87r57dve71ms4 deviatorsInstall size drawings
Sf87r57dve71ms4 deviatorsProduction plant display: three days' appointment for the factoryGear reducer and gearbox
Gear reducer and gearbox,Vertical gear reducer motor,Gear reduction Geared motor
SF37 gearbox, SF47 gearbox, SF57 gearbox, SF67 gearbox, SF77 gearbox, SF87 gearbox, SF97 Gear Reducer Servo motor reducer
SF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
